Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Aoxiang Ax1600-b3 Fully Automatic 1.6-meter Large Alloy Saw Blade Tooth Grinding Machine

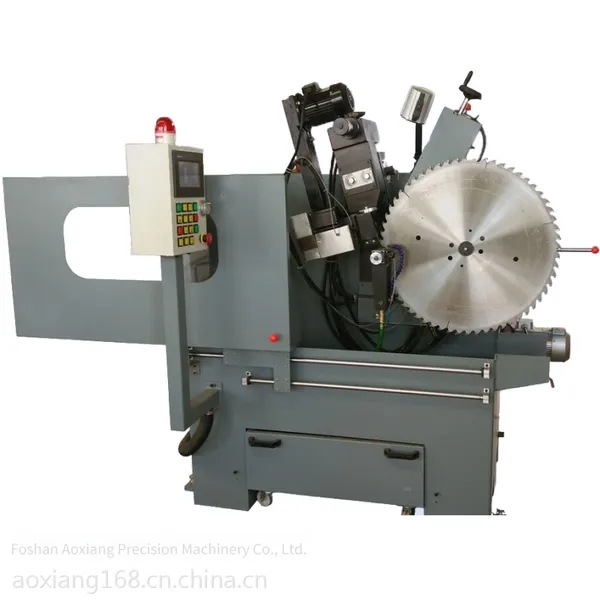

Aoxiang Ax1600-b3 Fully Automatic 1.6-meter Large Alloy Saw Blade Tooth Grinding Machine
US$ 1.54
1 Unit
US$ 1.23
2 - 9 Unit
US$ 0.92
≥10 Unit
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Foshan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Supply of Aoxiang Ax900 - B2, Servo Motor - Controlled, Fully Automatic Alloy Circular Saw Blade Tooth Grinding MachineUS$ 9538.46 - 9692.31MOQ: 1 Unit -
Foshan Aoxiang Ax1600-b3 Fully Automatic Large-scale Carbide Circular Saw Blade Tooth Grinding Machine, Automatic Saw Blade Grinding Machine, Capable of Grinding 1600mm Large Saw BladesUS$ 18153.85 - 21230.77MOQ: 1 Unit
-
Aoxiang Ax900-b3 High-precision and High-stability Fully Automatic Alloy Circular Saw Blade Tooth Grinding MachineUS$ 8153.85 - 8923.08MOQ: 1 Unit
-
Cnc Saw Blade Tooth Grinding Machine, Fully Automatic Carbide Circular Saw Blade Grinding MachineUS$ 8923.08 - 9692.31MOQ: 1 Unit
-
Saw Blade Tooth Grinder Directly Sold by the ManufacturerUS$ 9538.46 - 9692.31MOQ: 1 Unit

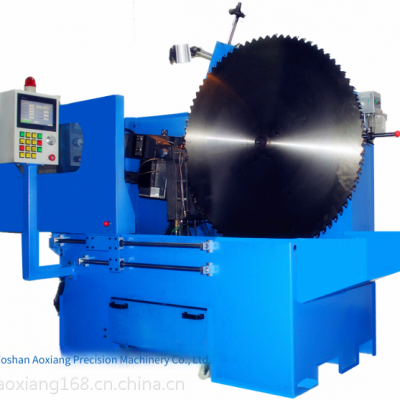

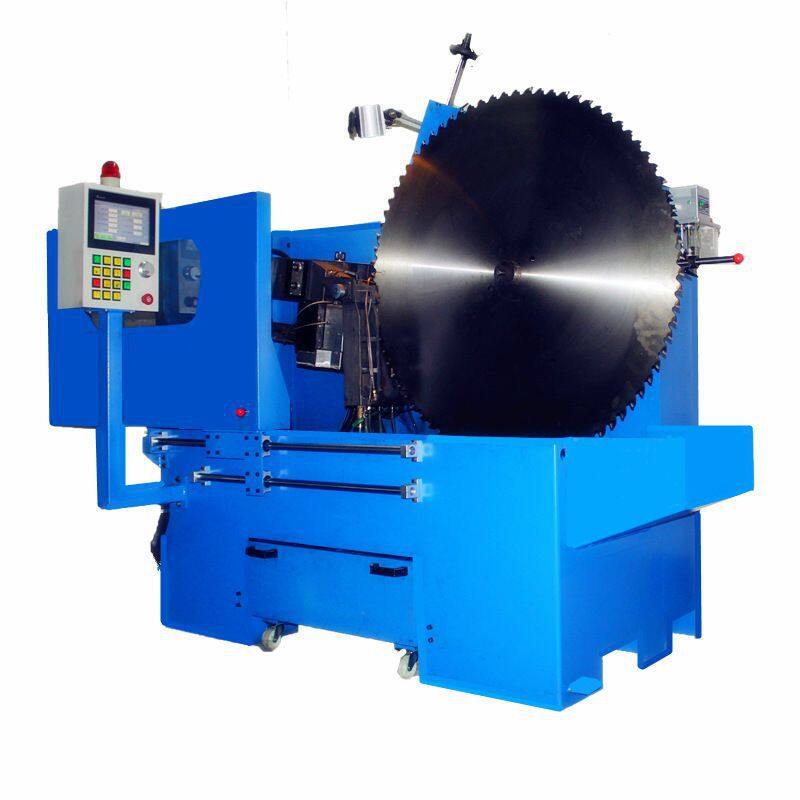

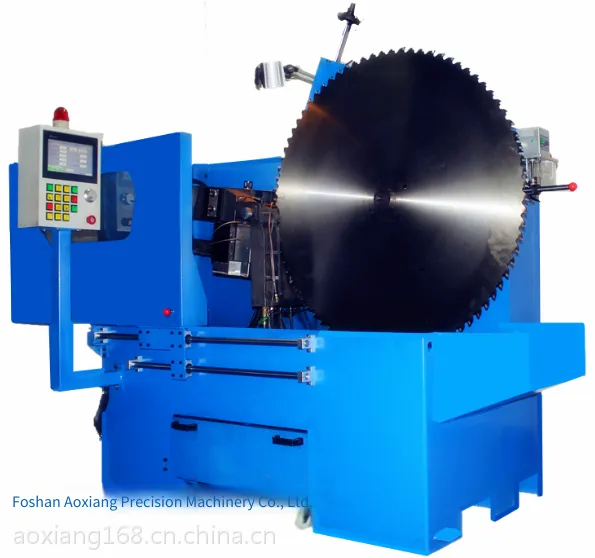

Aoxiang AX1600-B3 fully automatic 1.6-meter large alloy saw blade tooth grinding machine is controlled by PLC and displayed on a color touch screen. It uses a servo motor device with very high precision and stability to control the grinding wheel to grind the saw blade, andis equipped with a grinding wheel wear compensation function, which can perform superimposed compensation according to the grinding needs, making the grinding effect more accurate. This model can grind the front and rear angles of all tooth shapes of alloy circular saw blades with a diameter of φ350 - φ1600mm. It is the best choice for manufacturers that need to grind large saw blades.
| Basic parameters of Aoxiang AX1600-B3 fully automatic alloy circular saw blade tooth grinding machine | |||
| Model | AX1600-B3 | Brand | Aoxiang |
| Type | Alloy circular saw blade grinder | Layout form | Vertical |
| Installation form | Floor-mounted | Object | Alloy circular saw blade |
| Body color | Blue | Machine tool weight | 1200kg |
| Control form | CNC | Grindable tooth shapes | All tooth shapes |
| Processing precision | Precise | Number of teeth for dressing | 999 |
| Overall dimensions | 1380*1770*2280 (mm) | Touch screen size | 10 inches |
| Minimum grinding size | 350mm | Grinding size | 1600mm |
| Main motor power | 1.1kw | Grinding wheel speed | 5200rpm |
