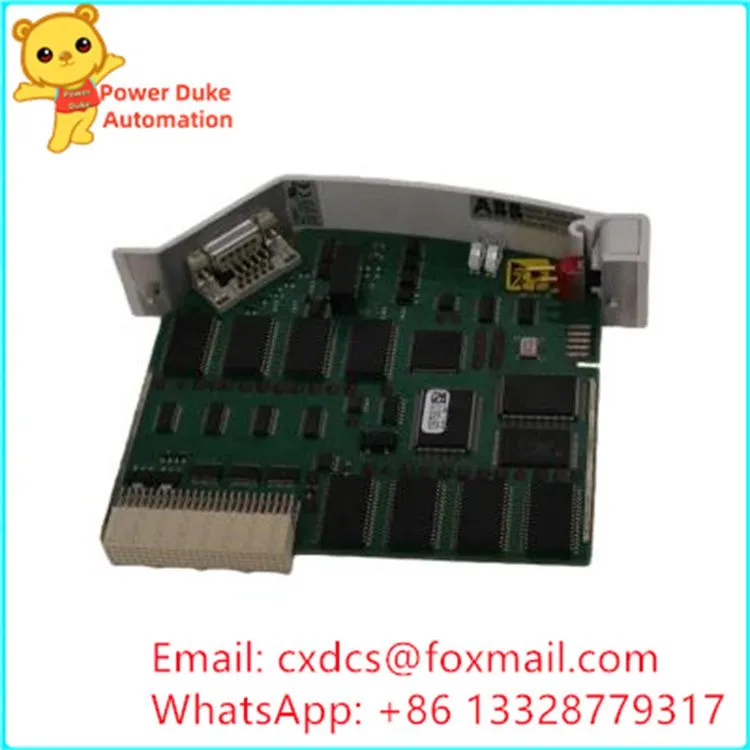

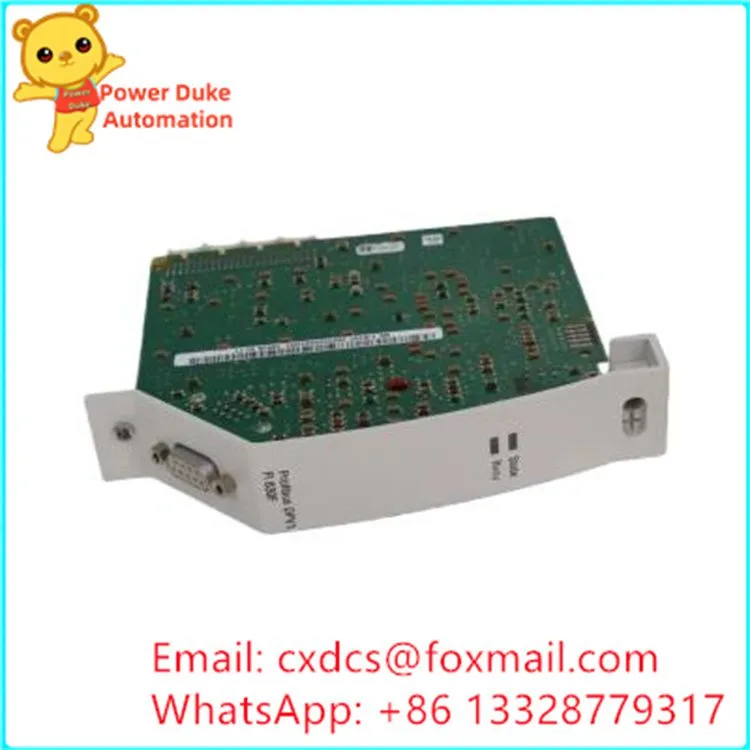

Help CenterABB FI830F 3BDH000032R1 The Core Module of Bus Communication
Related Products
-
ABB 5SHY3545L0009 + GVC750BE101 (3BHE009681R0101) Complete IGCT Power ModuleUS$ 5000MOQ: 1 Unit -
ABB 5SHY3545L0010 3BHB013088R0001 IGCT Complete Power ModuleUS$ 5000MOQ: 1 Unit
-
ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 IGCT Drive Control BoardUS$ 10000MOQ: 1 Unit
-
ABB SUE3000 1VCF750090R0804 Factory Power Supply High-Speed Circuit Breaker for Rapid SwitchingUS$ 1000MOQ: 1 Unit
-
ABB G2000A5.7ST Industrial Human-Machine Interface (HMI Operation Panel)US$ 1000MOQ: 1 Unit
Key Features
PROFIBUS DP master interface – Provides deterministic RS‑485 fieldbus communication to standard PROFIBUS DP devices; ideal for drives, remote I/O, and MCC integration.
Tight Freelance integration – Engineering, commissioning and diagnostics are handled in the ABB Freelance environment, which typically reduces setup time.
Robust industrial design – Designed for cabinet installations with proper shielding/grounding; seems to be quite tolerant to electrical noise when cabling is done right.
Diagnostic transparency – Status and fault information are exposed to the controller, helping maintenance teams find bus issues faster in many cases.
Scalable architecture – Works as a modular expansion to the AC 800F, so you can add or replace communication capability without disturbing the controller base.
Redundancy-ready setups – Often used in redundant controller configurations to improve availability for critical processes.
Technical Specifications
| Brand / Model | ABB FI830F (Order Code: 3BDH000032R1) |
| HS Code | 8538.90 (Parts suitable for use with industrial control apparatus) |
| Power Requirements | 24 V DC via AC 800F backplane; typical consumption ≤ 5 W (application dependent) |
| Dimensions & Weight | Standard AC 800F plug‑in module form factor; compact, lightweight module (typical weight ~0.2 kg) |
| Operating Temperature | 0 to +55 °C (typical control cabinet environment) |
| Signal Input/Output Types | PROFIBUS DP master over RS‑485; supports cyclic I/O data exchange with standard DP slaves |
| Communication Interfaces | PROFIBUS DP (9‑pin D‑Sub or terminal depending on base), typical baud rates 9.6 kbit/s to 12 Mbit/s; diagnostics via controller |
| Installation Method | Mounted on AC 800F system base/terminal unit; installed in a ventilated control cabinet on DIN rail |
| System Compatibility | ABB Freelance AC 800F systems |
Application Fields
Typically selected in process and hybrid industries where PROFIBUS DP remains the installed base. I’ve seen it used in:
Chemicals and petrochemicals – Drive control, remote I/O marshaling, MCC integration
Oil & gas – Compressor skids, metering panels, and brownfield tie-ins
Water & wastewater – VFDs, blowers, pump stations on DP segments
Power & utilities – Boiler auxiliaries, ash handling, balance-of-plant
Pharma and food – Packaging lines and utility systems where deterministic bus performance matters
A maintenance lead from a European plant told us the FI830F “just slotted into our existing PROFIBUS topology; we swapped a failed interface and were back online in under an hour.” That’s the sort of downtime saving many teams are aiming for.
