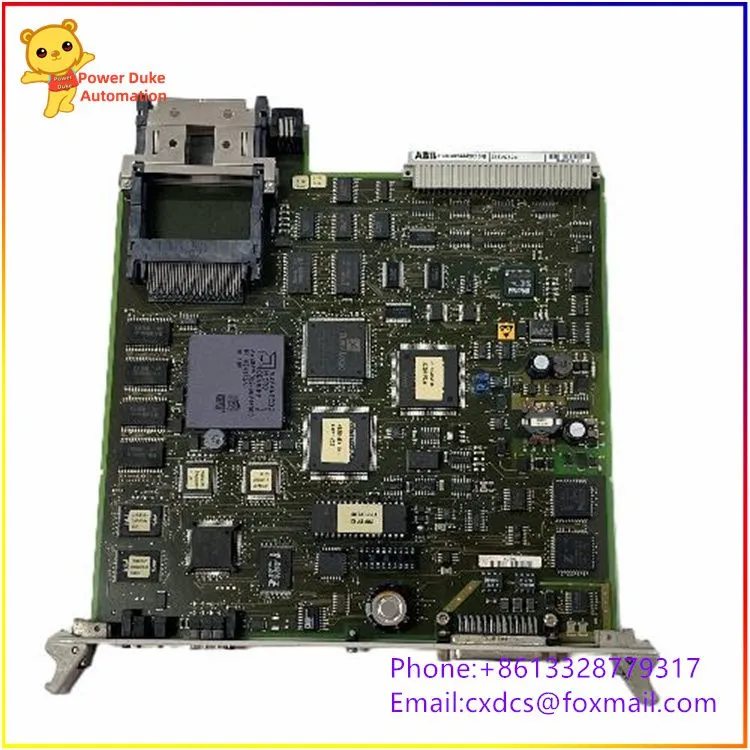

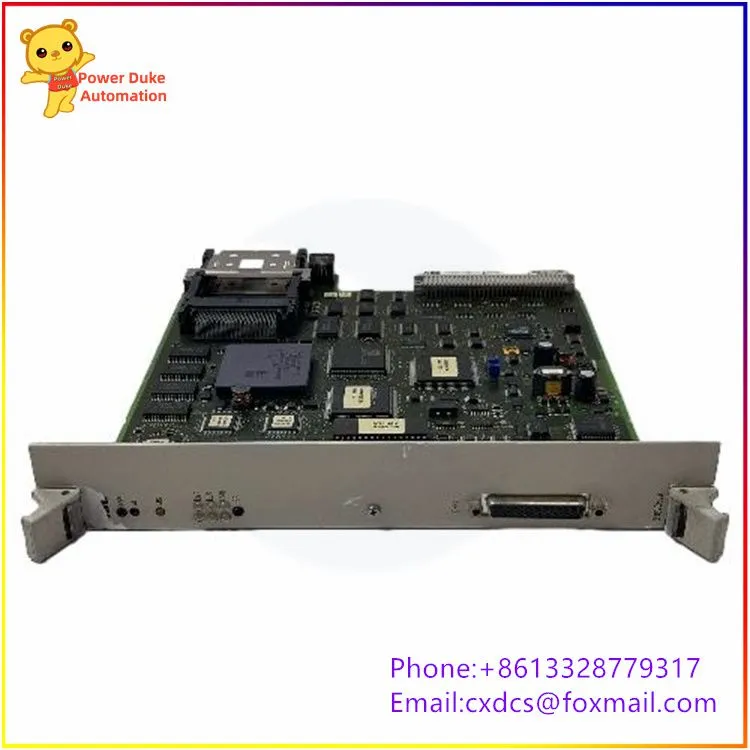

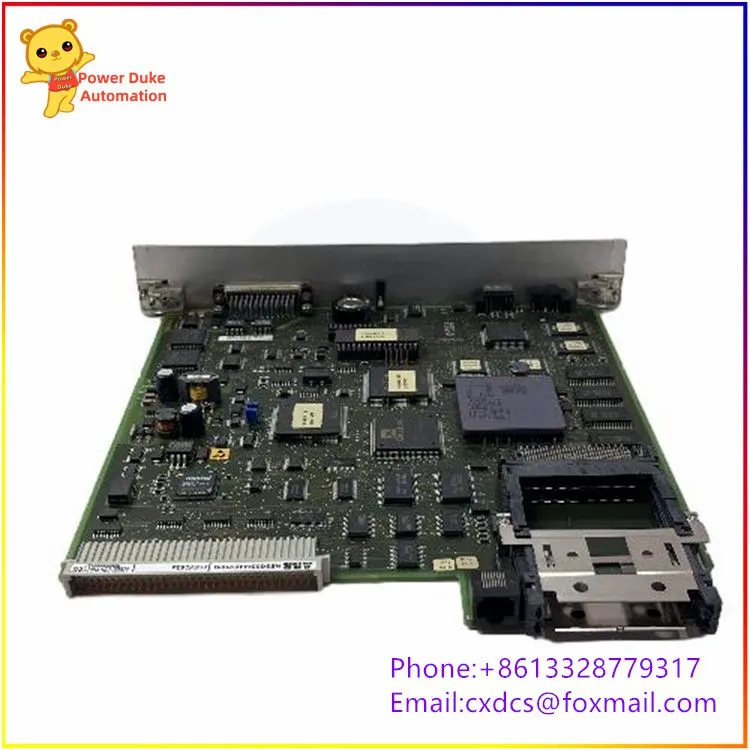

ABB 216VC62a-P1000 Signal Digital Processor Module
Original part number: HESG324442R112
Series: ABB Procontrol 216 series, mainly used for power plant generator protection, excitation control systems, and signal acquisition and logic processing units of Symphony DCS system
I. Basic Product Information Table
Project Parameter Details
Full Model Name 216VC62a-P1000
Order Code HESG324442R112
Equipment Type Signal Digital Processing Unit (DSP Processor Card)
Power Supply Specifications DC 18-56V, rated DC 24V
Installation Method Rack-mounted VME bus plug-in installation, supports hot-swappable power-on
Protection Grade IP20 (only for use in control cabinet)
PCB Coating Industrial three-proof coating, moisture-proof, dust-proof, salt-spray corrosion-resistant
Core Hardware Functions
Multi-type Field Signal Acquisition and Processing
Compatible with 4-20mA, 0-10V analog signals, switch signals, pulse signals, frequency signals; can collect sensor signals such as CT/PT current voltage, temperature, pressure, speed, vibration, etc., with built-in programmable signal conditioning, multi-level digital filtering to suppress on-site frequency interference, grounding loop noise.
High-speed Real-time Computing Processing
Equipped with 32-bit embedded processor, capable of completing PID closed-loop regulation, power calculation, protection logic operation, fault judgment, SOE event timing recording, single-channel sampling period shortest 4ms, software filtering time 0-1024ms adjustable.
System Bus Communication Interaction
Through ABB dedicated B448C backplane bus for high-speed data interaction with the main control unit and other I/O cards; equipped with RS485 communication interface, supports Modbus RTU protocol, can be connected to DCS, upper-level monitoring system to upload measurement points, alarms, fault information.
Power Failure Data Protection
Built-in super capacitor, can save fault events, operating parameters, program configuration for a short time after power failure, preventing key operation logs from being lost.
Key Electrical Technical Parameters
Signal Acquisition Specifications
Analog Signals: 4-20mA, 0-5V, 0-10V, ±10V
Acquisition Accuracy: Normal temperature ±0.1% FS, wide temperature condition ±0.2% FS
Channel Isolation: Single-channel optocoupler isolation, isolation withstand voltage 2500V AC, channel-to-channel mutual isolation anti-interference Environmental parameters
Operating temperature: -25℃ to +70℃
Storage temperature: -40℃ to +85℃
Relative humidity: 5% to 95% RH, without condensation
Electromagnetic compatibility: Compliant with IEC 61000 industrial EMC standards, suitable for power plants and chemical plants with strong electromagnetic fields
Typical application scenarios
REG216 series generator integrated protection system for thermal power and hydropower plants, realizing protection logic operations and trip command outputs for overcurrent, overvoltage, reverse power, and loss of excitation.
Excitation control system for power generation units, collecting terminal voltage, stator current, reactive power, and completing closed-loop operations for voltage regulation and reactive power equalization.
Signal acquisition, process parameter monitoring, and interlock protection control for large rotating equipment such as fans, compressors, and water pumps.
Analog quantity preprocessing, remote I/O signal centralized processing, and local intelligent acquisition unit of Symphony Plus DCS system.
Maintenance and replacement precautions
This module is often redundantly configured. Before replacement, it is essential to confirm that the redundant channels are normal to avoid protection malfunctions and unit mis-tripping.
The hardware model and firmware version of spare parts must be consistent with the original card. Inconsistent versions may result in bus communication failure and abnormal channel acquisition.
Shielded twisted-pair cables must be used for analog quantities and communication cables, with the shielding layer grounded at one end of the cabinet to prevent signal drift and data jumps.
After replacement, download the hardware configuration, protection set values, and signal range parameters through Control Builder M software, and verify the channel accuracy and communication status.
Common faults: Channel acquisition drift, communication interruption, fault alarm red light, power loss parameter loss, protection logic mis-trigger.
