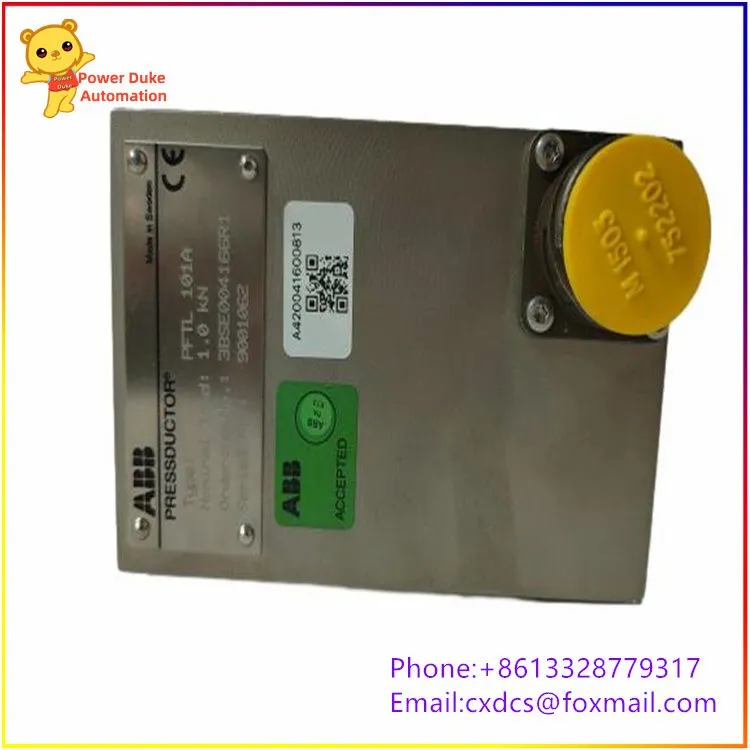

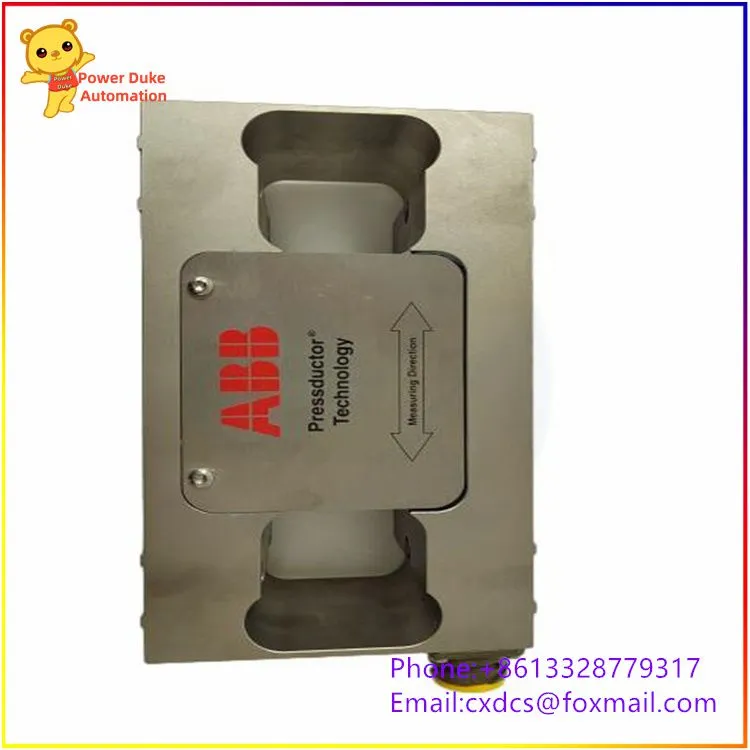

ABB PFTL101A 1.0KN Tension Sensor (Order Number: 3BSE004166R1)
I. Basic Information
Product Series: PFTL101A Cantilever Tension Load Cell (Magnetic Pressure Tension Sensor)
Range: 1.0 kN (100 Newton Force)
Material Number: 3BSE004166R1
Application Scenarios: Papermaking, film, non-woven fabric, cable, printing, metal strip and other roll material production lines, used to real-time detect the tension of the roll material, and cooperate with ABB tension control system to achieve constant tension closed-loop control
Core Technical Parameters
Range Parameters
Rated Load: 1.0 kN
Overload Capacity: 150% FS; Ultimate Breaking Load: 300% FS
Accuracy Grade: ±0.5% FS
Electrical Parameters
Excitation Voltage: AC 15V 50/60Hz (Must be paired with ABB PFE101 Tension Transmitter for power supply, not DC power supply)
Output Signal: Millivolt-level AC Differential Signal, directly connected to the Tension Transmitter for signal amplification processing
Input Impedance: Approximately 300Ω
Environment and Protection
Protection Grade: IP65, suitable for humid and dusty workshop environments
Operating Temperature: -10℃ ～ +70℃
Temperature Drift: ≤0.02% FS/℃
III. Structure and Installation Features
Installation Form: Cantilever Fixed Installation, Single-side Support, Both ends of the roller can be installed singly or in pairs
Material: Stainless Steel Shell, corrosion-resistant, impact-resistant, suitable for industrial harsh conditions
It belongs to the magnetic pressure force measurement principle, without the problem of fatigue and aging of strain gauges, the stability is better than ordinary strain-type sensors, and the service life is long
When used in pairs, it can cancel the measurement error caused by lateral force and uneven load, and is the most commonly used configuration in the roll tension system
Accessories and Equipment
PFE101 Tension Transmitter (Signal Amplification, Power Supply, 4-20mA Output)
ABB TensionMaster Tension Control System
Can be connected to PLC systems such as AC800M, AC450 for constant tension closed-loop regulation
Common Range Comparison of the Same Series
PFTL101A 0.5KN: 3BSE004165R1
PFTL101A 1.0KN: 3BSE004166R1 (This Model)
PFTL101A 2.0KN: 3BSE004167R1
PFTL101A 3.0KN: 3BSE004168R1
