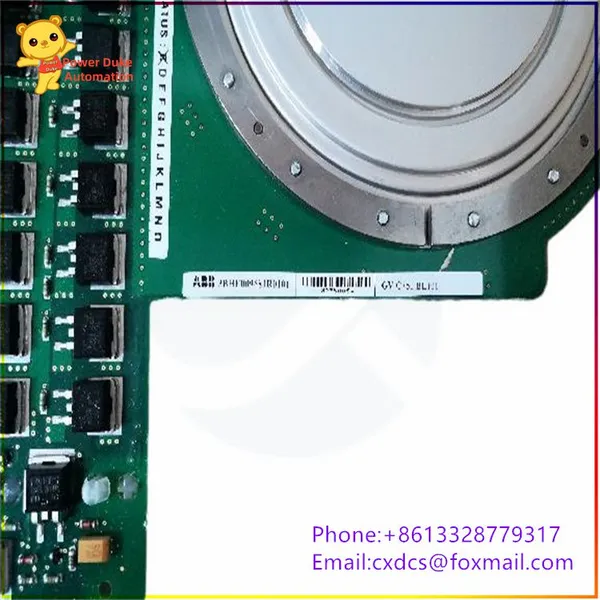

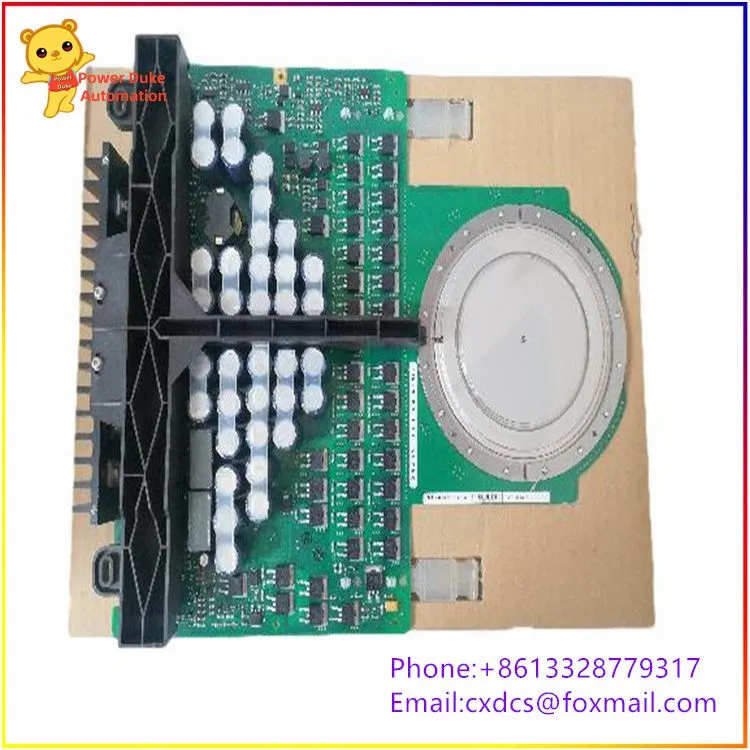

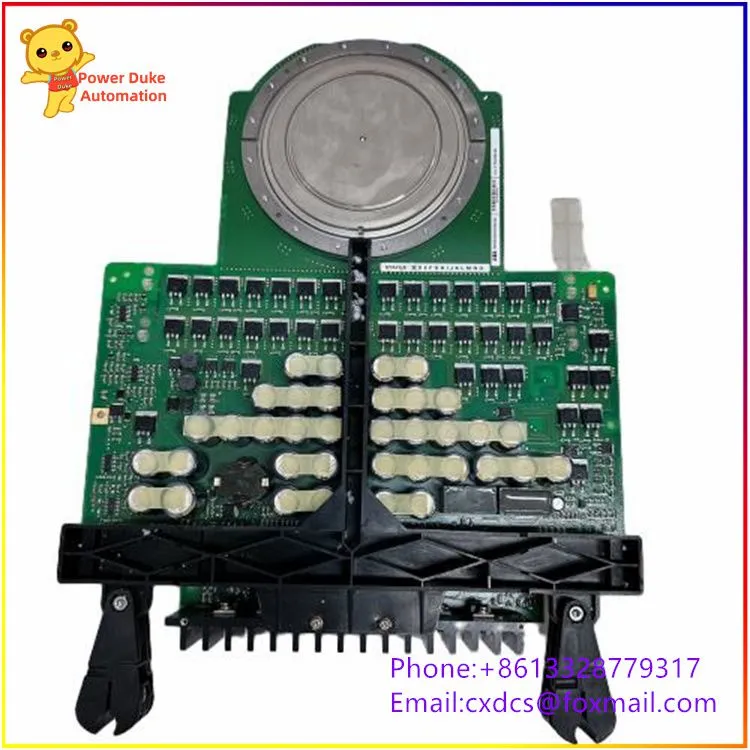

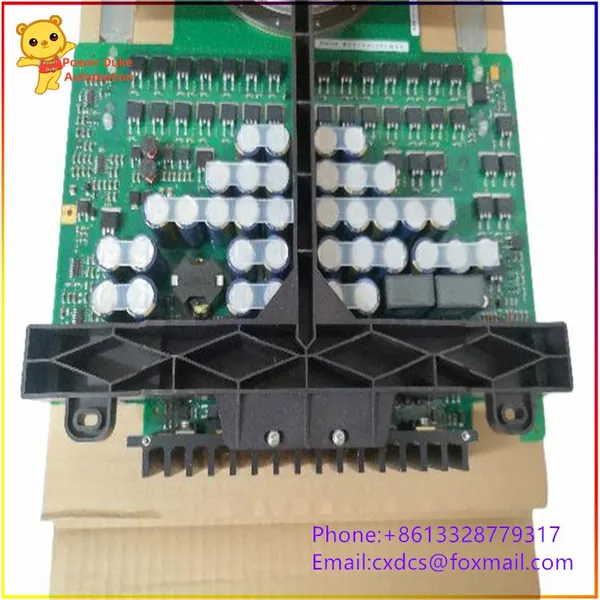

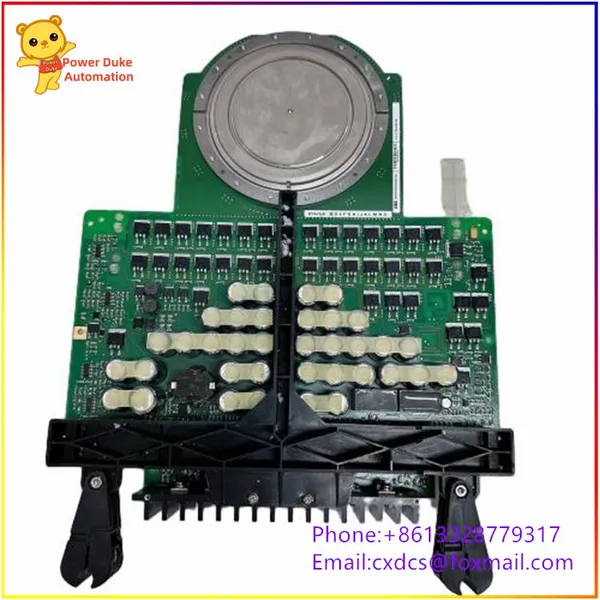

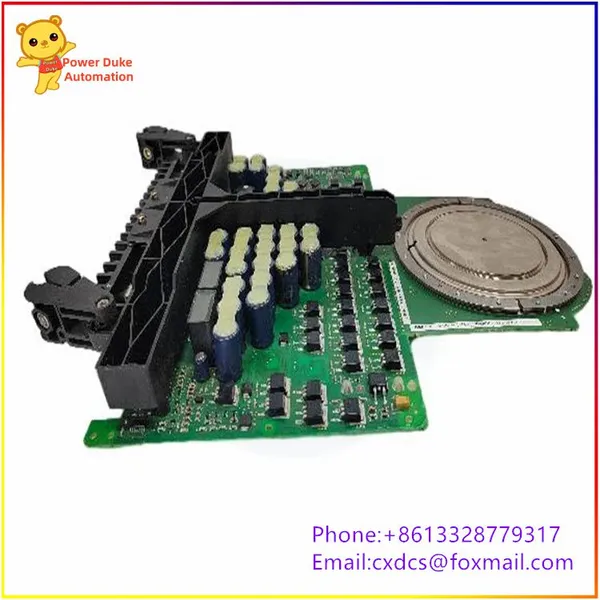

Help CenterABB 5SHY3545L0010 3BHB013088R0001 IGCT Complete Power Module
Product Spotlights
Related Products
-
ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 IGCT Drive Control BoardUS$ 10000MOQ: 1 Unit -
ABB SUE3000 1VCF750090R0804 Factory Power Supply High-Speed Circuit Breaker for Rapid SwitchingUS$ 1000MOQ: 1 Unit
-
ABB G2000A5.7ST Industrial Human-Machine Interface (HMI Operation Panel)US$ 1000MOQ: 1 Unit
-
ABB PFTL101A 1.0KN 3BSE004166R1 Tension Load CellUS$ 1000MOQ: 1 Unit
-
ABB PFTL101A 2.0KN 3BSE004172R1 Tension SensorUS$ 10000MOQ: 1 Unit
I. Model Correspondence Explanation
5SHY3545L0010: 4500V Asymmetric Press-fit Type IGCT Power Device 3BHB013088R0001: This IGCT is paired with a dedicated gate drive control board. They are used in one-to-one correspondence and are commonly employed in the ABB ACS6000 medium-voltage frequency converter's active rectifier unit (ARU).
Core Electrical Parameters of 5SHY3545L0010
Rated Breakdown Voltage: 4500V (4.5kV)
Rated DC Current: 3500A
Peak Switchable Current: 6000A
Package Form: Double-sided Water-cooled Press-fit Package
Operating Junction Temperature: -40℃ ~ +125℃
Conventional Working Switching Frequency: ≤1kHz
Built-in Integrated Rectifier Diode, suitable for medium-voltage high-power four-quadrant drive systems
Gate Driver Board Parameters of 3BHB013088R0001
Function: Fiber Optic Transceiver Driving, Precise Control of IGCT On/Off, Overcurrent, Undervoltage, Gate Short Circuit, Overtemperature Fault Detection and Status Feedback
Signal Transmission: Strong and Weak Electrical Fiber Isolation, Anti-High Voltage Interference, Suitable for Series Valve Group Applications
Power Supply Method: Derived from System GUSP Gate Power Supply
Equipped with Fault Locking, Fault Indicator Light Status Display, Supports Multi-Diode Series Current Sharing Control
Protection Grade: Only for Installation in Control Cabinet (IP20)
Typical Application Scenarios
ABB ACS6000 Series 6kV/6.9kV Medium-Voltage Frequency Converter Active Rectifier ARU Unit
Mine Main Fans, Belt Conveyors, Steel Rolling, Cement High-Power High-Voltage Frequency Drive Systems
Wind Power, Photovoltaic High-Voltage Grid-Connected Converter, STATCOM Dynamic Reactive Power Compensation Device
Ship Power Propulsion, Metallurgical High-Power Frequency Speed Regulation, High-Voltage DC Converter Equipment
Differences of the Same Series Models (Compared with the 5SHY3545L0009 You Previously Queryed)
5SHY3545L0009: Matching Driver Board 3BHE009681R0101 (GVC750BE101), Mostly Used in Inverter Power Units
5SHY3545L0010: Matching Driver Board 3BHB013088R0001, Mostly Used in Active Rectifier ARU Units, The Driver Boards of the Two Cannot Be Directly Interchanged
