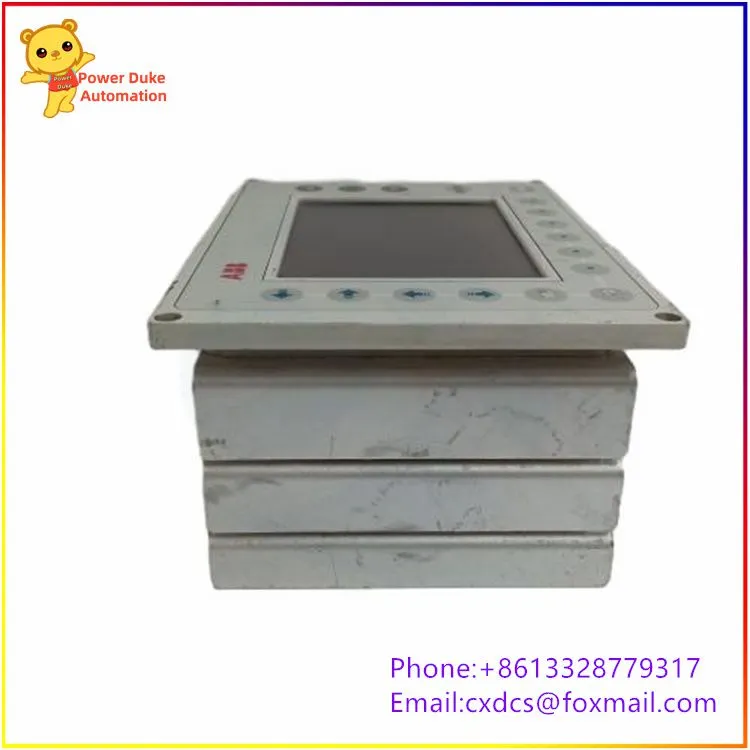

Help CenterABB G2000A5.7ST Industrial Human-Machine Interface (HMI Operation Panel)
Product Spotlights
Related Products
-
ABB PFTL101A 1.0KN 3BSE004166R1 Tension Load CellUS$ 1000MOQ: 1 Unit -
ABB PFTL101A 2.0KN 3BSE004172R1 Tension SensorUS$ 10000MOQ: 1 Unit
-
ABB XUD194 3BHE018137R0001 (AC800PEC Series High-speed Analog Quantity Acquisition Board)US$ 1000MOQ: 1 Unit
-
ABB 216VC62a-P1000 HESG324442R112 Signal Digital Processor ModuleUS$ 10000MOQ: 1 Unit
-
ABB 3BHB006716R0217 (Model: SYN5302A-Z) Dual Redundancy Automatic Synchronization DeviceUS$ 1000MOQ: 1 Unit
I. Basic Product Information
Brand: ABB (GENERA Series)
Model Meaning: G2000 Series, 5.7 inches, Resistive Touchscreen Type (ST=Screen Touch)
Product Type: Embedded Industrial Graphical Operating Touchscreen (Old model discontinued industrial control HMI)
Power Supply Specifications: DC 24~48V wide voltage direct current power supply, typical power consumption ≤ 15W
Core Hardware Parameters

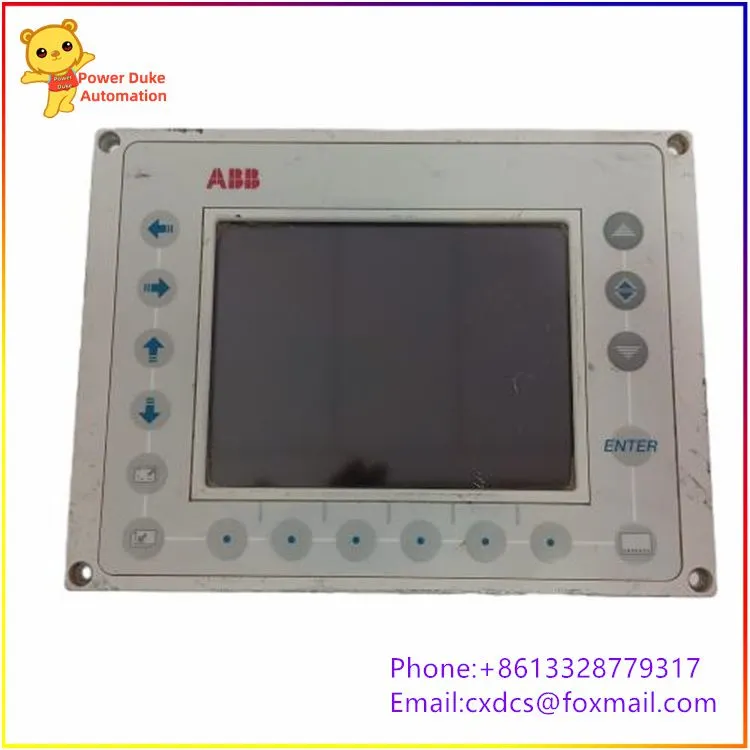

Display Configuration
Screen: 5.7-inch TFT color LCD screen
Resolution: 320×240
Operation Mode: Resistive Touchscreen + Side Physical Function Keys, supports industrial glove operation
Protection Grade: Front panel surface IP65 (dust and water resistance), back interface IP20 (used in control cabinet)

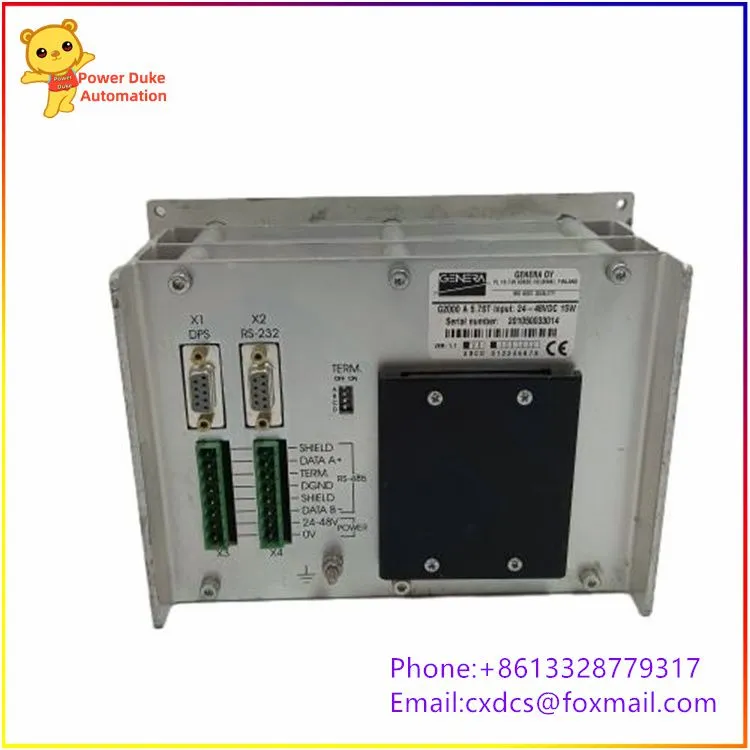

Communication Interface (Back Standard)
RS232, RS485 (MODBUS RTU)
Support Profibus DP industrial bus, communication rate 9.6k~12Mbps
Can be connected to ABB frequency converter, excitation system, PLC, DCS control system
Hardware Storage and Performance
32-bit industrial processor, 128MB memory + 64MB flash memory
Support historical alarms, trend curves, fault data storage, and program backup via SD card
Operating Temperature: 0℃~+50℃; Storage Temperature: -20℃~+60℃
Main Functions
Real-time equipment data monitoring, operation parameter modification, start/stop operation
Fault alarm pop-up, event recording, trend curve viewing
Compatible with ABB transmission, generator excitation, gas turbine, power plant auxiliary control system local operation
Multi-protocol connection to upper-level monitoring, PLC, medium-voltage frequency converter device, supports redundant bus networking
Typical Application Scenarios
Local operation terminal for generator excitation control system in thermal power plants and hydropower plants
Local monitoring panel for high-power medium-voltage frequency converters, rolling mills, mining transmission equipment
Human-machine operation interface for gas turbines, industrial steam turbines control systems
DCS field operation station in metallurgy, chemical industry, cement, sewage treatment
