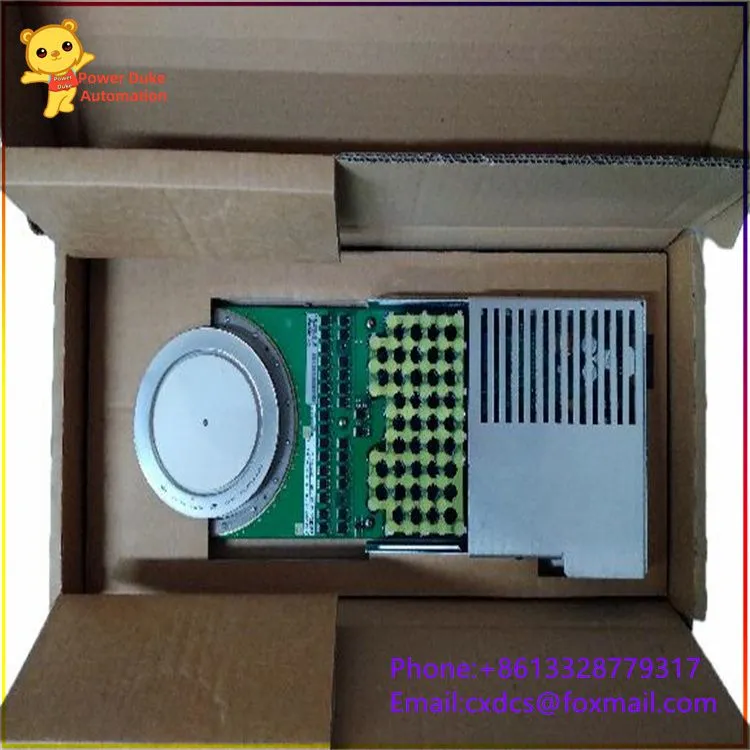

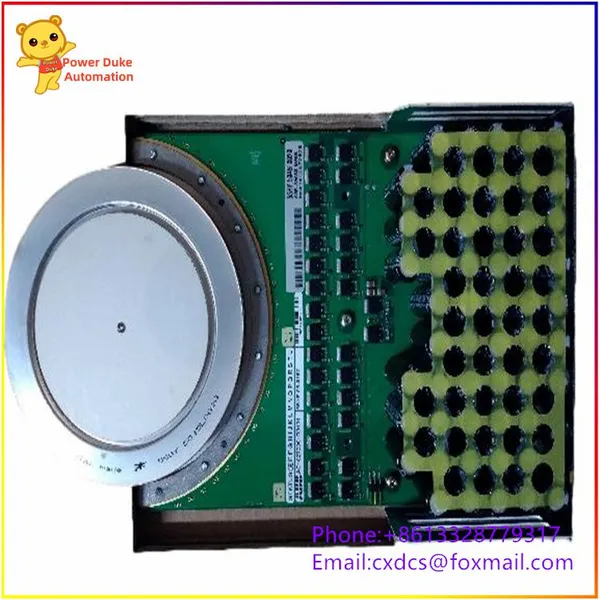

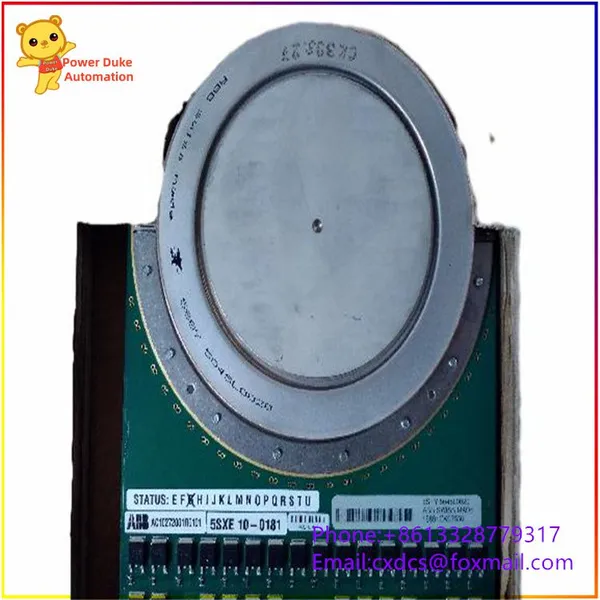

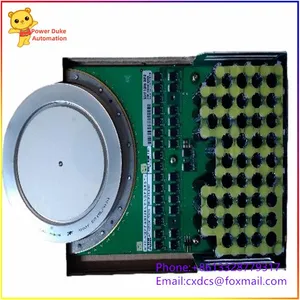

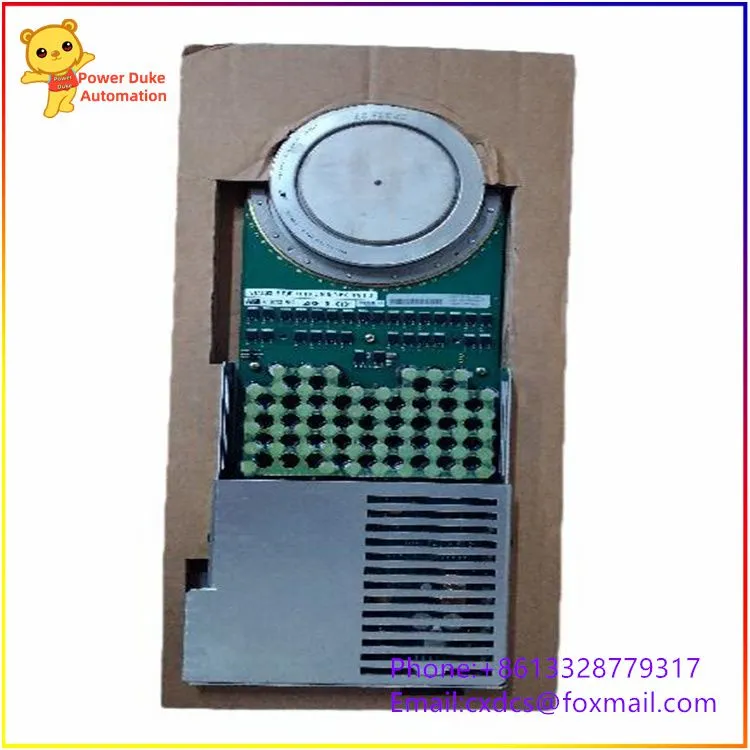

I. Model Correspondence Explanation 5SHY35L4520: ABB asymmetric compression type IGCT power chip, an upgraded model of the 5SHY series, compatible for replacement of the old model 5SHY35L4510
5SXE10-0181: Exclusive Gate Drive Control Board for IGCT
AC10272001R0101: The official material order code for this drive board. It is the same hardware as 5SXE10-0181 and is one-to-one matched with this IGCT. It cannot be used with other series drive boards.
Core Electrical Parameters of 5SHY35L4520
Device Type: Asymmetric Integrated Gate Commutating Thyristor (AS-IGCT), with built-in integrated current-sharing diode
Rated Breakdown Voltage: 4500V (4.5kV)
Rated Direct Current Operating Current: 3500A, Peak Switching Current 6000A
Cooling Method: Double-sided water-cooled press-fit packaging (hockey-puck disc type), recommended deionized cooling water flow rate 8~12L/min
Operating Junction Temperature: -40℃ ~ +125℃
Standard Switching Frequency: ≤1kHz, suitable for high-power medium-voltage drives and reactive power compensation scenarios
Dimensions: 439×173×41mm, Net Weight 2.9kg
Advantages: No buffer circuit required, Low switching loss, Excellent parallel voltage sharing performance

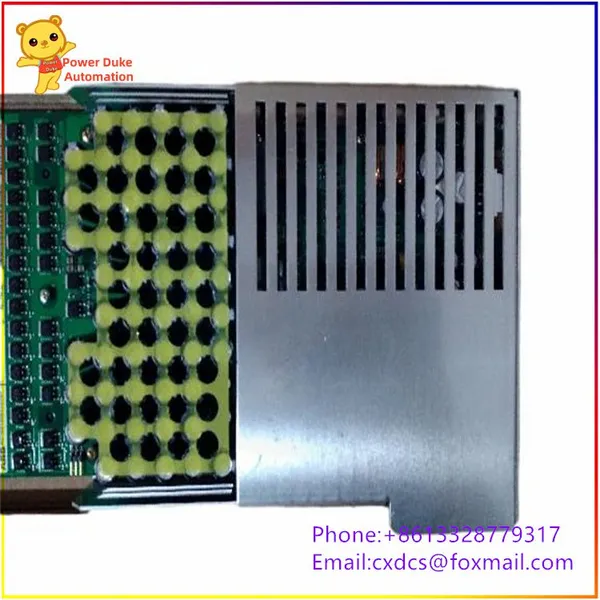

Parameters of 5SXE10-0181 (AC10272001R0101) Gate Drive Board
Core Function: Fiber optic transmission and reception control, IGCT activation / deactivation drive, Gate short circuit, Undervoltage, Overtemperature, Device fault detection, Fault retention and status feedback
Signal Isolation: Full fiber optic strong and weak current isolation, resistant to high-voltage electromagnetic interference, suitable for multi-device series-connected valve groups
Power Supply Method: Derived from the dedicated isolation power supply for the converter
Equipped with a fault indicator light, enabling quick location of drive fiber optic abnormalities, power supply abnormalities, and IGCT body damage faults
Protection Grade: IP20, Limited to installation within the control cabinet
Typical Application Scenarios
ABB ACS6000 series 6kV/6.9kV high-power medium-voltage frequency converters (mine main fans, belt conveyors, steel rolling, cement compressors)
STATCOM static synchronous compensator, SVC dynamic reactive power compensation device
Wind power high-voltage converter, ship power propulsion converter, metallurgical high-power four-quadrant drive system
High-voltage direct current transmission converter valve, high-power industrial UPS power equipment
Key Points for Replacement of Series Models
5SHY35L4520 is the upgraded replacement model of 5SHY35L4510. The hardware installation dimensions are completely consistent, and it can be directly compatible and replaced
It is necessary to use the original **5SXE10-0181 (AC10272001R0101)** drive board, and other models such as GVC750BE101, 3BHB013088R0001 cannot be mixed
When replacing, it is necessary to check the water cooling sealing gasket, contact surface flatness, clean the fiber optic end face, and strictly prohibit bending the fiber optic at a small radius and staining the end face with oil, dust
