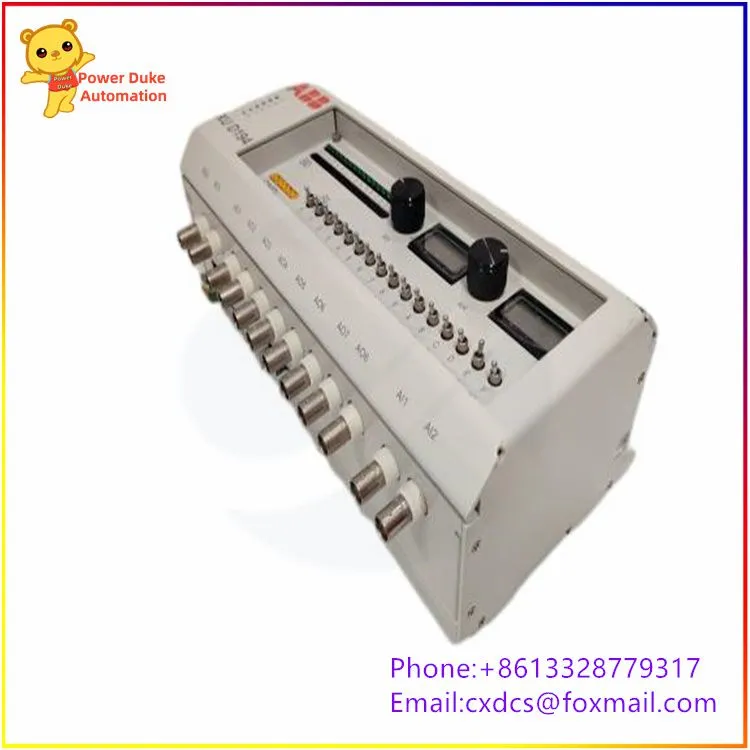

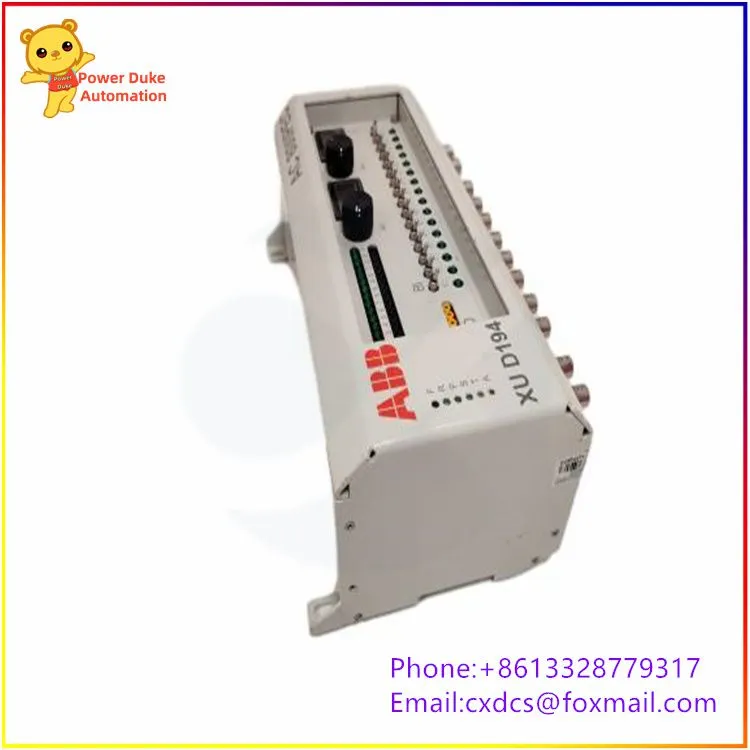

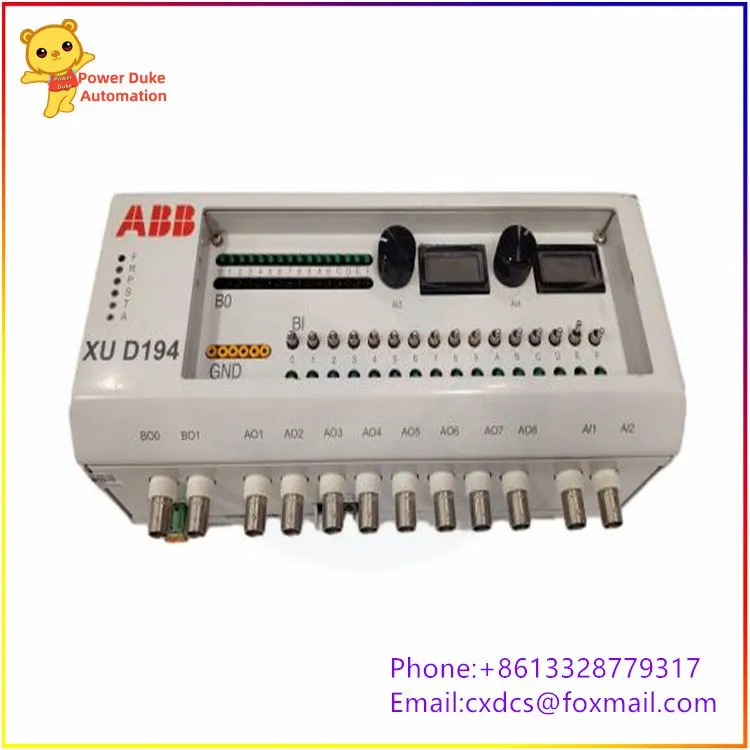

ABB XUD194 3BHE018137R0001 (AC800PEC series high-speed analog quantity acquisition board)
I. Basic Information
Model: XUD194
Original Order Number: 3BHE018137R0001
System: ABB AC800PEC Special High-Performance Controller Platform for Power Electronics
Equipment Type: Multi-channel High-Speed Analog Signal Acquisition Module, specially designed for high real-time control scenarios such as high-power converters, excitation, SVG, rolling mill drives, etc.
Core Hardware Channel Configuration
Analog Input (Voltage Acquisition)
12 High-Speed Voltage Acquisition Channels (±10V Standard Analog Quantity)
High Precision Synchronous Sampling, supporting synchronous acquisition of multiple current, voltage, speed, tension, power signals
Sampling Rate Microsecond Level, meeting the requirements of high-speed closed-loop vector control and direct torque control
Digital Interface
Multiple DI/DO Switching Inputs/Outputs, used for fault feedback, pulse enable, hardware interlock
Bus Interface
Backplane High-Speed Bus for Real-Time Communication with AC800PEC CPU
Fiber Optic Communication Interface, strong and weak current isolation, suitable for medium-voltage variable frequency high-interference scenarios
Key Technical Parameters
Input Range: ±10V DC, Single Channel Accuracy 0.05% High Precision
Synchronous Sampling: All channels are hardware-synchronized sampling, without phase deviation
Power Supply: Module Backplane DC24V Power Supply
Protection Grade: IP20, Standard Cabinet DIN Rail Backplane Slot Installation
Operating Temperature: 0℃ ~ +60℃
Function: Current Voltage Detection, Speed Encoder Signal Acquisition, Fault Hardware Locking, Real-time Signal Uploading to CPU for Algorithm Calculation
System Positioning and Accessories
Installed in the AC800PEC Controller Rack, as a front-end signal acquisition unit, to collect analog signals from IGCT power units, transformers, sensors
Common Accessories: CPU Board, Fiber Optic Communication Board, Pulse Trigger Board, Digital I/O Module
Typical Accessories: ACS6000 Medium-Voltage Variable Frequency Unit, Generator Excitation System, STATCOM Reactive Power Compensation Device, High-Power Rolling Mill Drive System
Typical Application Scenarios
ABB ACS6000 Series 6kV/6.9kV Medium-Voltage High-Power Variable Frequency Units (Mining, Cement, Metallurgy, Fans and Pumps)
Excitation Control System for Hydroelectric/Fossil Power Plant Generators
SVG, SVC Dynamic Reactive Power Compensation, High-Voltage DC Converter Valve Control System
High-Precision Tension and Speed Closed-Loop Drive System for Steel Rolling Mills, Papermaking, Film and Sheet Rolling
