Help CenterABB 5SHY3545L0009 + GVC750BE101 (3BHE009681R0101) Complete IGCT Power Module
Product Spotlights
Related Products
-
ABB 5SHY3545L0010 3BHB013088R0001 IGCT Complete Power ModuleUS$ 5000MOQ: 1 Unit -
ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 IGCT Drive Control BoardUS$ 10000MOQ: 1 Unit
-
ABB SUE3000 1VCF750090R0804 Factory Power Supply High-Speed Circuit Breaker for Rapid SwitchingUS$ 1000MOQ: 1 Unit
-
ABB G2000A5.7ST Industrial Human-Machine Interface (HMI Operation Panel)US$ 1000MOQ: 1 Unit
-
ABB PFTL101A 1.0KN 3BSE004166R1 Tension Load CellUS$ 1000MOQ: 1 Unit
I. Model Correspondence Explanation
5SHY3545L0009: Press-fit asymmetric IGCT power semiconductor device

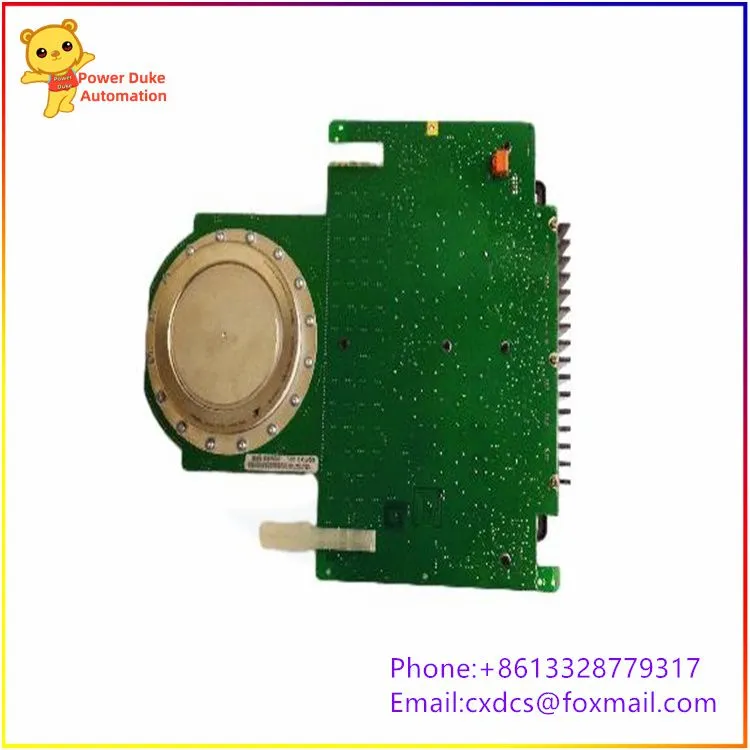

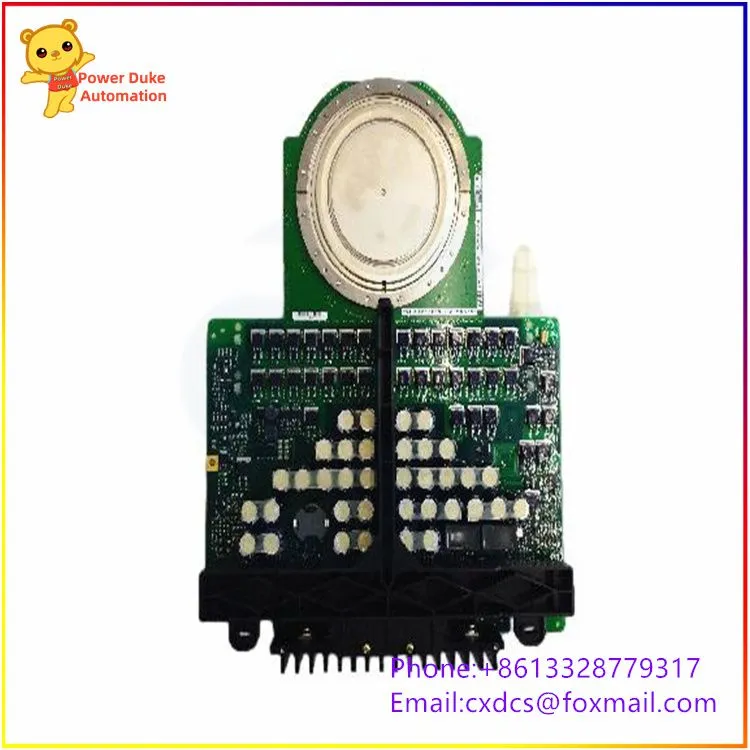

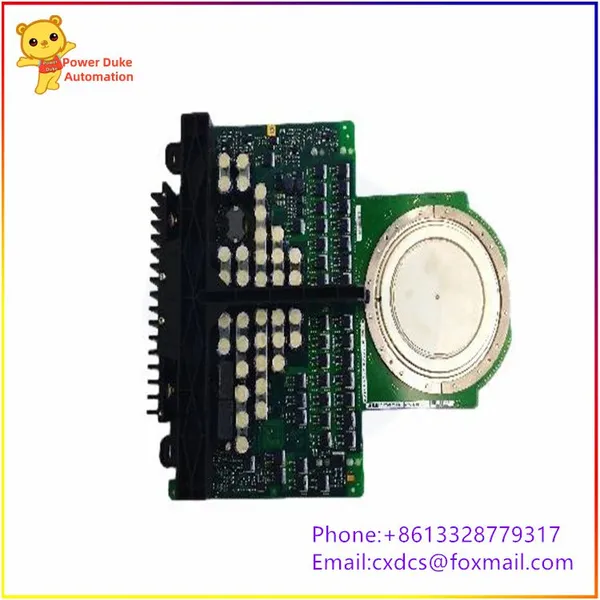

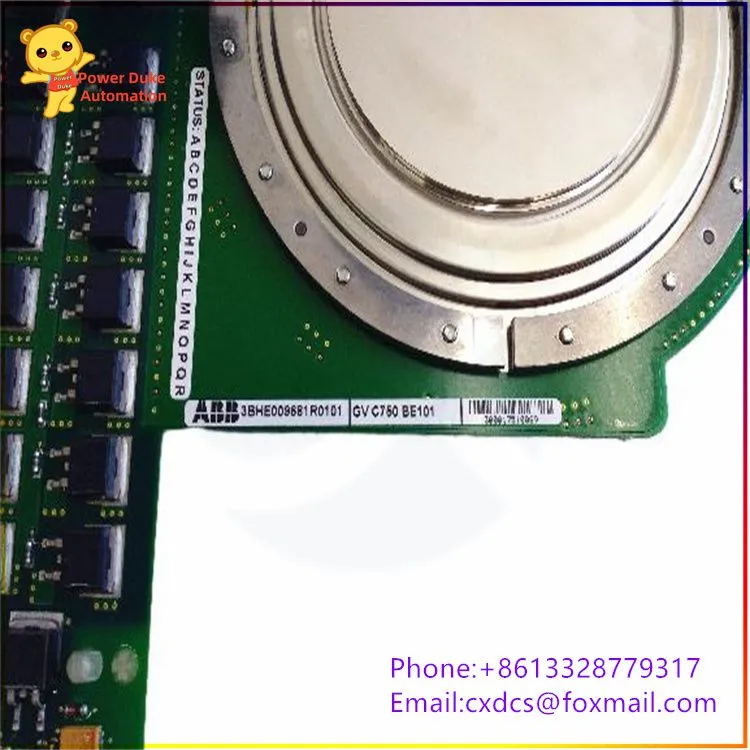

GVC750BE101: Official material code 3BHE009681R0101, dedicated gate driver unit (gate plate) for IGCT, used in one-to-one matching with this IGCT
Core Electrical Parameters of 5SHY3545L0009
Breakdown Voltage: 4500V
Rated DC Current: 3500A
Peak Switchable Current: 6000A
Package Form: Press-fit (double-sided water-cooled heat dissipation)
Operating Junction Temperature: -40℃ ~ +125℃
Typical Switching Frequency: ≤2kHz
Compatible Systems: ABB ACS6000 medium-voltage frequency converter, SVC static reactive power compensation, HVDC high-voltage direct current transmission device
Parameters of GVC750BE101 (3BHE009681R0101) Driver Board
Function: IGCT gate drive, fault detection, overcurrent/short-circuit protection, status feedback
Power Supply: Built-in isolated power supply, taken from the auxiliary power supply of the frequency converter
Protection Functions: Gate overcurrent, device short circuit, undervoltage, overtemperature fault latch-up reporting
Net Weight: 1.55kg, Installation Size: 91mm standard specification
Communication: Fiber optic signal isolation transmission and reception, strong and weak electrical isolation, anti-high-voltage interference
Complete Application Scenarios
ABB ACS6000 series 6kV/6.9kV high-power medium-voltage frequency converter (mine belt conveyor, main fan, rolling mill, compressor)
Wind power converter, photovoltaic high-voltage grid-connected inverter, STATCOM dynamic reactive power compensation device
Ship power propulsion, rail traction frequency converter, metallurgical arc furnace power supply system
High-voltage direct current transmission converter valve, high-power UPS uninterruptible power supply system
Key Points for Interchange and Replacement
5SHY3545L0009 must be used in combination with GVC750BE101 driver board, and other types of gate units cannot be mixed
When replacing, it is necessary to simultaneously check the driver fiber optic, water-cooling sealing gasket, and power terminal tightening torque
Common Fault Phenomena: Driver board fiber optic failure, gate short circuit, IGCT chip breakdown, poor water-cooling heat dissipation and over-temperature protection
