Home > Instruments & Meters > Test Instrument > Test Machine > HST China Impact Testing Machine Both Izod and Charpy Computer Control Impact Testing Machine HST JBW-450XJ for Metal Test

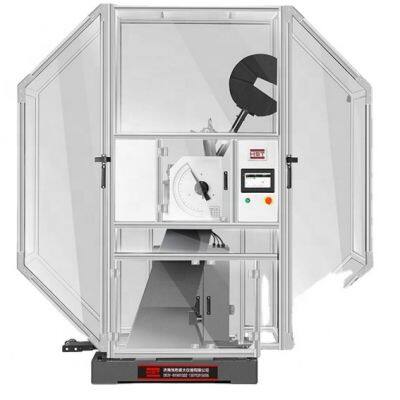

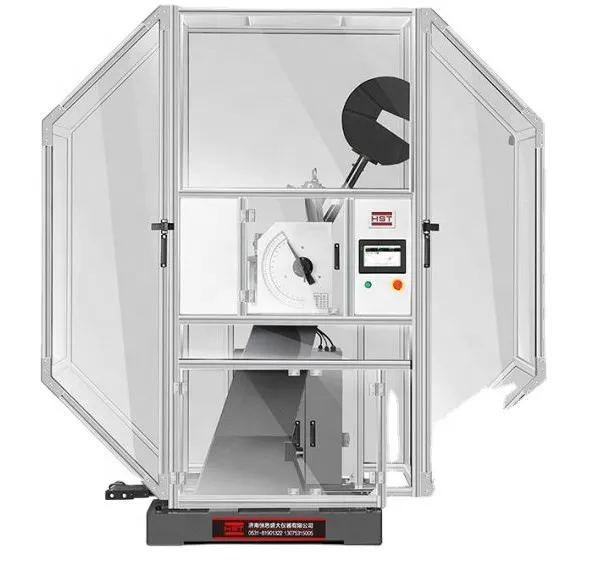

HST China Impact Testing Machine Both Izod and Charpy Computer Control Impact Testing Machine HST JBW-450XJ for Metal Test
US$ 9900 - 13000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST China Both Izod and Charpy Impact Testing Machine Computer Control Impact Testing Machine HST JBW-300XJ for Metal TestUS$ 9900 - 13000MOQ: 1 Set -
HST China Digital Charpy and Izod Impact Testing Machine HST JBS-300XJ Impact Testing Machine for LabUS$ 9900 - 13000MOQ: 1 Set
-
HST China 300J Computer Digital Display Pendulum Impact Testing Machine Impact Testing Machine JBSW-300CUS$ 11200 - 12480MOQ: 1 Set
-
HST 600J Computer Control Pendulum Impact Testing Machine Impact Testing Machine JBW-600C for LaboratoryUS$ 10000 - 11500MOQ: 1 Set
-
HST Touch Screen Pendulum Impact Testing Machine Plastic Izod Charpy Impact Tester Rubber Strength Testing Machine JBS-750CUS$ 7800 - 11800MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer Control Both izod and charpyImpact TestingMachine
Model
HST JBW-450XJ
Impact energy
450J
Division value per small grid
1J
Pendulum torque
241.1576N.m
Pendulum mass
32.8106Kg
Pendulum pre-lift angle
150°
Distance
750mm
Impact velocity
5.24M/s
Power supply
3p 4-wire 380V 50Hz or specified
HST JBW-450XJ Computer Control Both izod and charpyImpact TestingMachine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application :
Model JBW-300XJ Computer Screen Display Charpy and Izod Pendulum Impact Tester is highperformancependulum impact tester that precisely determines absorbed impact energy and resistance tobreakageofmetallic specimens. With the computer display, it can show test result and test curve in real timeeasily.Designed for determination of the impact energy as Charpy and Izod impact methods accordingtoASTME23,ISO, DIN, EN standards; Innovative mechanical design features make these testing machine top contenders on the market with excellent price/quality ratio as well as high accuracy. Universities, automotiveandaerocompanies, research and R&D Labs, as well as steel plants are typical customers for these testingsystems.
Standards:
Charpy Impact Test: ASTM E23, ISO148, ASTM A370 for Metals
Charpy Impact Test: ASTM E23, ISO148, ASTM A370 for Metals
Izod Impact Test: ASTM E23, BS 131 for Metals
Software function:
1 Record impact strength, impact energy, etc. Also can calculate the max, min, averageandstandard deviation
2 WINDOWS based operating platform, the software is simple, powerful
1 Record impact strength, impact energy, etc. Also can calculate the max, min, averageandstandard deviation
2 WINDOWS based operating platform, the software is simple, powerful
3 Software supports multiple pendulum；
4 After finished test, the system automatically analyzes, statistical test results
5 Flexible report editing features, the software offers a variety of print statementsInterface,such as Excel ,word
Item |
HST JBW-450XJ |
||
Main host |
Impact energy |
450J |
|
Scale range |
0-450J |
||
Division value per small grid |
1J |
||
Pendulum impact energy |
450J |
||
Pendulum torque |
241.1576N.m |
||
Pendulum mass |
32.8106Kg |
||
Pendulum pre-lift angle |
150° |
||
Distance from pendulum center to impact point |
750mm |
||
Impact velocity |
5.24M/s |
||
IZOD |
Specimen support mounting surface |
90°±0.1° |
|
Impact knife arc radius |
R0.75±0.25mm |
||
Impact knife bevel angle |
75° |
||
Impact knife blade width |
16mm |
||
Distance from striking point to specimen clamping section |
22±0.5mm |
||
Square section size of specimen |
10×10×70、98、126mm |
||
Circular section size of specimen (optional) |
11.43×71、99、127mm |
||
Charpy |
Specimen support mounting surface |
±0.01mm |
|
Distance between two supports |
40+0.2mm |
||
Impact knife arc radius (R8 optional) |
R2/R8 |
||
Impact knife two inclined angles |
30° |
||
Impact knife blade width |
16mm |
||
Specimen specifications |
55×10×2.5、5、7.5、10mm |
||
