HST 300J 150J Motorized Impact Testing Machine Charpy Impact Testing Machine for Test HST JB-300B
US$ 2000 - 3000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST JBDW-750CY-80 750j Low Temperature Computer Automatic Impact Testing Machine(-80℃)US$ 9800 - 11200MOQ: 1 Set -
HST JBDS-500D-196 Low-temperature Automatic Charpy Impact Testing Machine 1-Year Warranty for Long-Term Material TestingUS$ 9800 - 11200MOQ: 1 Set
-
JB-500B 300J 500J Low Temperature Pendulum Impact Non-ferrous Metal Testing Machine Pendulum Charpy Impact Testing MachineUS$ 1100 - 3700MOQ: 1 Set
-
ASTM E23 JBW-500C , JBW-450C, JBW-750C , Charpy Izod Low-temperature Automatic Impact Testing Machine TesterUS$ 9400 - 9800MOQ: 1 Set
-
JB-500B 300J 500J Low Temperature Pendulum Impact Non-ferrous Metal Testing Machine Pendulum Charpy Impact Testing MachineUS$ 1100 - 3700MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
Other
warranty
1 Year
Product name
Motorized Impact Testing Machine
Model
HST JB-300B
Max. impact energy
150J 300J
Dial scale range and dividing value
0~300J(2J), 0~150J(1J)
Impact speed
5.2m/s
Raised angle
150°
Standard span
40+0.2mm
Angle accuracy
0.1°
The impact of the blade angle
30°

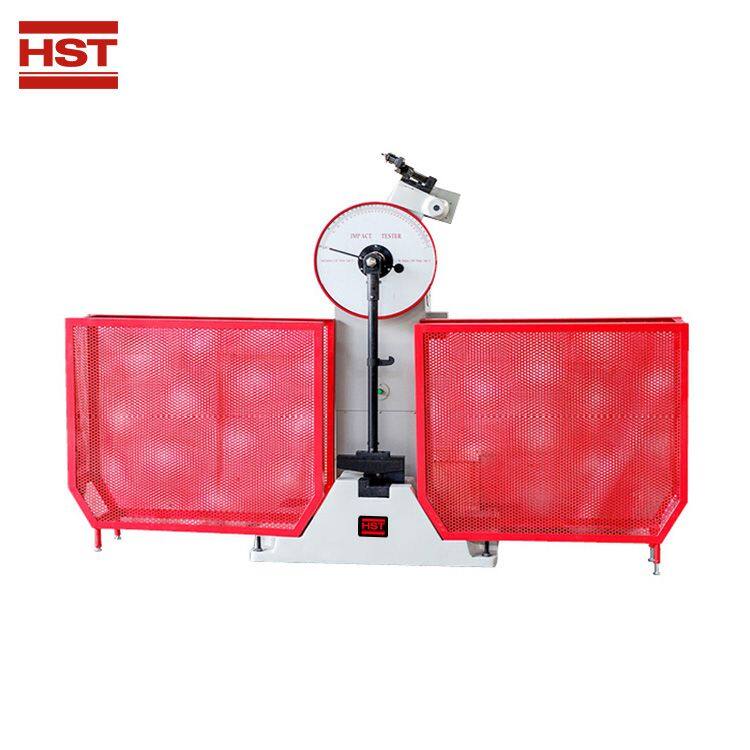

HST JB-300B Motorized Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Application

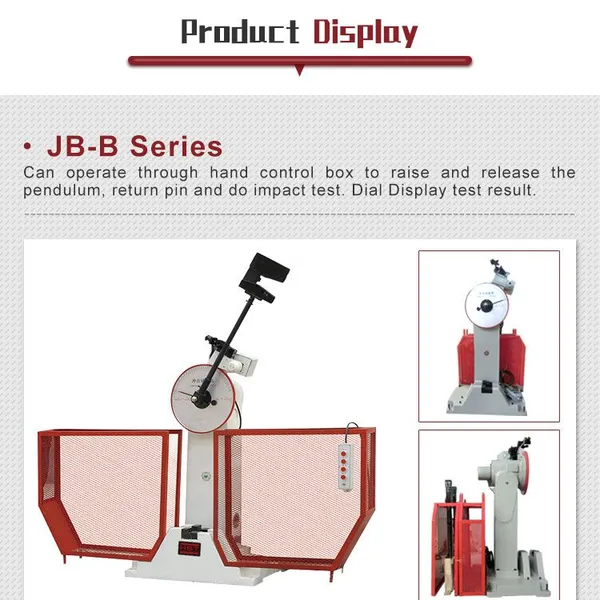

JB-500B impact testing machines are used to determine the impact toughness of metal materials under dynamic load. The pendulum ofthe machine can be raised or released automatically. They have the features of easy operation, high efficiency, safe and reliable.The machines are especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.
2.Standard:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.
3.Important technical parameters
MODEL |
HST JB-300B |
Type |
B |
Display type |
dial |
Max. impact energy |
150J, 300J |
Dial scale range and dividing value |
0~300J(2J), 0~150J(1J) |
Pendulum moment 300J |
160.7695N.m |
Pendulum moment 150J |
80.3848Nm |
The distance between the pendulum shaft and impact point |
750mm |
Impact speed |
5.2 m/s |
Raised angle |
150° |
Standard span |
40+0.2mm |
Round angle of the jaw |
R1-1.5mm |
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
Thickness of Impact Blade |
16 mm |
Specimen holder support surface angle |
11° |
The impact of the blade angle |
30° |
Angle accuracy |
0.1° |
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
Power supply |
3 phase, AC380V±10%, 50Hz |
Dimensions |
2144 x 736 x 1390mm |
Net Weight |
550KG |

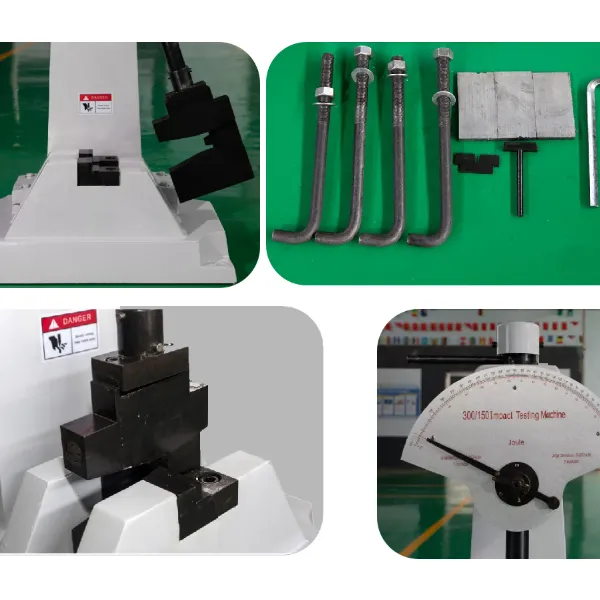

product detail picture：
