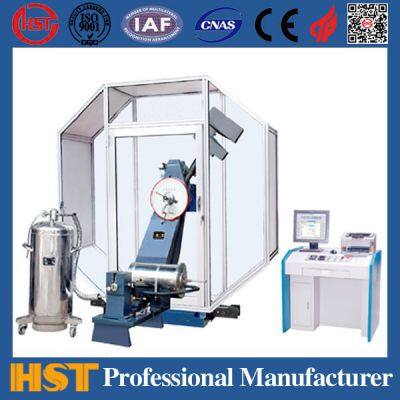

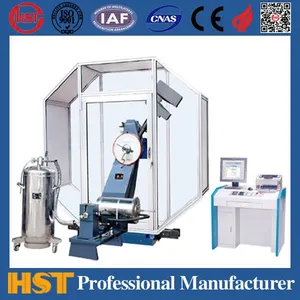

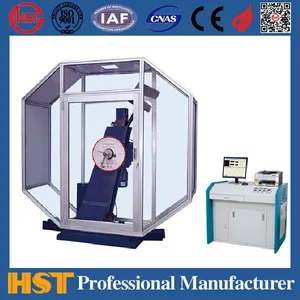

HST China Both Izod and Charpy Impact Testing Machine Computer Control Impact Testing Machine HST JBW-300XJ for Metal Test
US$ 9900 - 13000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST China Digital Charpy and Izod Impact Testing Machine HST JBS-300XJ Impact Testing Machine for LabUS$ 9900 - 13000MOQ: 1 Set -
HST China 300J Computer Digital Display Pendulum Impact Testing Machine Impact Testing Machine JBSW-300CUS$ 11200 - 12480MOQ: 1 Set
-
HST 600J Computer Control Pendulum Impact Testing Machine Impact Testing Machine JBW-600C for LaboratoryUS$ 10000 - 11500MOQ: 1 Set
-
HST Touch Screen Pendulum Impact Testing Machine Plastic Izod Charpy Impact Tester Rubber Strength Testing Machine JBS-750CUS$ 7800 - 11800MOQ: 1 Set
-
HST Digital Display Impact Testing Machine High Precision Touch Screen Pendulum Impact Testing Machine JBS-600CUS$ 8000 - 11800MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer Control Both izod and charpyImpact TestingMachine
Model
HST JBW-300XJ
Impact energy
Charpy test 150,300, Izod Test 300
Pre rising angle of the pendulum
150°
Power supply
3p 4-wire 380V 50Hz or specified
The angle
100±1°
Size of specimen (mm)
10*10*70~126mmsquare sample, 11.43*71~127mmround sample
Impact speed (m/s)
Charpy test 5.24m/s, Izod Test 4.6868m/s
Specimen and distance (mm)
Charpy test 10±0.5, Izod Test 22±0.5
Distance between (mm)
Charpy test 750, Izod Test 600
HST JBW-300XJ Computer Control Both izod and charpyImpact TestingMachine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application :
Model JBW-300XJ Computer Screen Display Charpy and Izod Pendulum Impact Tester is highperformancependulum impact tester that precisely determines absorbed impact energy and resistance tobreakageofmetallic specimens. With the computer display, it can show test result and test curve in real timeeasily.Designed for determination of the impact energy as Charpy and Izod impact methods accordingtoASTME23,ISO, DIN, EN standards; Innovative mechanical design features make these testing machine top contenders on the market with excellent price/quality ratio as well as high accuracy. Universities, automotiveandaerocompanies, research and R&D Labs, as well as steel plants are typical customers for these testingsystems.
Standards:
Charpy Impact Test: ASTM E23, ISO148, ASTM A370 for Metals
Charpy Impact Test: ASTM E23, ISO148, ASTM A370 for Metals
Izod Impact Test: ASTM E23, BS 131 for Metals
Software function:
1 Record impact strength, impact energy, etc. Also can calculate the max, min, averageandstandard deviation
2 WINDOWS based operating platform, the software is simple, powerful
1 Record impact strength, impact energy, etc. Also can calculate the max, min, averageandstandard deviation
2 WINDOWS based operating platform, the software is simple, powerful
3 Software supports multiple pendulum；
4 After finished test, the system automatically analyzes, statistical test results
5 Flexible report editing features, the software offers a variety of print statementsInterface,such as Excel ,word
MODEL | HST JBW-300XJ |
Impact energy (J) | Charpy Test：150/300 Izzod Test：300 |
Notch Types | Charpy Test：U and V-shaped notch Izzod Test：Only V-shaped notch |
Striking Point | Charpy Test：Middle of material Izzod Test：The Upper Tip of material |
Impact speed (m/s) | Charpy test：5.24m/s Izzod Test：4.6868m/s |
Specimen and distance of pendulum contact wires to the symmetry of gap(mm) | Charpy test：10±0.5 Izzod Test：225.0 |
Pendulum preparing angle | 150° |
Distance between pendulum center and sample center (mm) | Charpy test：750 Izzod Test：600 |
Round angle of jaws (mm) | Charpy Test：R1-R1.5 Izzod Test：R0.4 |
Round angle of striking edge (mm) | Charpy Test：R2-R2.5 Izzod Test：R0.66 |
The impact blade thickness (mm) | Charpy Test：16 Izzod Test：15-20 |
Size of specimen (mm) | Charpy Test：55*10*10 Izzod Test：127 x 11.43 round bar for meta |
The angle of sample front and pendulum underside | 100±1° |
Size of specimen (mm) | 10×10×70～126mm square sample Φ11.43×71～127mm round sample |
Power supply | 3p 4-wire 380V 50Hz or specified |
Dimensions (mm) | 2124×600×1340 |
Weight(KG) | 450 |
