Home > Instruments & Meters > Test Instrument > Test Machine > HST China Digital Charpy and Izod Impact Testing Machine HST JBS-300XJ Impact Testing Machine for Lab

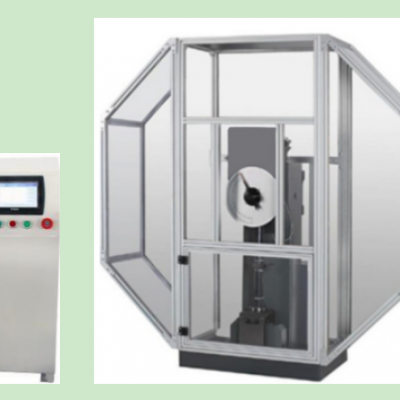

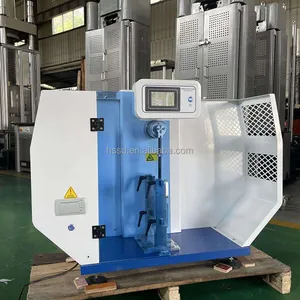

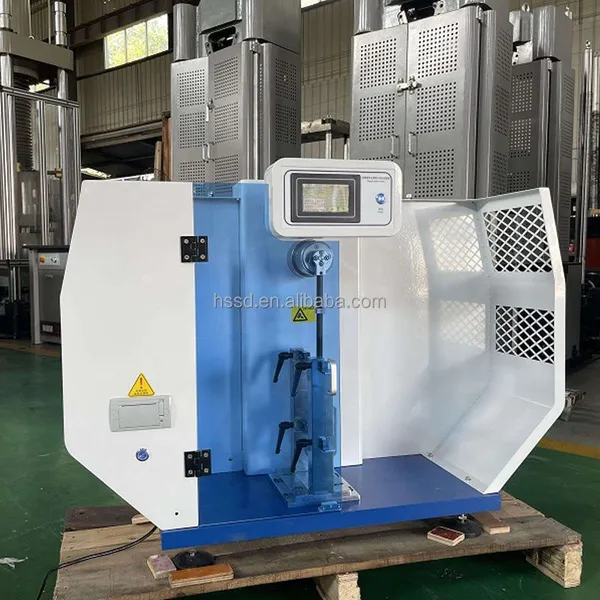

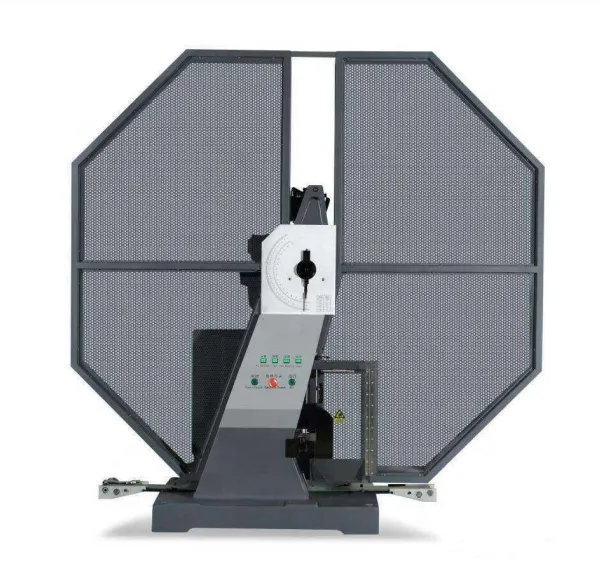

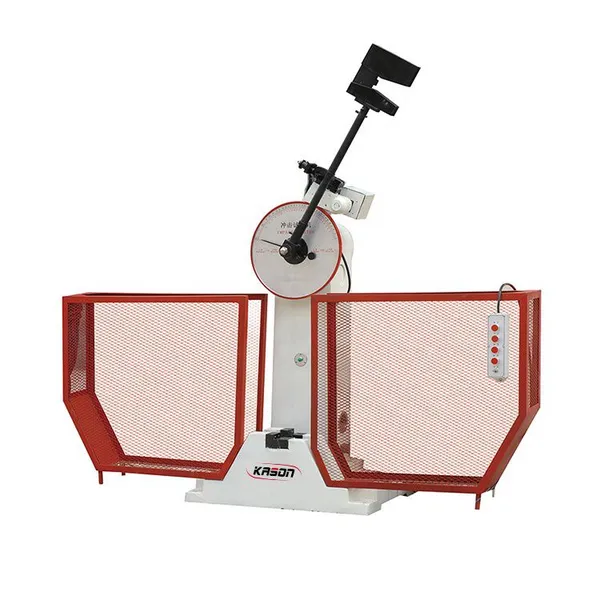

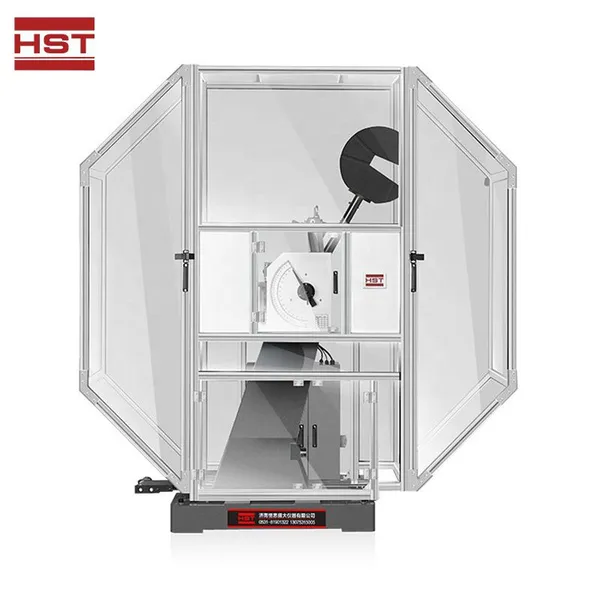

HST China Digital Charpy and Izod Impact Testing Machine HST JBS-300XJ Impact Testing Machine for Lab
US$ 9900 - 13000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Display:
Digital display
Accuracy Class:
High Accuracy
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST China 300J Computer Digital Display Pendulum Impact Testing Machine Impact Testing Machine JBSW-300CUS$ 11200 - 12480MOQ: 1 Set -
HST 600J Computer Control Pendulum Impact Testing Machine Impact Testing Machine JBW-600C for LaboratoryUS$ 10000 - 11500MOQ: 1 Set
-
HST Touch Screen Pendulum Impact Testing Machine Plastic Izod Charpy Impact Tester Rubber Strength Testing Machine JBS-750CUS$ 7800 - 11800MOQ: 1 Set
-
HST Digital Display Impact Testing Machine High Precision Touch Screen Pendulum Impact Testing Machine JBS-600CUS$ 8000 - 11800MOQ: 1 Set
-
HST Touch Screen Pendulum Impact Testing Machine Measuring Charpy Impact Resistance of Metal Impact Testing Machine JBS-300CUS$ 8800 - 10800MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Digital Display Pendulum Impact Testing Machine
Model
HST JBS-300XJ
Impact energy
150/300J
Pre-rising angle of the pendulum
150°
Thickness of impact blade
16mm
Angle accuracy
0.1°
Specimen bearer span
40+0.2mm
Standard specimen dimension
10mm*10mm*55mm
Power supply
380V, 50Hz , 3 wire and 4phrases
HST JBS-XJ series Digital Display Pendulum Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application :
JBS-XJ series Digital Display Pendulum Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
Features:
1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
3 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test
average value, meantime the dial scale show test result as well.
5 Built-in micro printer to print test result.
1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
3 Pendulum will automatically rising and ready for next impact action after specimen breakout.
4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test
average value, meantime the dial scale show test result as well.
5 Built-in micro printer to print test result.
Model |
JBS-300XJ |
JBS-500XJ |
|||
Display |
Digital display |
||||
Min reading value |
1 J |
2J |
|||
Impact energy |
150/300J |
250/500J |
|||
The distance between the pendulum shaft and impact point |
750mm |
800mm |
|||
Impact speed |
5.2m/s |
5.4 m/s |
|||
Pre-rising angle of the pendulum |
150° |
||||
Specimen bearer span |
40+0.2mm |
||||
Round angle of bearing jaw |
R1.0-1.5mm |
||||
Round angle of impact blade |
R2.0-2.5mm,(R8mm) |
||||
Thickness of impact blade |
16mm |
||||
Angle accuracy |
0.1° |
||||
Standard specimen dimension |
10mm×10mm×55mm |
||||
Power supply |
380V, 50Hz , 3 wire and 4phrases |
||||
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
|||
Net Weight (kg) |
450 |
580 |
|||
