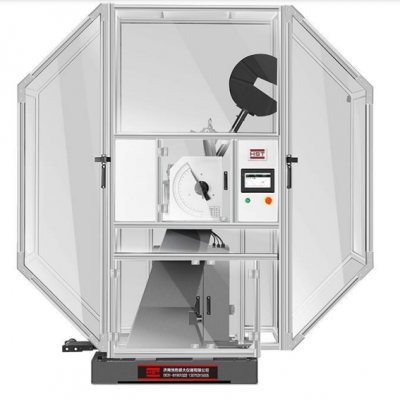

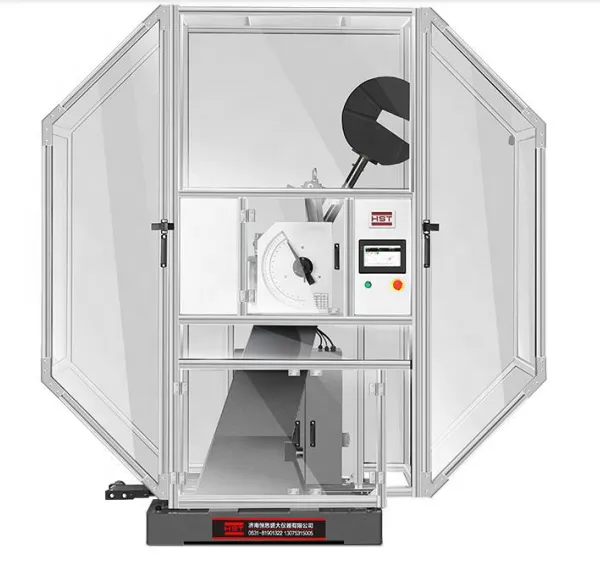

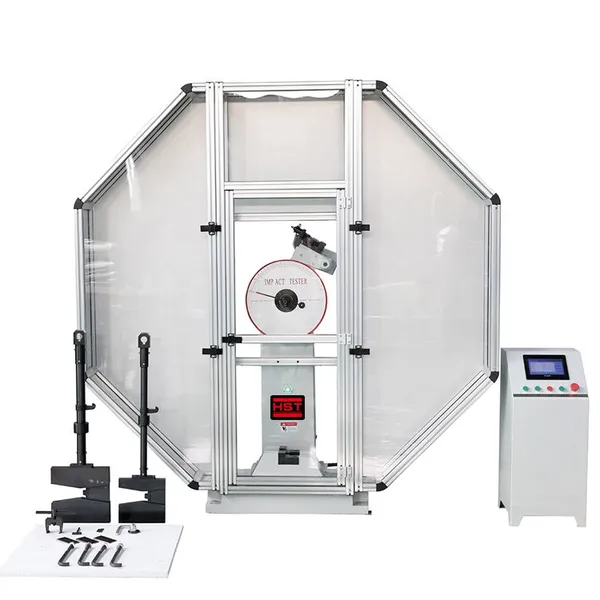

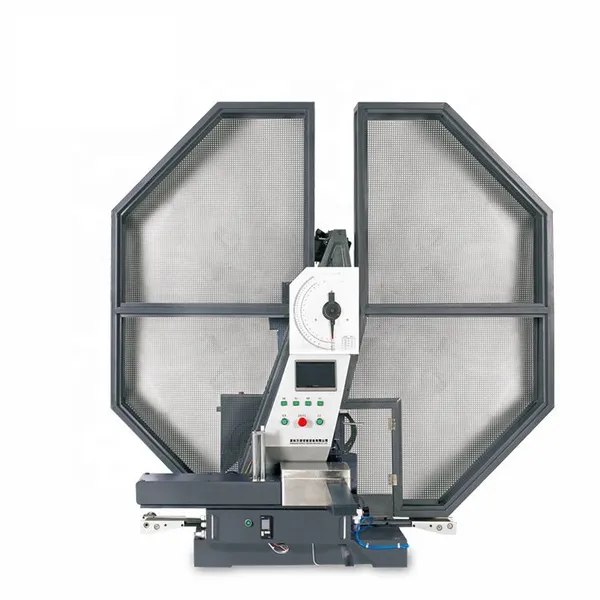

HST Touch Screen Pendulum Impact Testing Machine Plastic Izod Charpy Impact Tester Rubber Strength Testing Machine JBS-750C
US$ 7800 - 11800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Digital Display Impact Testing Machine High Precision Touch Screen Pendulum Impact Testing Machine JBS-600CUS$ 8000 - 11800MOQ: 1 Set -
HST Touch Screen Pendulum Impact Testing Machine Measuring Charpy Impact Resistance of Metal Impact Testing Machine JBS-300CUS$ 8800 - 10800MOQ: 1 Set
-
HST Charpy Impact Testing Machine JB-C Series High Accuracy IP65 Protection 1-Year Long-Term Material Testing Semi-automaticUS$ 8500 - 10800MOQ: 1 Set
-
HST Pendulum Charpy Impact Testing Machine Determine the Impact Toughness of Metal Materialsunder Dynamic Load JB-450CUS$ 8000 - 9900MOQ: 1 Set
-
HST JBS-300B Digital Display Impact Testing MachineUS$ 3000 - 3900MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Digital Display Impact Testing Machine
Machine type
C
Model
HST JBS-750C
Max. impact energy
750J
Optional pendulum
300J, 450J, 600J
Impact speed
5.24 m/s
Angle resolution
0.025°
Striking angle
150°±1
Support span
40+0.2mm
Power supply
3 phase, AC380V±10%, 50Hz
HST JBS-750C Digital Display Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
This machine is used for measuring the Charpy impact resistance of metal and other materials.
Standard:
ISO 148-1 -Metallic materials - CHARPY pendulum impact test.
JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials.
EN 10045-1 -Metallic materials-CHARPY impact test.
ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallicmaterials.
GOST 9454-78 -Impact bending test method at low, room and high temperatures.
MODEL |
HST JBS-750C |
Machine type |
Type C |
Display type |
with dial gauge and touch screen display |
Max. impact energy |
750J |
Optional pendulum |
300J, 450J, 600J |
Pendulum moment 150J |
80.3848Nm |
Pendulum moment 300J |
150.7695 Nm |
Pendulum moment 450J |
241.1543 Nm |
Pendulum moment 600J |
321.5390 Nm |
Pendulum moment 750J |
401.9238 Nm |
The distance between the pendulum shaft and impact point |
750mm |
Impact speed |
5.24 m/s |
Angle resolution |
0.025° |
Striking angle |
150°±1 |
Support span |
40+0.2mm |
Radius of support curvature |
R1~1.5mm |
Angle of support taper |
11±1° |
Striking edge radius |
2 (R2) or 8 (R8)mm |
Striking thickness |
16 mm |
Striking tip angle |
30° |
Standard specimen dimension |
55×10×10mm, 55×10×7.5mm, 55×10×5mm according to customer sample size |
Power supply |
3 phase, AC380V±10%, 50Hz |
Dimensions |
2220×900×2220mm |
Net Weight |
1000KG |
