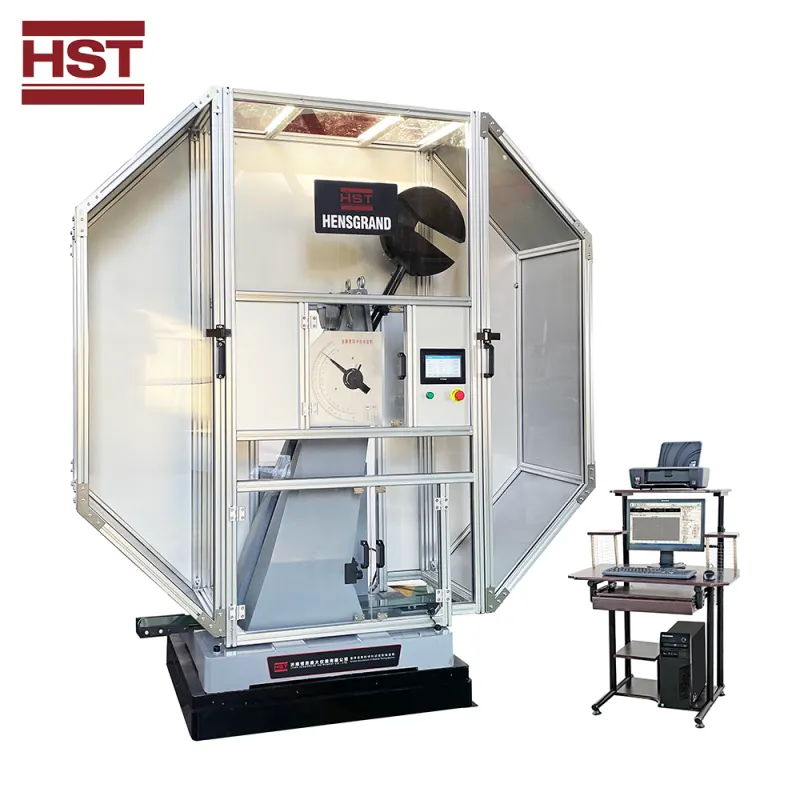

JBDW-C Series Low-temperature Automatic Impact Testing Machine
Impact Testing Machine
price ,please check with us for the specific model: +8615866777131
1. Capacity:
150J,300J,450J,600J,750J
2. Application
JBDW-C Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring
the metal material resistance performance under dynamic load,in order to determine the material
properties under dynamic load.
It’s a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas,
but also used for the science research.
3. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-200,ISO 138,EN10045.
Main Technical Specifications:
|
Model |
JBDW-300C |
JBDW-450C |
JBDW-600C |
JBDW-750C |
|
Max. impact energy(J) |
300 |
450 |
600 |
750 |
|
Pendulum Torque |
160.7695 |
241.1543 |
321.5390 |
401.9238 |
|
The distance between the pendulum shaft and impact point |
750mm |
|||
|
Impact speed |
5.24 m/s |
|||
|
Raised angle |
150° |
|||
|
Round angle of the jaw |
R1-1.5mm |
|||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
|||
|
Angle accuracy |
0.1° |
|||
|
Cooling way |
compressor |
|||
|
Capacity of sample box |
20 |
|||
|
Range of low temperature |
room tempeature --60°c/80°c |
|||
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
|||
|
Power supply |
3phs, 380V, 50Hz or specified by users |
|||
|
Net Weight (kg) |
900 |
|||
5. Features:
5.1 One-body cast frame design of seat and column provide high stability.
5.2 Front and rear columns are symmetrical. Pendulum arm is designed of cantilever beam support, with simple structure and high machined precision.
5.3 Apply high precision bearing with small friction. Absorbing energy without loading is less than 0.3%.
5.4 Double reduction gear system replaces old style drive system with high efficiency and avoiding transmission failure.
5.5High rigid pendulum arm prevents axial and transverse vibrations.
5.6 Exchangeable pendulum is simple to change to satisfy impact energy of 150J, 300J, 450J, 600J, 750J.
5.7 Electromagnetic release of pendulum hammer and electromagnetic clutch for locking the pendulum and raising it to its initial position. A damper is equipped to prevent strong bump when clutching.
5.8 Full-closed enclosure with high safety to prevent broken sample from splitting. Protective screening has interlock door. When the door opens, most operations can’t work to avoid any wrong operation.
5.9 Big touch screen monitor may real-time displays striker angle, impact energy, toughness,and other parameters. User can input specimen data and other information such as company information into this monitor. When connected to a printer, user input information and test results will be printed(optional)
5.10 Apply SIEMENS industrial PLC to control pendulum, The whole system is stable, reliable and accurate.(optional)
6. Software Features:
6.1 Fully automatic, sample feeding, auto position the sample; high efficiency;
6.2 Pendulum rising, impact, sample feeding, position, free releasing is realized automatically by
easy PC mouse click;
6.3 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
6.4 Pendulum will automatically rising and ready for next impact action after specimen breakout.
JBW series computer display Impact Testing Machine : ----Izod structure
-----Charpy Structure metal impact testing machine:
Impact Testing Machines in stock, can be shipped directly after receiving orders:
|
|
|
|
150J 300J 450J 500J 750J JBW-C Computer Control Semi Automatic Impact Testing Machine |
150J 300J 450J 500J 750J JBW-C Computer Control Semi Automatic Impact Testing Machine |
HST KASON HESGRAND JBW-500B 500J Impact Testing Machine/Charpy impact test equipment price |
|
|
|
|
JBS-300B 300J 500J 800JSemi-automatic charpy izod pendulum Digital Display metal impact tester impact testing machine |
cheap price specimen notch measuring profile projector |

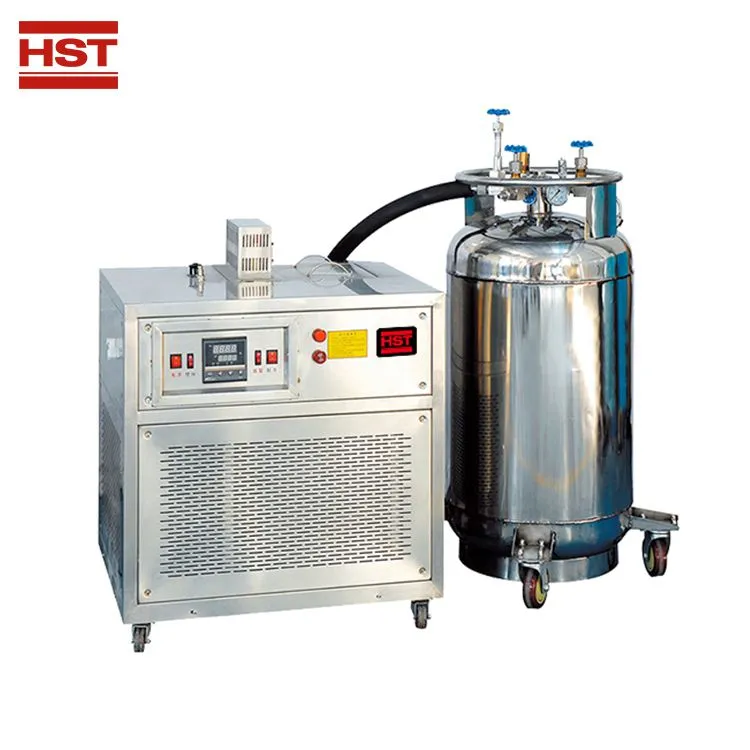

-190℃ Impact Testing Low Temperature Chamber |
|
|
|
|
DWC-40 -40 degree Compressor refrigeration Impact Testing Low Temperature Chamber |
Impact test manual cutting mode broaching machine |
VU-2Y Hydraulic Electromechanical Broaching Machine |
-------------
