Home > Instruments & Meters > Test Instrument > Test Machine > HST Pendulum Charpy Impact Testing Machine Determine the Impact Toughness of Metal Materialsunder Dynamic Load JB-450C

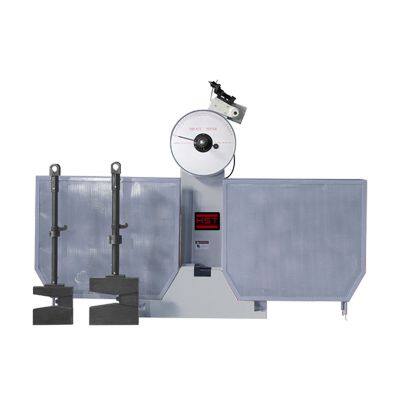

HST Pendulum Charpy Impact Testing Machine Determine the Impact Toughness of Metal Materialsunder Dynamic Load JB-450C
US$ 8000 - 9900
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST JBS-300B Digital Display Impact Testing MachineUS$ 3000 - 3900MOQ: 1 Set -
HST 300J 150J Motorized Impact Testing Machine Charpy Impact Testing Machine for Test HST JB-300BUS$ 2000 - 3000MOQ: 1 Set
-
HST JBDW-750CY-80 750j Low Temperature Computer Automatic Impact Testing Machine(-80℃)US$ 9800 - 11200MOQ: 1 Set
-
HST JBDS-500D-196 Low-temperature Automatic Charpy Impact Testing Machine 1-Year Warranty for Long-Term Material TestingUS$ 9800 - 11200MOQ: 1 Set
-
JB-500B 300J 500J Low Temperature Pendulum Impact Non-ferrous Metal Testing Machine Pendulum Charpy Impact Testing MachineUS$ 1100 - 3700MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Semi-automatic Impact Machine
Model
HST JB-450C
Max. impact energy
450J
Optional pendulum
150,300,450
Impact speed
5.24 m/s
Anvil span (mm)
40
Anvil corner radius (mm)
R1-1.5
Anvil rake Angle
11°±1°
Impact edge Angle
30°±1°
Power supply
Three-phase,five-wire system, 380V±10%, 50Hz

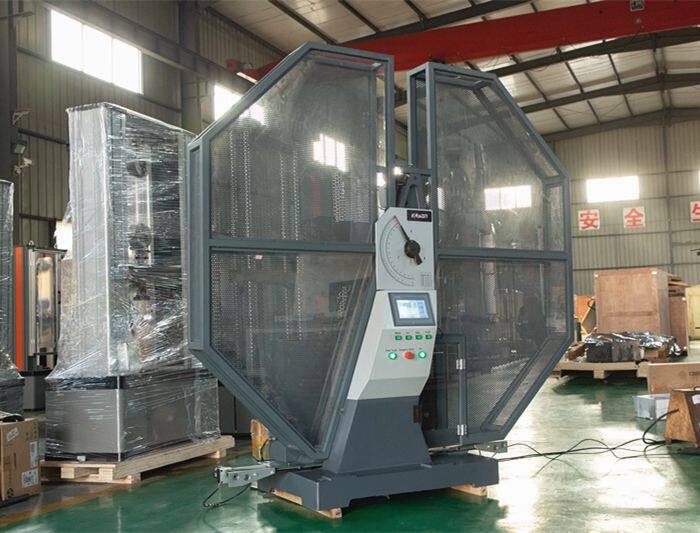

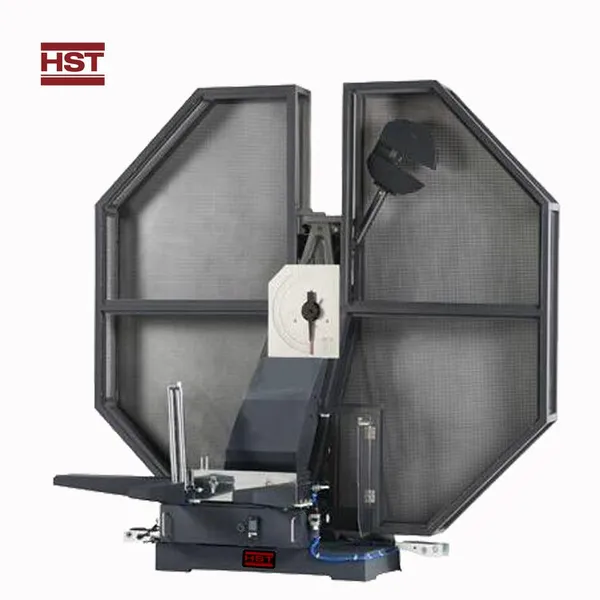

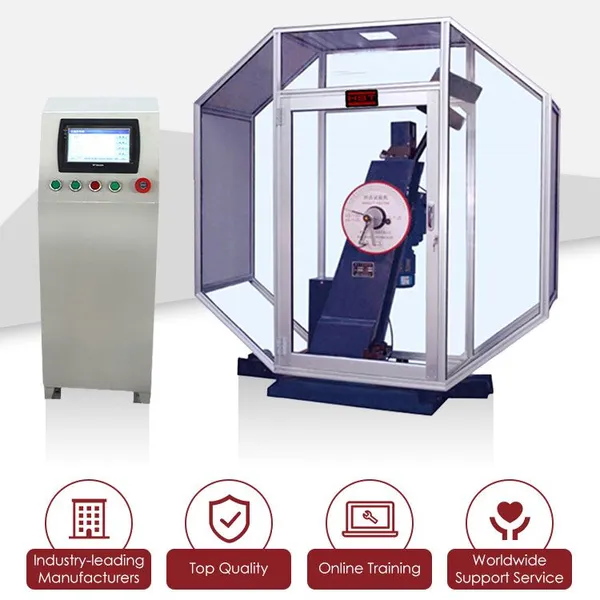

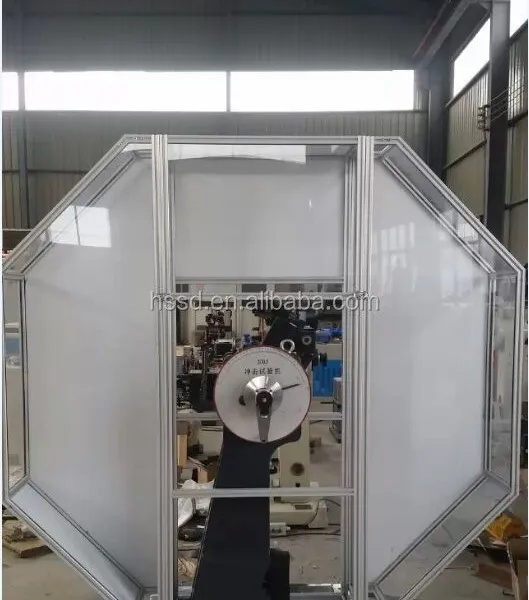

HST JB-450C Charpy Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Application
This machine is used for measuring the Charpy impact resistance of metal and other materials.
2.Standard:
ISO 148-1 -Metallic materials - CHARPY pendulum impact test.
JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials.
EN 10045-1 -Metallic materials-CHARPY impact test.
ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallicmaterials.
GOST 9454-78 -Impact bending test method at low, room and high temperatures.
3.Important technical parameters
item | JB-450C | ||
Maximum impact energy (J) | 450 | ||
Optional simple beam pendulum (J) | 150,300,450 | ||
Pendulum prelift Angle | 150° | ||
Distance from the axis of the pendulum to the center of impact (mm) | 750 | ||
Impact velocity (m/s) | 5.24 | ||
Anvil span (mm) | 40 | ||
Anvil corner radius (mm) | R1-1.5 | ||
Anvil rake Angle | 11°±1° | ||
Impact edge Angle | 30°±1° | ||
Impact edge curvature radius | 2mm impact edge | 2-2.5 | |
8mm impact blade | 8±0.05 | ||
8mm impact shoulder Angle radius | 0.1-1 | ||
8mm impact blade width | 4 ±0.05 | ||
Impact blade width (mm) | 10-18 | ||
Impact knife thickness (mm) | 16 | ||
Meet the sample size (mm) | 10×10×55,10×7.5×55 10×5×55 | ||
Overall dimension(mm) | 2220×900×2220 | ||
Weight | Approx. 1500kg | ||
Power | Three-phase,five-wire system, 380V± 10%, 50Hz | ||
4.Features:
4.1 One-body cast frame design of seat and column provide high stability.
4.2 Front and rear columns are symmetrical. Pendulum arm is designed of cantilever beam support, with simple structure and high machined precision.
4.3 Apply high precision bearing with small friction. Absorbing energy without loading is less than 0.3%.
4.4 Double reduction gear system replaces old style drive system with high efficiency and avoiding transmission failure.
4.5High rigid pendulum arm prevents axial and transverse vibrations.
4.6 Exchangeable pendulum is simple to change to satisfy impact energy of 150J, 300J, 450J, 600J, 750J.
4.7 Electromagnetic release of pendulum hammer and electromagnetic clutch for locking the pendulum and raising it to its initial
position. A damper is equipped to prevent strong bump when clutching.
4.8 Full-closed enclosure with high safety to prevent broken sample from splitting. Protective screening has interlock door. When the door opens, most operations can’t work to avoid any wrong operation.
4.9 Big touch screen monitor may real-time displays striker angle, impact energy, toughness,and other parameters. User can input specimen data and other information such as company information into this monitor. When connected to a printer, user input information and test results will be printed(optional)
4.10 Apply SIEMENS industrial PLC to control pendulum, The whole system is stable, reliable and accurate.(optional)
4.2 Front and rear columns are symmetrical. Pendulum arm is designed of cantilever beam support, with simple structure and high machined precision.
4.3 Apply high precision bearing with small friction. Absorbing energy without loading is less than 0.3%.
4.4 Double reduction gear system replaces old style drive system with high efficiency and avoiding transmission failure.
4.5High rigid pendulum arm prevents axial and transverse vibrations.
4.6 Exchangeable pendulum is simple to change to satisfy impact energy of 150J, 300J, 450J, 600J, 750J.
4.7 Electromagnetic release of pendulum hammer and electromagnetic clutch for locking the pendulum and raising it to its initial
position. A damper is equipped to prevent strong bump when clutching.
4.8 Full-closed enclosure with high safety to prevent broken sample from splitting. Protective screening has interlock door. When the door opens, most operations can’t work to avoid any wrong operation.
4.9 Big touch screen monitor may real-time displays striker angle, impact energy, toughness,and other parameters. User can input specimen data and other information such as company information into this monitor. When connected to a printer, user input information and test results will be printed(optional)
4.10 Apply SIEMENS industrial PLC to control pendulum, The whole system is stable, reliable and accurate.(optional)
5. Software Features:
5.1 Fully automatic, sample feeding, auto position the sample; high efficiency;
5.2 Pendulum rising, impact, sample feeding, position, free releasing is realized automatically by
easy PC mouse click;
5.3 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
5.4 Pendulum will automatically rising and ready for next impact action after specimen breakout.
5.2 Pendulum rising, impact, sample feeding, position, free releasing is realized automatically by
easy PC mouse click;
5.3 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
5.4 Pendulum will automatically rising and ready for next impact action after specimen breakout.
