Home > Instruments & Meters > Test Instrument > Test Machine > HST Digital Display Impact Testing Machine High Precision Touch Screen Pendulum Impact Testing Machine JBS-600C

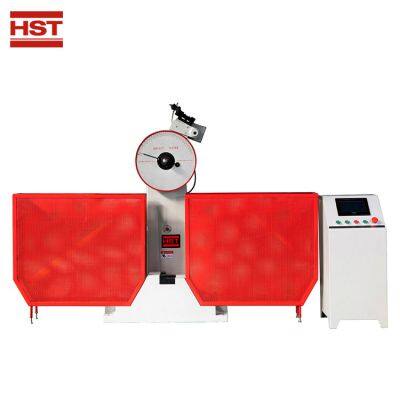

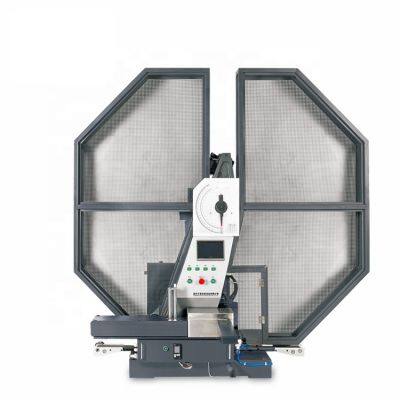

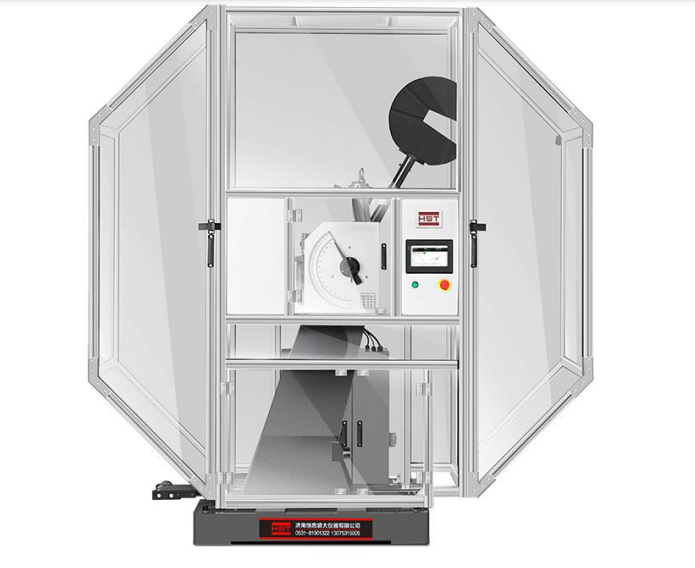

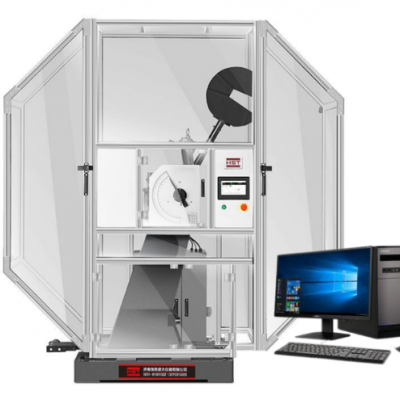

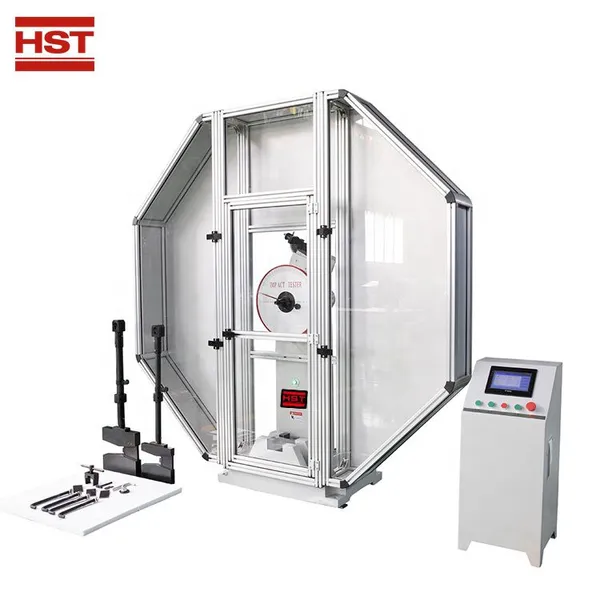

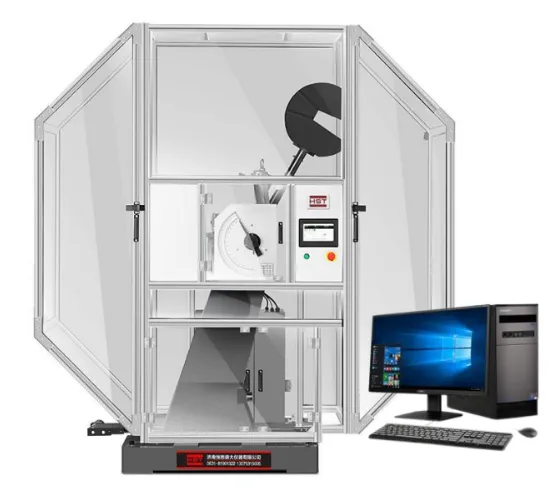

HST Digital Display Impact Testing Machine High Precision Touch Screen Pendulum Impact Testing Machine JBS-600C
US$ 8000 - 11800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Touch Screen Pendulum Impact Testing Machine Measuring Charpy Impact Resistance of Metal Impact Testing Machine JBS-300CUS$ 8800 - 10800MOQ: 1 Set -
HST Charpy Impact Testing Machine JB-C Series High Accuracy IP65 Protection 1-Year Long-Term Material Testing Semi-automaticUS$ 8500 - 10800MOQ: 1 Set
-
HST Pendulum Charpy Impact Testing Machine Determine the Impact Toughness of Metal Materialsunder Dynamic Load JB-450CUS$ 8000 - 9900MOQ: 1 Set
-
HST JBS-300B Digital Display Impact Testing MachineUS$ 3000 - 3900MOQ: 1 Set
-
HST 300J 150J Motorized Impact Testing Machine Charpy Impact Testing Machine for Test HST JB-300BUS$ 2000 - 3000MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Digital Display Impact Testing Machine
Machine type
C
Model
HST JBS-600C
Max. impact energy
600J
Optional pendulum
300J 450J
Impact speed
5.24 m/s
Angle resolution
0.025°
Striking angle
150°±1
Support span
40+0.2mm
Power supply
3 phase, AC380V±10%, 50Hz
HST JBS-600C Digital Display Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
This machine is used for measuring the Charpy impact resistance of metal and other materials.
Standard:
ISO 148-1 -Metallic materials - CHARPY pendulum impact test.
JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials.
EN 10045-1 -Metallic materials-CHARPY impact test.
ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallicmaterials.
GOST 9454-78 -Impact bending test method at low, room and high temperatures.
MODEL | HST JBS-600C |
Machine type | Type C |
Display type | with dial gauge and touch screen display |
Max. impact energy | 600J |
Optional pendulum | 300J, 450J |
Pendulum moment 150J | 80.3848Nm |
Pendulum moment 300J | 150.7695 Nm |
Pendulum moment 450J | 241.1543 Nm |
Pendulum moment 600J | 321.5390 Nm |
The distance between the pendulum shaft and impact point | 750mm |
Impact speed | 5.24 m/s |
Angle resolution | 0.025° |
Striking angle | 150°±1 |
Support span | 40+0.2mm |
Radius of support curvature | R1~1.5mm |
Angle of support taper | 11±1° |
Striking edge radius | 2 (R2) or 8 (R8)mm |
Striking thickness | 16 mm |
Striking tip angle | 30° |
Standard specimen dimension | 55×10×10mm, 55×10×7.5mm, 55×10×5mm according to customer sample size |
Power supply | 3 phase, AC380V±10%, 50Hz |
Dimensions | 2220×900×2220mm |
Net Weight | 1000KG |
Company Profile
Recommend Products
50N-5KN Single Column Universal Testing Machine | Electronic Universal Testing Machine with 10kN Pneumatic Grips | Electronic Universal Testing Machine with Hydraulic grips |
Electronic Universal Testing Machine with Temperature Chamber | 50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine | 100kN -2000kN Servo Hydraulic Universal Testing Machine |
Customer Photos
Exhibition
Certifications
FAQ
Factory + trade (integration),20 years focusing on test instruments field,15 years exporting experience.
How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part
parts change, necessarily, our engineers may go to your place for better service.
Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
