HST 600J Computer Control Pendulum Impact Testing Machine Impact Testing Machine JBW-600C for Laboratory
US$ 10000 - 11500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Display:
Computer and dial display
Accuracy Class:
High Accuracy
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Touch Screen Pendulum Impact Testing Machine Plastic Izod Charpy Impact Tester Rubber Strength Testing Machine JBS-750CUS$ 7800 - 11800MOQ: 1 Set -
HST Digital Display Impact Testing Machine High Precision Touch Screen Pendulum Impact Testing Machine JBS-600CUS$ 8000 - 11800MOQ: 1 Set
-
HST Touch Screen Pendulum Impact Testing Machine Measuring Charpy Impact Resistance of Metal Impact Testing Machine JBS-300CUS$ 8800 - 10800MOQ: 1 Set
-
HST Charpy Impact Testing Machine JB-C Series High Accuracy IP65 Protection 1-Year Long-Term Material Testing Semi-automaticUS$ 8500 - 10800MOQ: 1 Set
-
HST Pendulum Charpy Impact Testing Machine Determine the Impact Toughness of Metal Materialsunder Dynamic Load JB-450CUS$ 8000 - 9900MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer control pendulum impact testing machine
Model
HST JBW-600C
Max. impact energy
600J
Pendulum Torque
241. 1543 Nm
Impact speed
5.24 m/s
Pre-rising angle of the pendulum
150°
Thickness of impact blade
16mm
Angle of support taper
11±1°
Power supply
380V, 50Hz , 3 wire and 4phrases

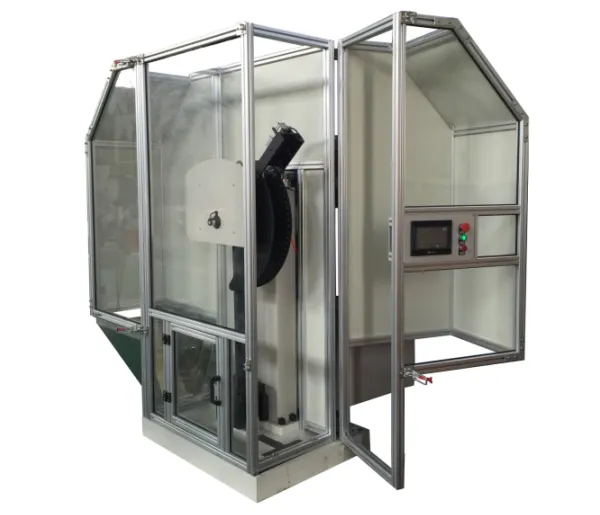

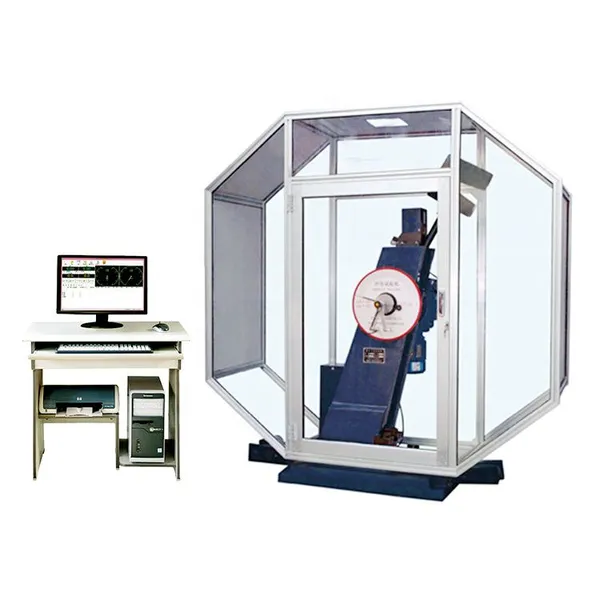

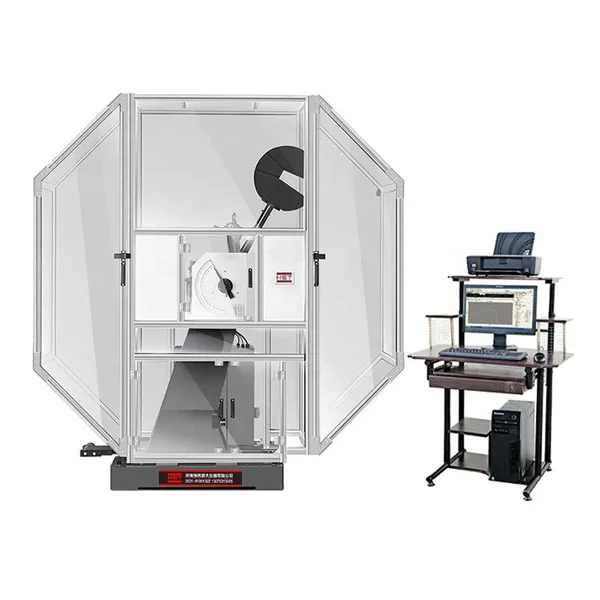

HST JBW-600C Computer Control Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application :
JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials.
EN 10045-1 -Metallic materials-CHARPY impact test.
ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallic materials.
GOST 9454-78 -Impact bending test method at low, room and high temperatures.
HST JBW-C Series Pendulum Impact Testing Machine meet the growing demand for accurate and repeatable impact testing of metallic materials in accordance with ASTM and ISO specifications. They are EN 10045-2 ‘CHARPY impact test on metallic materials’ – Method for the verification of impact testing machines and ASTM E 23, ‘Standard test methods for notched bar impact testing of metallic materials’. As a general guideline, in North America, most users prefer verifications to the ASTM E 23 method while Europe generally require EN 10045-2 verifications. The JBW-C system provides a rigid, integrated assembly offering maximum mechanical performance in order to attain true pendulum impact test specimen energy for metallic materials. Incorporates a rigid, compound pendulum mounted on a reduced friction shaft assembly and a solid, vibration-free base. The pendulum is of one-piece construction, designed with a bifurcated support member and an accurate pendulum geometry. The rigidity of the system prevents excessive elastic energy losses and reduces excessive vibration mode bending effects.
Standard:
ISO 148-1 -Metallic materials - CHARPY pendulum impact test.
JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials.
EN 10045-1 -Metallic materials-CHARPY impact test.
ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallic materials.
GOST 9454-78 -Impact bending test method at low, room and high temperatures.
MODEL |
HST JBW-600C |
Machine type |
Type C |
Display type |
Computer and dial display |
Max. impact energy |
600J |
Optional pendulum |
300J, 450J |
Pendulum moment 150J |
80.3848Nm |
Pendulum moment 300J |
150.7695 Nm |
Pendulum moment 450J |
241.1543 Nm |
Pendulum moment 600J |
321.5390 Nm |
The distance between the pendulum shaft and impact point |
750mm |
Impact speed |
5.24 m/s |
Angle resolution |
0.025° |
Striking angle |
150°±1 |
Support span |
40+0.2mm |
Radius of support curvature |
R1~1.5mm |
Angle of support taper |
11±1° |
Striking edge radius |
2 (R2) or 8 (R8)mm |
Striking thickness |
16 mm |
Striking tip angle |
30° |
Standard specimen dimension |
55×10×10mm, 55×10×7.5mm, 55×10×5mm according to customer sample size |
Power supply |
3 phase, AC380V±10%, 50Hz |
Dimensions |
2220×900×2220mm |
Net Weight |
1000KG |
Working environment:
2 The relative humidity :≤ 85%;
3 In an environment free of corrosive media and strong magnetic field interference;
4 Installed on a concrete foundation with a thickness not less than 300mm or fixed on a foundation greater than 880kg;
5 The level of the installation reference surface on the base is adjusted to within 0.5 / 1000.
