Windows Handle Cycles Test Machine

Windows Handle Cycles Test Machine photo-1

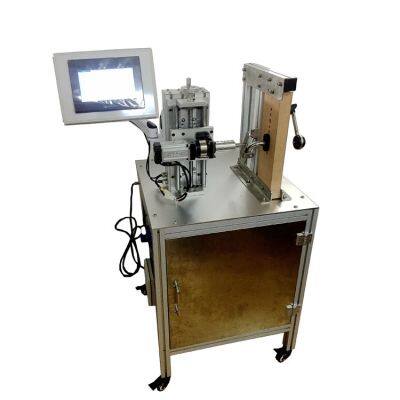

Windows Handle Cycles Test Machine photo-2

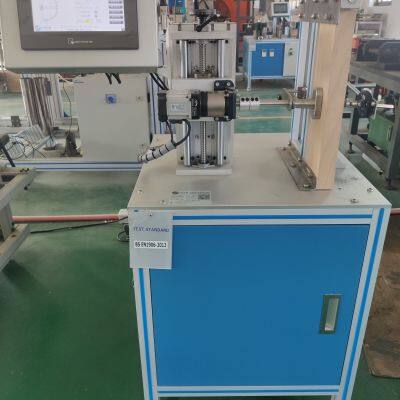

Windows Handle Cycles Test Machine photo-3

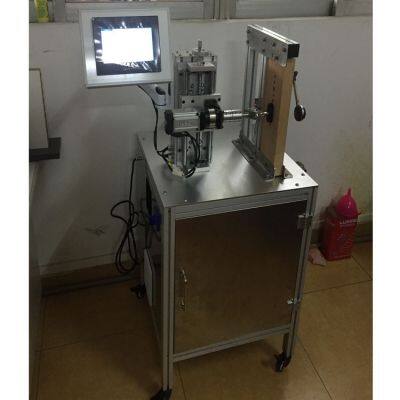

Windows Handle Cycles Test Machine photo-4
Windows Handle Cycles Test Machine photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Strength Testing Machine
Warranty:
One year
Weight:
0-100Kg
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
45 days
Type Strength Testing Machine
Warranty One year
Weight 0-100Kg
Power Source AC220V
Accuracy Grade 0.5
Max Diameter of Workpiece >3200mm
Mass Scope of Workpiece >20000kg
Maxcapacity <1000KN
Load Way Electronic Load
Oil Cylinder Position Other
Control Computer Control
Loading Method Dynamic Load
Display Digital
Transport Package wooden box
Specification EN13126-3
Trademark Zon-test
Origin China

Equipment Function:

       The equipment is customized according to the customer's requirements, which is used to test the durability of the window handle. The Panasonic PLC controller is used to operate the equipment. The servo motor with reducer drives the handle to rotate. The touch screen as HMI can set the operation angle, torque limit, cycle times, and automatically record the maximum torque value in each cycle along the test. When the torque exceeds the set value, the equipment will stop automatically Test. During the test, axial load can be applied at the end of handle and another load can be applied on frame side.

Equipment parameters:

a)      Power supply: AC 220V 50Hz 1kw, power overload circuit breakers and electrical earth-leakage protection

b)      Framework: independent test stand, 40 square tube welded test stand powder coated black color, four doors with cabinet locks.

c)       Emergency stop in both side of machine to power off equipments immediately

d)      Shielding case and door : 8mm clear PMMA, with door switches

b) Test station: 2 stations, one for left and one for right.

c) Equipment space: 1.0m long x 0.6m wide x 1.4m high;

d) Handle operation angle: settable,

e) Driving torque: 3Nm

f) Driving device: Panasonic servo motor;

g) PLC control: test parameter setting, fault monitoring and shutdown, record and save.

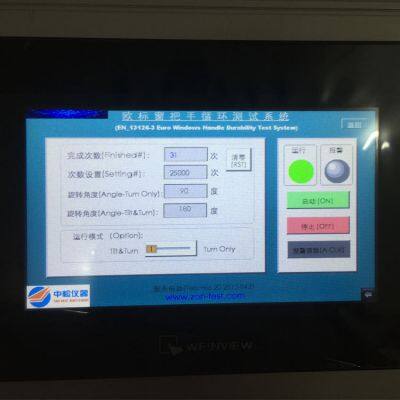

h) 7” Touch screen, UI in English and

i) Standard: customized according to customer requirements

                j) Load: 3.5kg, or dumbbell piece
