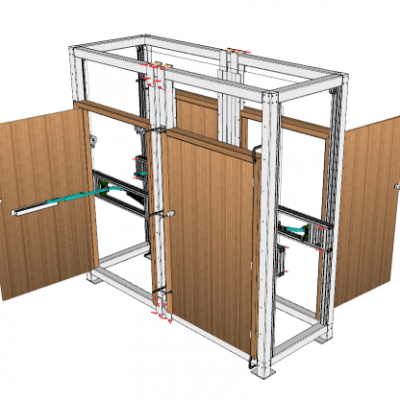

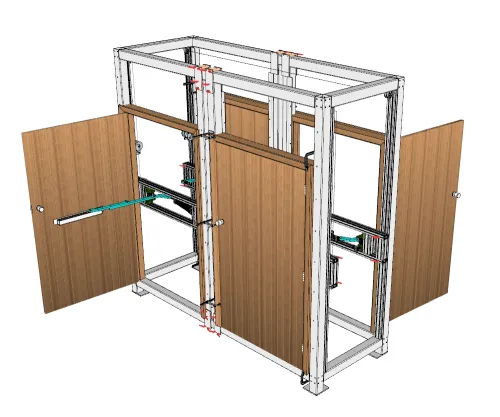

4-doors test machine
Test equipment function：

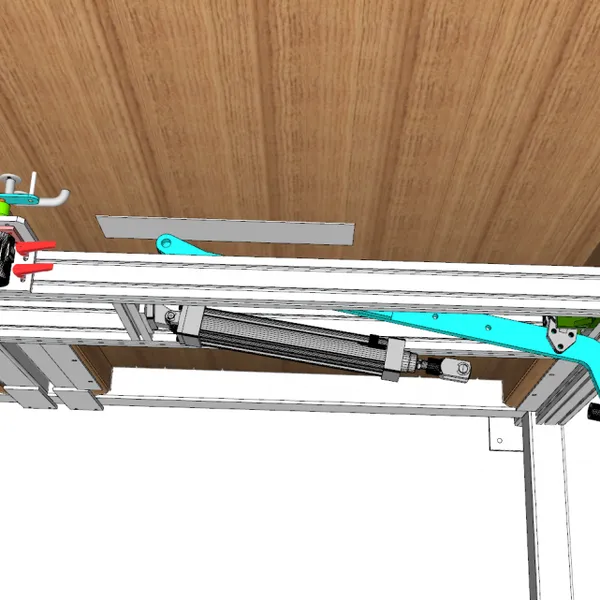

The test machines are designed forhinged door durability test.The test doors are actuated by air cylinder and monitor and sensor. The equipment includes four stations and individual control. The equipment includes a touch screen to set, control and display the test cycles.
Specification:
a) Frame：heavily duty steel tube and baking finish；

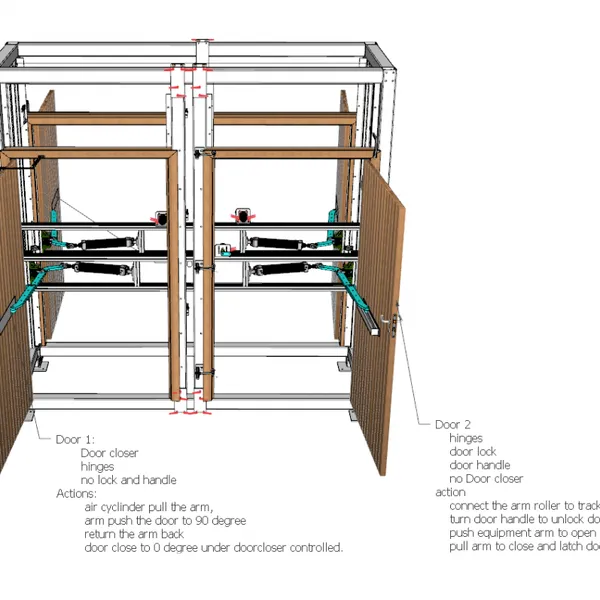

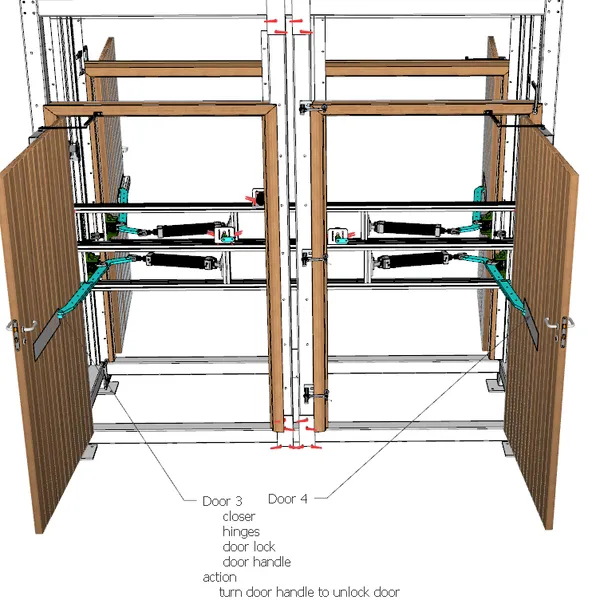

b) Test sites：
·Fire rated doors (2 doors)
o 3 hinges
o Door closer
o Lock
o Handle
· Fire rated doors, push/pull (1 door)
o 3 hinges
o Door closer
· Non fire rated doors (1 door)
o 2 hinges
o no closer
o handle
o lock
c) Equipment typical size：L1.6mXW1.6 mX H2.6m ；
d) Operation space：3.5mx3.5mx2.6m；
e) Test door maximum size：1000mmx 2000mm (customized dimension, need claimed by client)
f) Door opening angle：0~90°±10°(adjustable)
g) HMI：7”touch screen,
h)Test standards： EN 14600,EN 1191；
