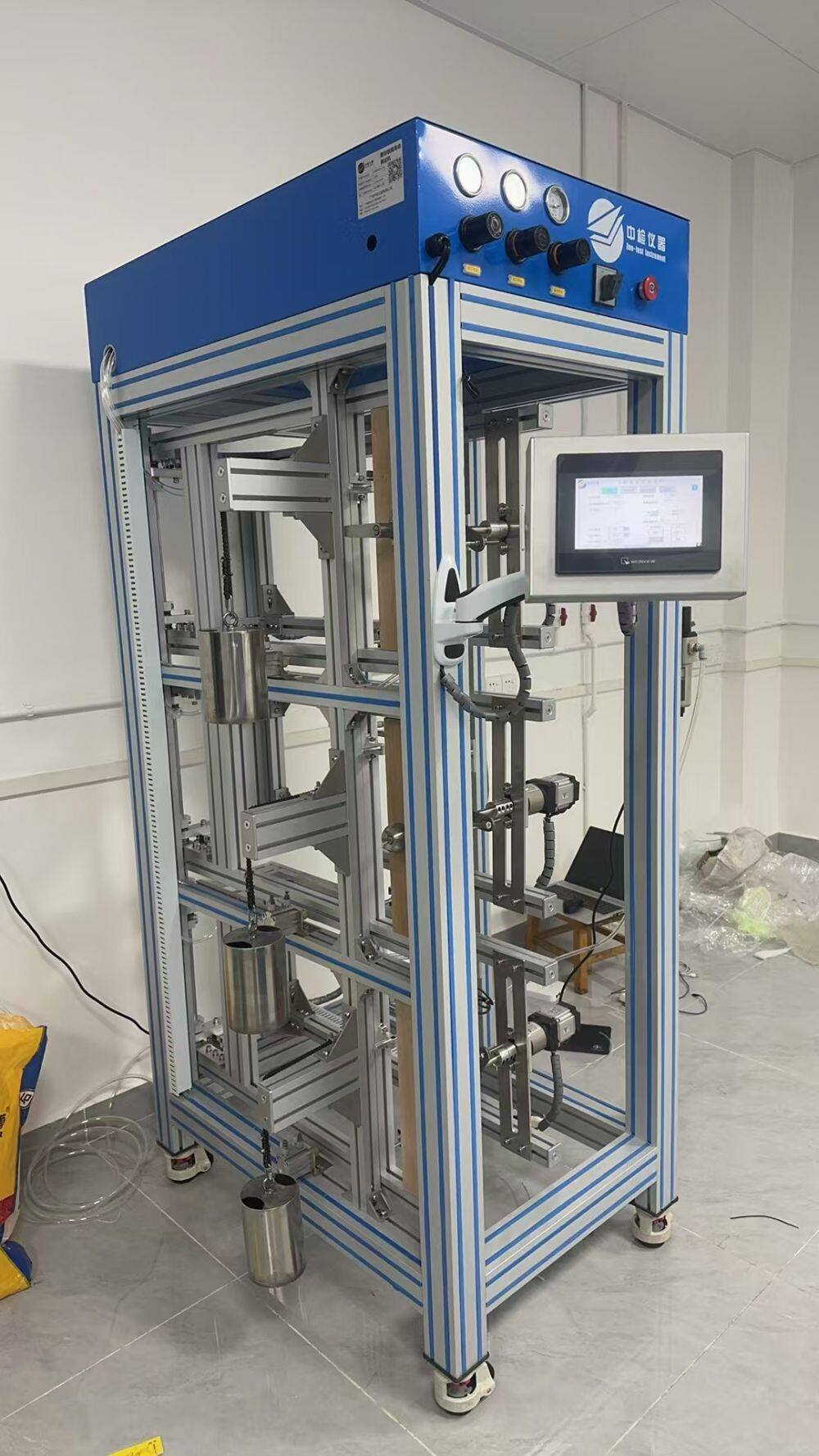

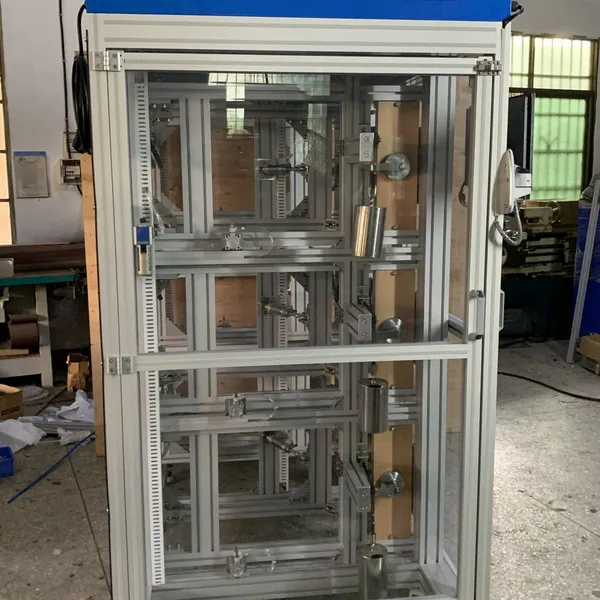

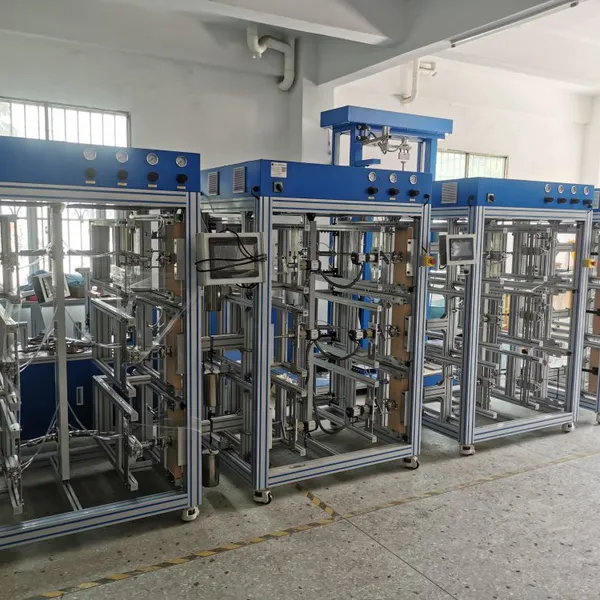

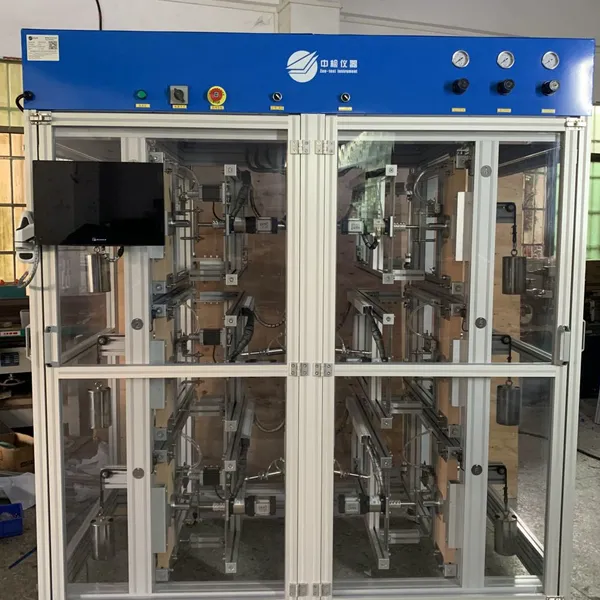

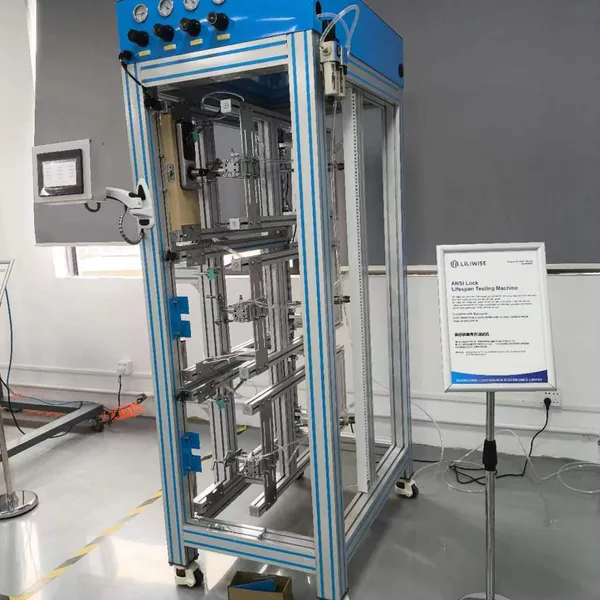

BHMA Lock Cycle Test Machine

·Test equipment function

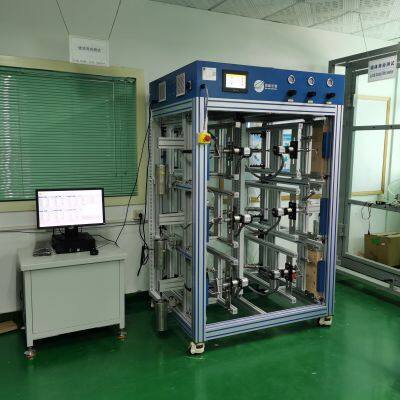

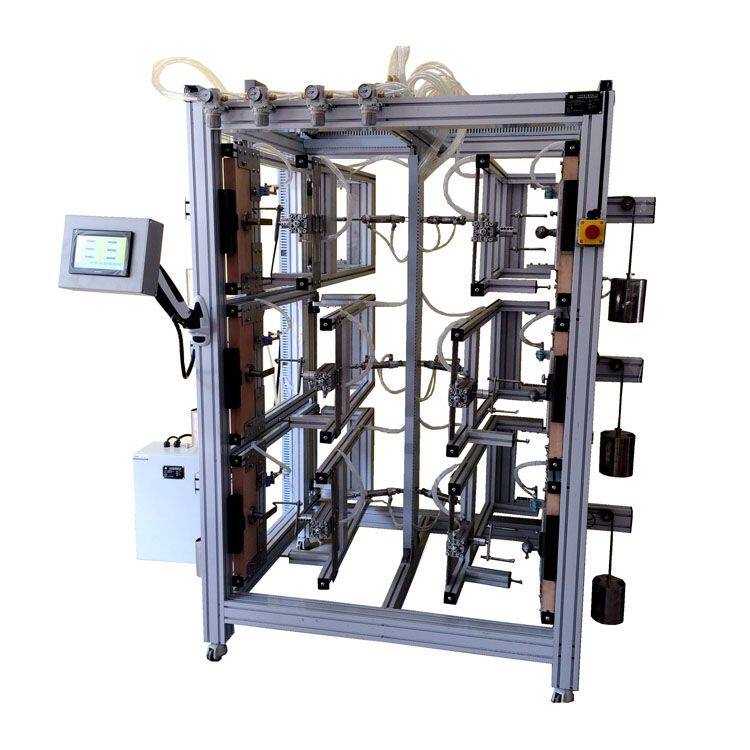

     This automatic equipment is designed to simulate the operation of bored lock or mortise lock according to BHMA standards. It meets requirement of multiple BHMA standards. One equipment has six stations and monitors the lock status independently. Further, all stations can be set to run the electrical lock reliability test via RFID card. There is an optional function to operate turn to extract/retract deadbolt by servo motor.

·Equipment parameters：

   a.  Model：ZNBHMA-6L

   b.  Size：L 1.6 m * W 1.1 m * H 2.0 m

   c.  Turn operation: Step motor to operate turn or for three of six stations

   d.  Other operation (pull door, hold door, RFID card movement): Airtac Pneumatic cylinders.

   e.   Door handle operating torque：max. 5 Nm

   f.   Closing loading/force: 22N & 44N stainless steel barrel with steel ball

   g.   PLC: Panasonic ;  Pneumatic parts: Airtac brand

    h.  Frame: Standalone frame constructed by high strength aluminum profile in 8080 size

    i.   Test doors: Six test doors in 36 inch width

    j.   Handle operation: Panasonic Servo motor to operate handle for all stations

    k.   Handle operating angle: cw/ccw, angle set via software

     l.    HMI: 15.6 inch touch screeen with Software.

    m.  Door closing sensor: Panasonic optical sensor

     n.   The equipment meet with standards requirement of ANSI/BHMA A156.13, A156.25, A156.2, A39, A12,

    o.   Lock block mounting space: 12” tall  x 5.125” wide x 1.75” thick wooden block (wooden block is not included for oversea customer)
