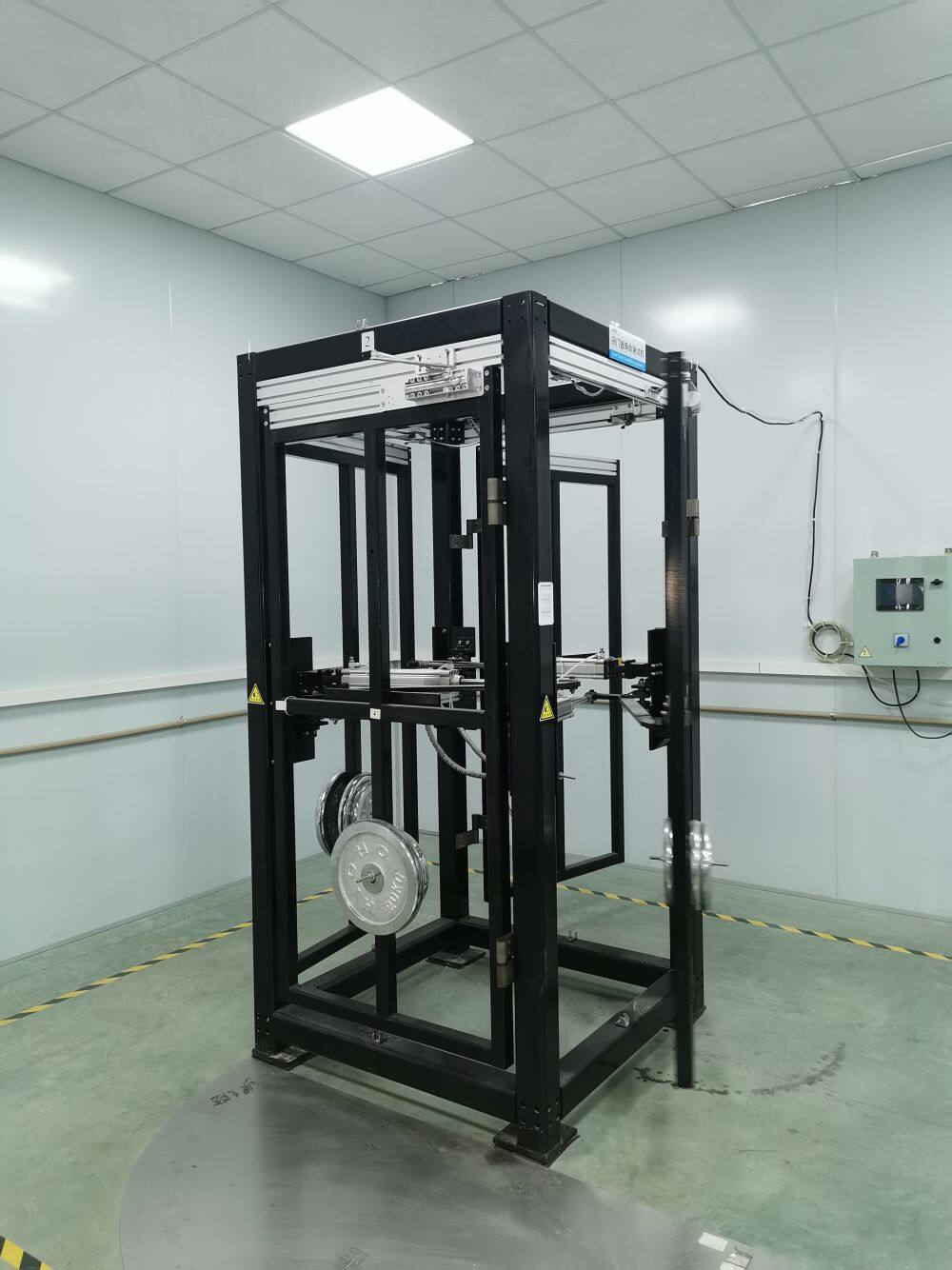

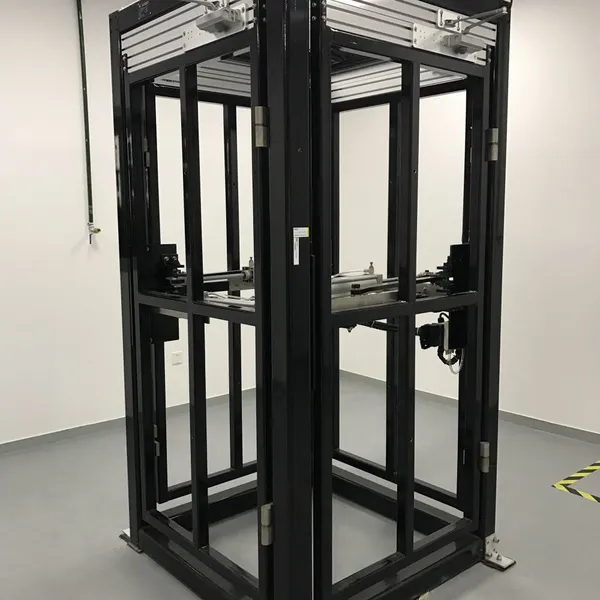

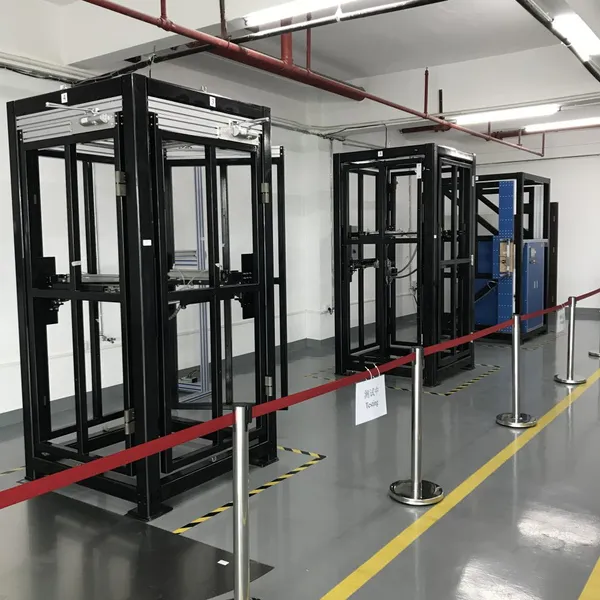

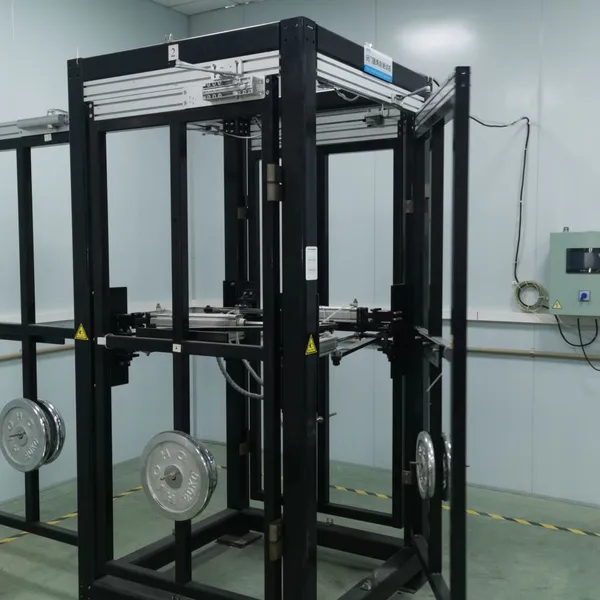

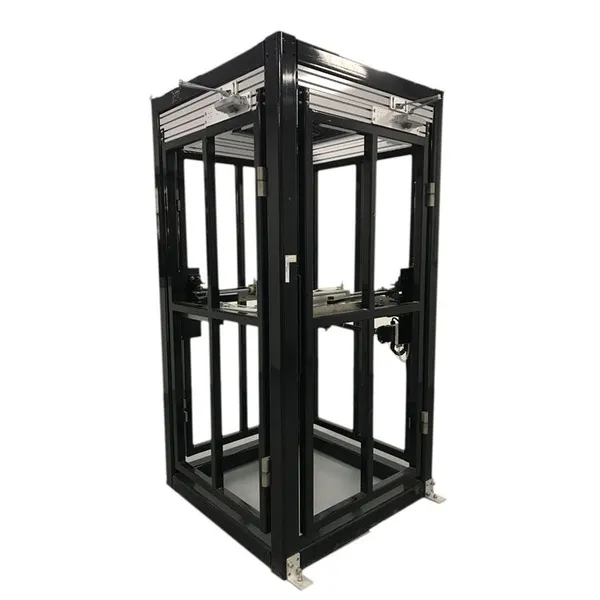

Help CenterDoor Closer Durability Test Machine
Related Products
·Test equipment function
The Door closer cycle test machines are designed for durability test of different types of door closer. It can be easily set to test standard arm, parallel arm, and concealed mounting door closer. The test doors are actuated by air cylinder and monitor and sensor. And test door mass, opening speed, closing speed and door opening angle can be adjusted according to power sizes as EN, BHMA standard required. The equipment includes multiple stations and individual control. If door closer failed, the equipment can stop contain test door automatically. The equipment includes a touch screen to set, control and display the test cycles.
·Equipment parameters：
Model：ZNEN1154-4P
Size：L 1.3 m * W 1.3 m * H 2.6 m
Test door size： 916mmx 2000mm
HMI：7”touch screen
Additional test function: include door closer overload test fixture
Frame：heavily duty steel tube and baking finish
Operation space： 3.5m * 3.5m * 2.6m
Door opening angle：0~90°±5°(adjustable)
Pneumatic parts: Airtac brand
Test standards： EN 1154,ANSI/BHMA A156.1
Test door：4 test doors，40kg（other door mass can be applied by user）
