BHMA Lock Strength Test Machine

BHMA Lock Strength Test Machine thumbnail-1
BHMA Lock Strength Test Machine thumbnail-2
BHMA Lock Strength Test Machine thumbnail-3
BHMA Lock Strength Test Machine thumbnail-4
BHMA Lock Strength Test Machine thumbnail-5
BHMA Lock Strength Test Machine photo-1
BHMA Lock Strength Test Machine photo-2
BHMA Lock Strength Test Machine photo-3
BHMA Lock Strength Test Machine photo-4
BHMA Lock Strength Test Machine photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Strength Testing Machine
Warranty:
One year
Weight:
100-500Kg
Contact Supplier Request Quote Chat Now
Guangzhou Zhijian Instruments Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Strength Testing Machine
Warranty One year
Weight 100-500Kg
Power Source AC220V
Accuracy Grade 0.5
Max Diameter of Workpiece >3200mm
Mass Scope of Workpiece >20000kg
Maxcapacity <1000KN
Load Way Electronic Load
Oil Cylinder Position Other
Control Computer Control
Loading Method Dynamic Load
Display Digital
Transport Package wooden box
Specification ANSI/BHMA A156.2
Trademark Zon-test
Origin China

Test equipment function：

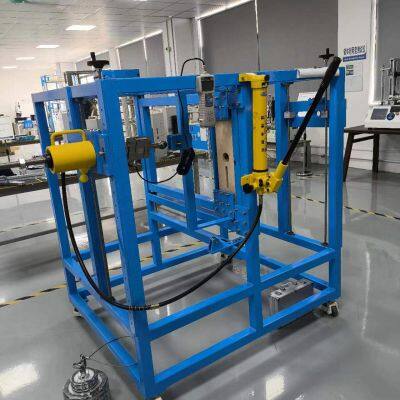

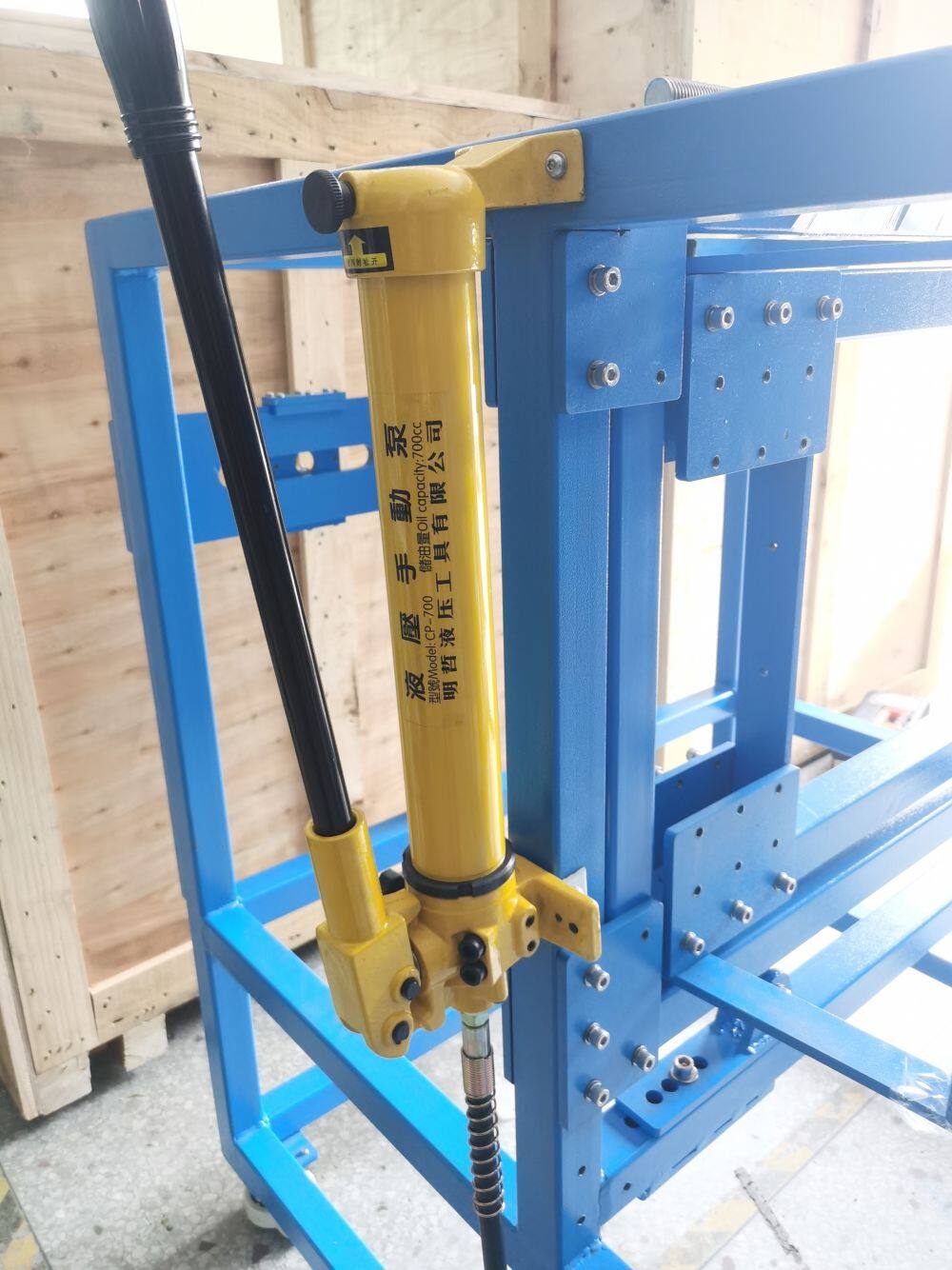

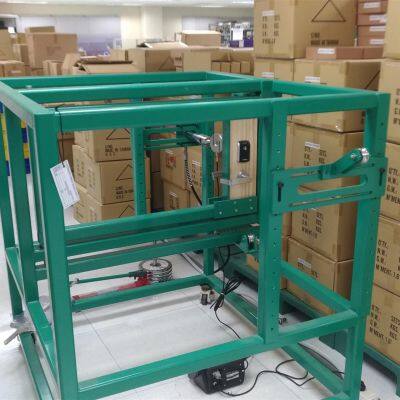

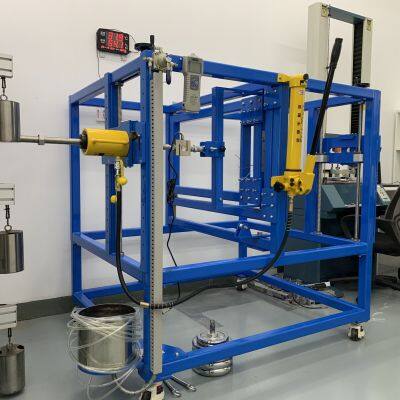

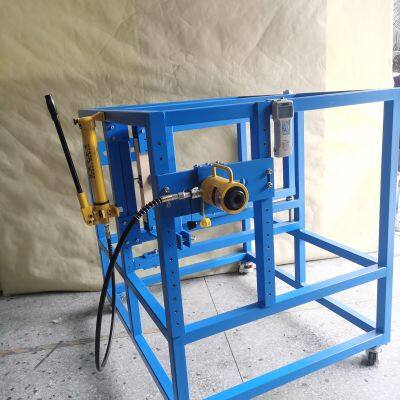

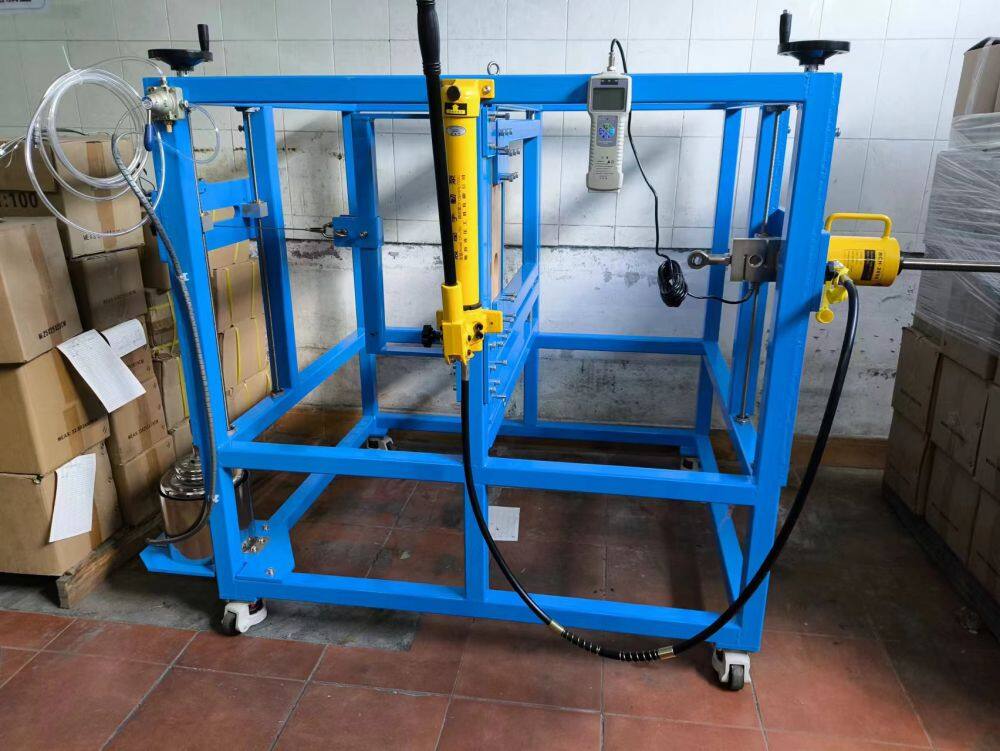

      The equipment is mainly composed of three parts: frame, hydraulic loading device and force sensor. The manual hydraulic pump can easily load the test force. A 36 inch width test door can be opened in double direction.


 Test items:

     1.Force to Retract Unloaded Bolt

     2.Force to Retract Preloaded Bolt (Warped Door)

     3.Force to Latch Door

     4.Axial Load Test

     5.Vertical load test

     6.Latch Bolt Strength

     7.Unlocked Entry Handleset Load Test

Equipment parameters：

Model： ZNBHMA-13ST

Frame size：L 1.2 m * W 1.2 m * H 1.3 m

Force meter：1000 kg

Space：L 2.0 m * W 1.5 m * H 1.3 m

  Typical Wooden block：380  * 130  * 40 mm

Test Standards : ANSI/BHMA A156.2, A156.13, ANSI/BHMA A156.25, ANSI/BHMA A156.36

ANSI/BHMA A156.39, ANSI/BHMA A156.40
