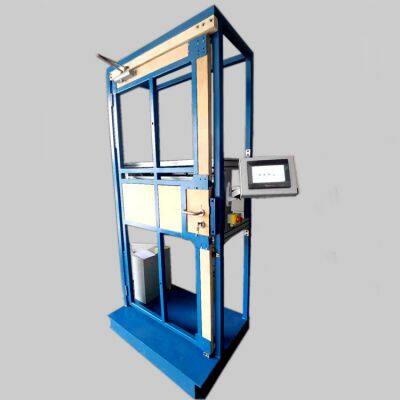

Door Hardware durability test Machine

Test equipment function：

   The door hardware durability test machine is customized according to the customer's requirements for durability test of hinges, door closer, mortise lock, Dead lock and panic exit device. The test doors are actuated by air cylinder and monitor and sensor. And test door mass, opening speed, closing speed and door opening angle can be adjusted according to test requirements. If test sample failed, the equipment can stop test door automatically. The equipment includes a touch screen to set, control and display the test cycles.

Specification:

a)   Frame：5050 heavily duty steel tube and baking finish；

b)   Test door：4040 steel tube and baking finish

1 test doors，about 40kg（other door mass can be applied by user）

c)   Equipment size：L1.2m x W0.8m x H2.5m ；

d)   Operation space：1.2 m x 1.6 m x 2.5m；

e)   Test door size： 1000mm x 2150mm；

f)   Door opening angle：0~90°±5°(adjustable)

g)   Power supply: AC 220V 50Hz 1kw, power overload circuit breakers and electrical earth-leakage protection

h)   Emergency stop in both side of machine to power off equipment immediately

i)   HMI：7”touch screen, UI in English

j)   PLC: Panasonic, test parameter setting, fault monitoring and shutdown, record and save.

     k) Test standards： EN 1154
