Help CenterBHMA Lock Security Test Frame
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Strength Testing Machine
Warranty:
One year
Weight:
500-1000Kg
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
45 days
Related Products
Type
Strength Testing Machine
Warranty
One year
Weight
500-1000Kg
Power Source
AC220V
Accuracy Grade
0.5
Max Diameter of Workpiece
>3200mm
Mass Scope of Workpiece
>20000kg
Maxcapacity
<1000KN
Load Way
Electronic Load
Oil Cylinder Position
Other
Control
Computer Control
Loading Method
Dynamic Load
Display
Digital
Transport Package
wooden box
Specification
ANSI/BHMA A156.2
Trademark
Zon-test
Origin
China
Test equipment function：

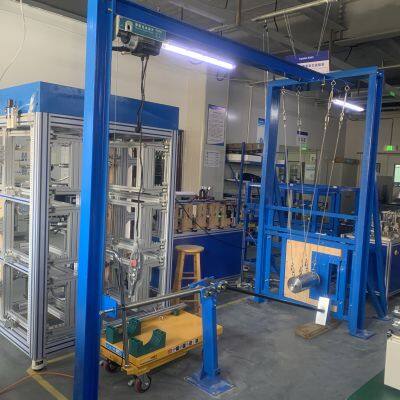

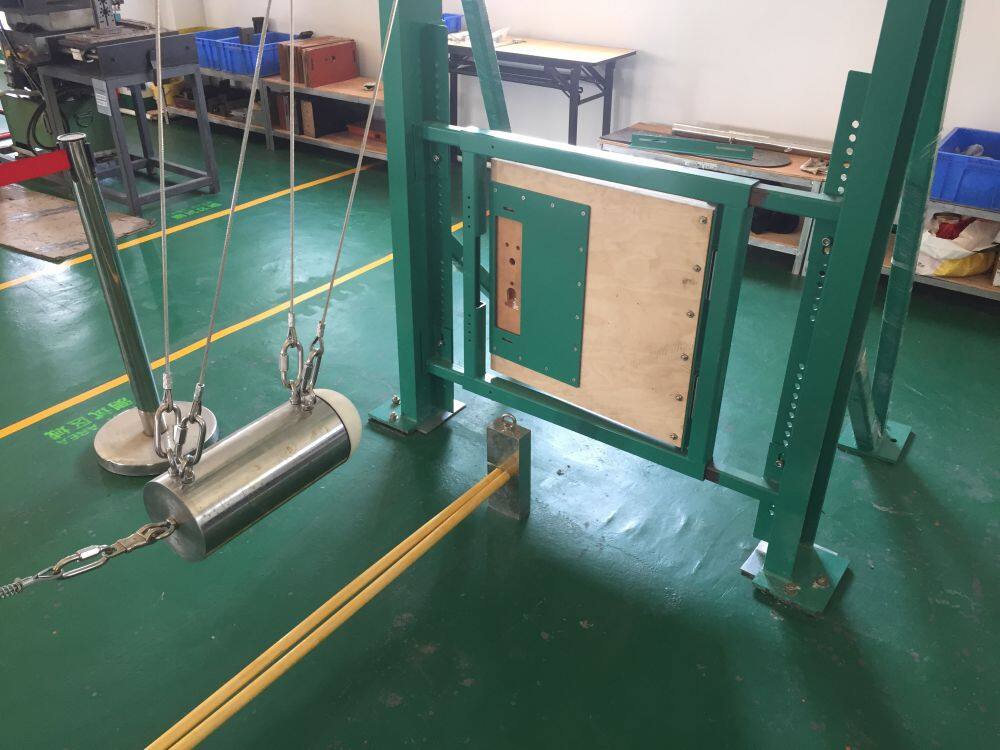

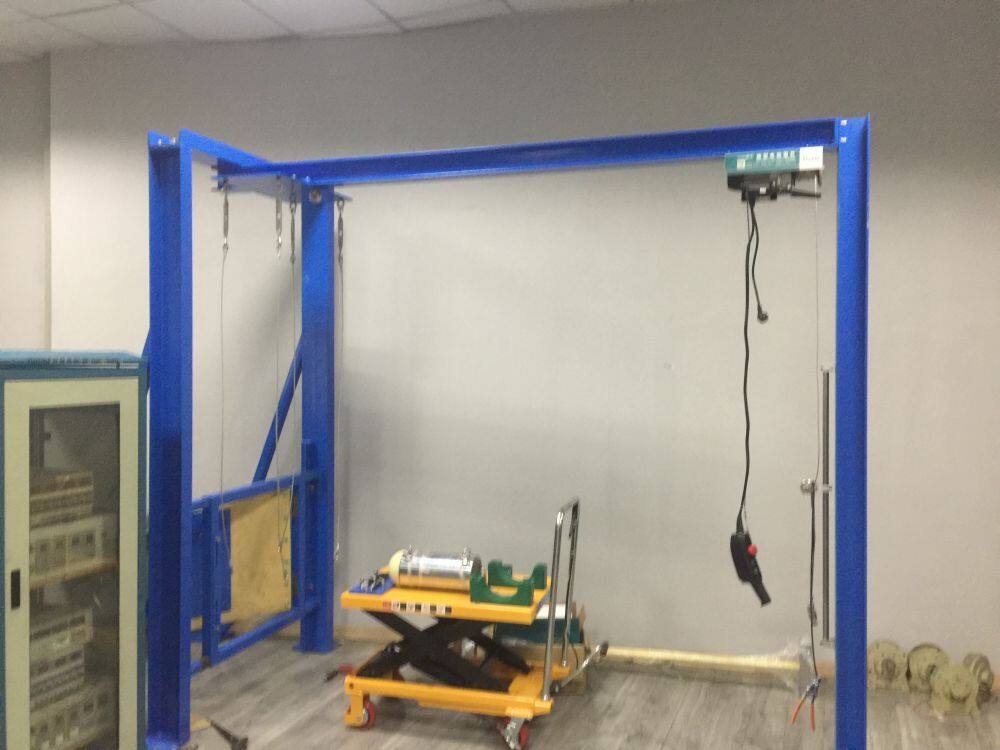

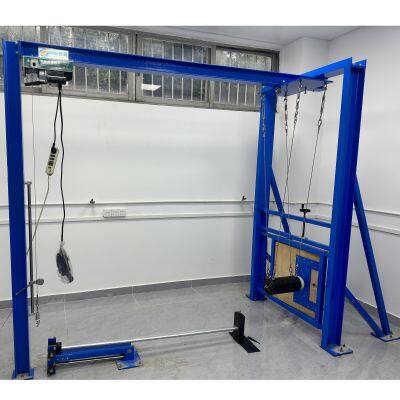

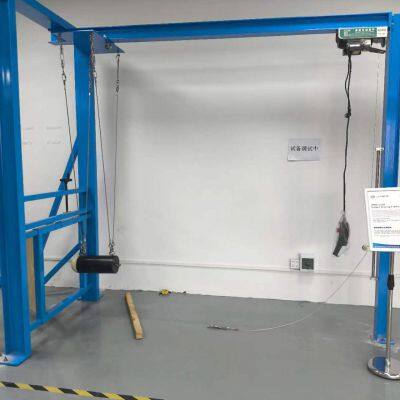

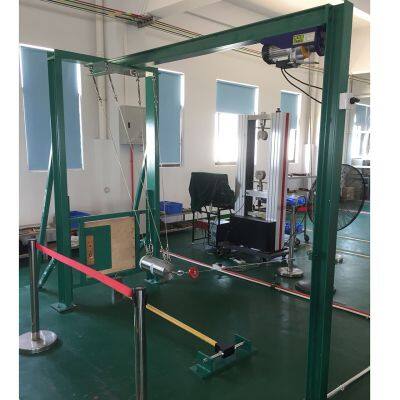

The equipment is mainly composed of three parts: frame, test door and three type of impactor. The test door can be adjusted up/down and left/right. The lock is mount to the test door and lock in closed position to perform he impaction tests included:
Test items:
1. Knob, Lever, Handle set, Thumbpiece, or Paddle Impact Test
2. Cylinder Guard (sectional trim), or Escutcheon Vertical Impact Test
3. Cylinder Face Impact Test
4. Dead Bolt or Latch Bolt or Dead Bolt and Latch Bolt Impact Test
Equipment parameters：
Model： ZNBHMA-13SE
Size：L 3 m * W 1.2 m * H 2.5 m
Frame：CH steel frame anchored one floor
Test door：follow ASTM F476
Test standards：ANSI/BHMA A156.2, A156.13, ANSI/BHMA A156.25, ANSI/BHMA A156.36
