Help CenterDrawer Slides Test Machine
Related Products
Test equipment function：

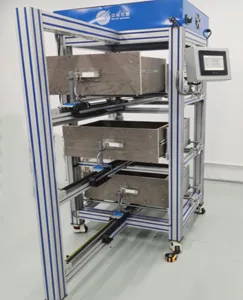

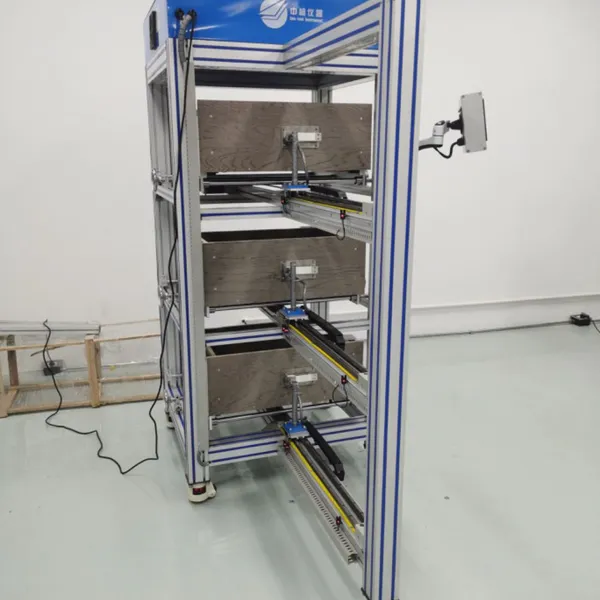

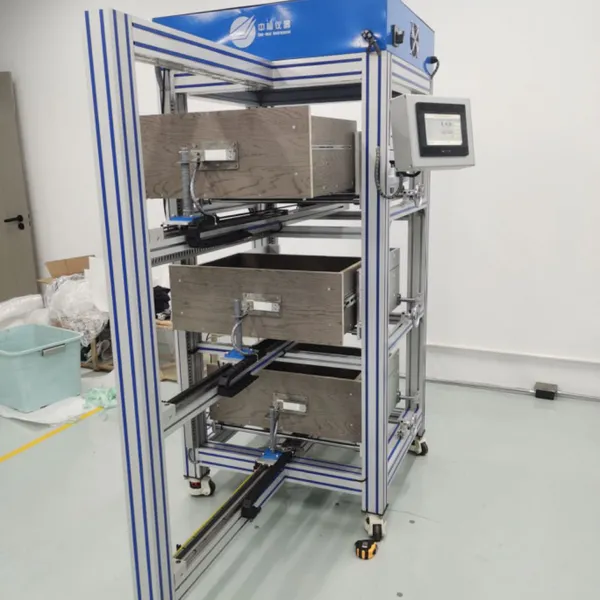

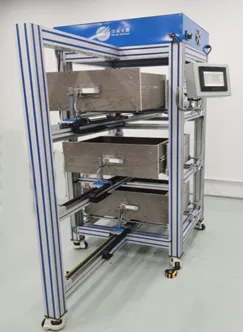

The equipment is designed according to ANSI/BHMA A156.9 and meets the standard requirements. It adopts a 3-station design with a small volume and overall aesthetic appearance. It uses a stepper motor to control and drive the test drawer, providing precise control. The travel can be set freely through the touch screen, and sensors are equipped to monitor the status of the test drawer and the position of the drive device. It is easy to install, flexible to adjust, stable and reliable to operate, and has low noise.
The stepper motor drives the test drawer through a belt and the chute connects to the equipment, allowing for automatic closing of the drawer slide with a buffer.
Equipment parameters：
Model：ZNBHMA-4D
Size：L 1.5 m * W 0.9 m * H 1.7 m
Equipped with aluminum backplane and front L mounting plate
Drive device: 3 stepper motors, each station is independently controlled
Frame: aluminum profile stand-alone test machine
3-station machine with casters for easy handling
Standard: ANSI/BHMA A156.9 、EN15338

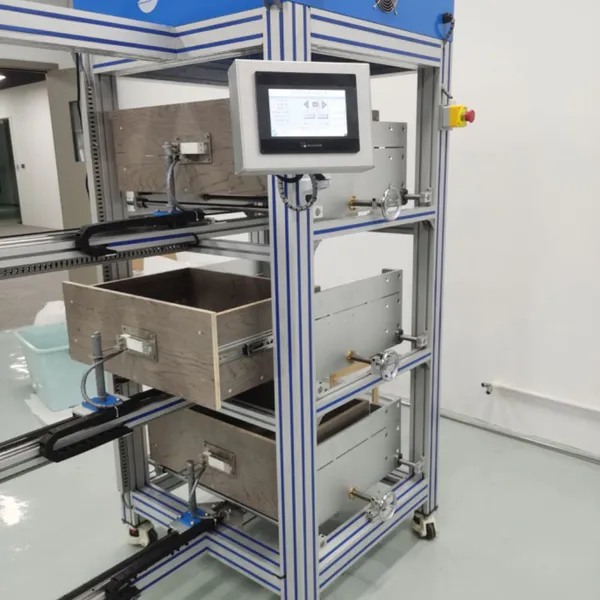

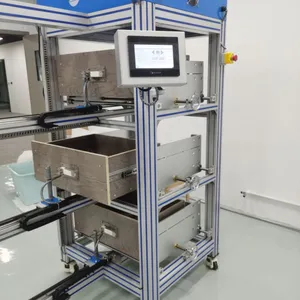

Human-machine interface: touch screen test interface, life cycle setting, power-off hold count display
Standard drawer: Each workstation is equipped with two drawers: size: 610 x 457mm, size: 610 x 533mm, adjustable installation width)
