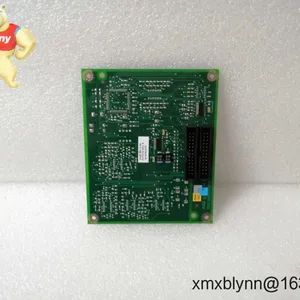

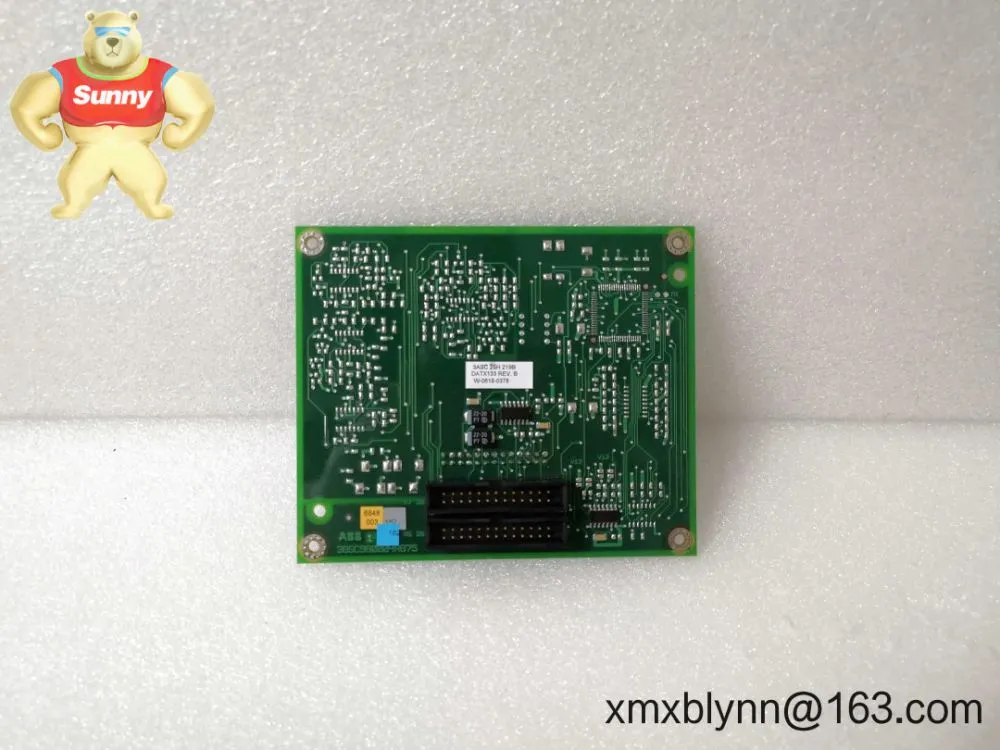

The ABB 3ASC25H219B (model code DATX133) is an industrial I/O module used in ABB control systems to bring reliable field signals into your DCS/PLC. From my experience, it’s commonly deployed as a replacement or expansion part in brownfield plants where uptime, compatibility and predictable behavior matter more than flashy specs.
You’ll typically find the DATX133 in cabinet-based installations alongside other ABB modules, handling standard plant signals while keeping diagnostics simple for maintenance teams. It appears to be favored in applications where stable performance and straightforward wiring are key.
Key FeaturesABB system compatibility – Designed for integration in ABB control architectures, making it a sensible drop‑in for expansions or spares.
Industrial signal handling – Supports common plant signals (e.g., 24 VDC logic, 0/4–20 mA, 0–10 V) depending on configuration, so engineers can standardize across loops.
Backplane/bus connection – Module-to-system communication via the cabinet backplane, minimizing field wiring clutter.
Status/diagnostics LEDs – You might notice that quick visual checks reduce troubleshooting time during start‑ups or routine rounds.
Robust build for control cabinets – Suited to ventilated enclosures with typical industrial EMC and electrical noise present.
Lifecycle-friendly – In many cases, maintained as a standard spare across sites to keep turnaround times short.
| Brand / Model | ABB 3ASC25H219B / DATX133 |
| Product Type | Industrial I/O module for ABB control systems |
| Power Requirements | 24 VDC control power via backplane/terminal unit (typical for this class; verify against site documentation) |
| Operating Temperature | Generally 0…55 °C in cabinet environments (check the official datasheet for the exact range) |
| Signal I/O Types | Digital and/or analog channeling depending on the DATX133 build; supports standard plant signals |
| Communication Interface | System backplane/bus connection inside the ABB I/O rack or base |
| Installation Method | Mounted in a control cabinet on the designated ABB base/terminal unit; field wiring to terminal blocks |
| Dimensions & Weight | Compact single‑slot form factor (exact figures vary; refer to ABB documentation) |
This module is typically selected for mature ABB DCS/PLC estates where consistency and serviceability are the priorities. Common scenarios include:
Power generation – Balance-of-plant signals, interlocks and analog monitoring.
Oil & gas and petrochem – Skid I/O integration, utility panels, safety-related signaling (non‑SIL use unless certified module variant).
Water & wastewater – Pump stations, flow/level instrumentation, distributed field panels.
Metals, mining, pulp & paper – Drive interfaces, process loops, temperature/pressure feedback.
Marine and terminals – Cabinetized control nodes where robust bus communication is required.
Drop‑in continuity – Staying within the ABB ecosystem reduces engineering time, drawings changes and FAT/SAT rework.
Predictable maintenance – Clear front‑face indicators and familiar wiring practices keep routine checks fast.
Supply chain efficiency – In many cases, DATX‑class modules are kept as shared spares across multiple units or sites.
Risk reduction – Using a module the operations team already knows tends to lower commissioning risk and start‑up delays.
Cabinet requirements – Install in a clean, ventilated control cabinet. Maintain ambient within the specified temperature range and avoid high vibration zones.
Wiring practices – Separate low‑level analog from high‑energy cables; use shielded cable for analog; terminate shields at a single point to control noise.
Grounding & EMC – Bond cabinet and DIN rails properly; follow ABB grounding guidance to minimize common‑mode noise.
ESD handling – Use ESD protection when inserting/removing the module; de‑energize as required by site procedures.
Commissioning – Verify hardware revision and firmware compatibility with the running system; run point‑to‑point loop checks before handover.
Routine care – Periodically inspect terminals for tightness, clean dust with dry air, and document any configuration changes in the maintenance log.
CE marked for applicable directives (EMC/Low Voltage).
UL/cUL recognition is common for ABB control modules; confirm listing for the exact revision.
RoHS compliance typically observed for modern replacements; verify per batch/part revision.
Standard manufacturer warranty is commonly 12 months from shipment; extended service coverage available through ABB lifecycle services.
If you need help matching this module to your cabinet base or confirming signal compatibility, share the system type, backplane/base model, and the current module revision on site. That’s usually enough to verify a straight replacement path.
