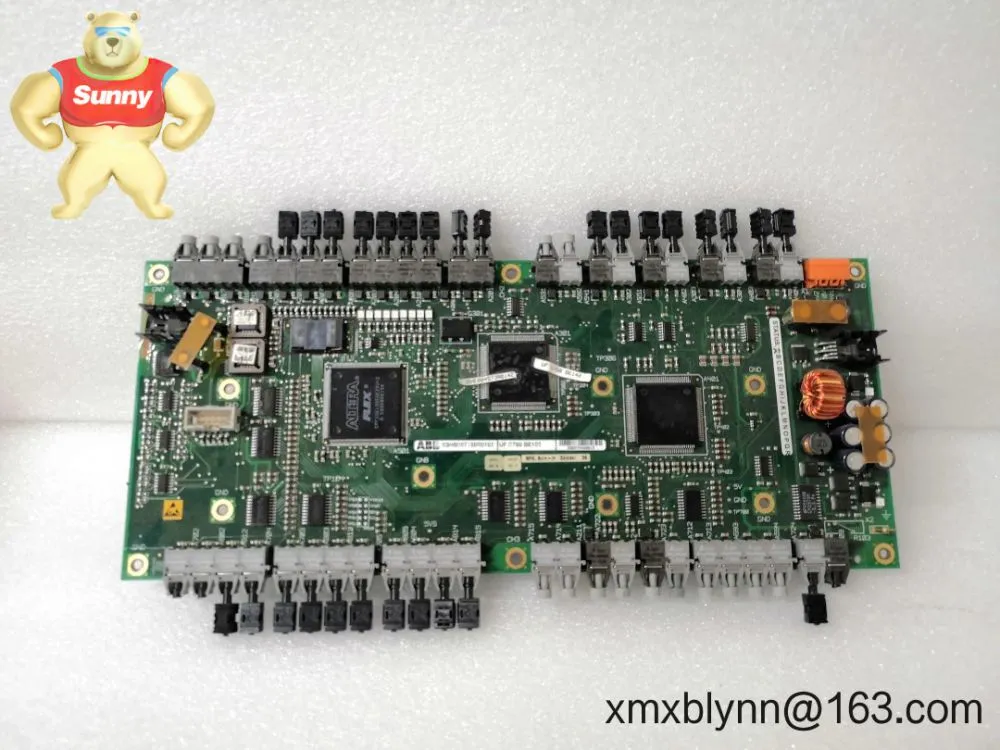

The ABB 3BHE004573R0142, identified as UFC760BE142, is a robust digital control board widely used in ABB UNITROL excitation systems and, in many cases, select medium-voltage drive cabinets. From my experience, it’s chosen for stable closed-loop regulation, fiber‑optic isolation to the power stage, and dependable 24/7 performance in demanding plants.
You might notice that OEMs favor the UFC760 family when they want predictable behavior across temperature and load swings. It typically drops into an existing rack with minimal re-parameterization, which can reduce outage windows during planned maintenance.
Purpose-built control board – Designed for ABB UNITROL excitation platforms and often used in ABB medium-voltage drive control sections, ensuring tight integration with the installed base.
Fiber‑optic interfaces – Isolated, noise‑immune links to gate units or process interfaces; helps keep EMI at bay in high-power cabinets.
Stable closed-loop regulation – Typically provides fast, deterministic control for voltage/reactive power (excitation) or converter control loops.
Diagnostics and status LEDs – Clear front-side indicators simplify commissioning and speed up fault tracing on the shop floor.
Rugged build for industrial uptime – Components and layout are selected for cabinet environments with continuous operation.
Backplane-powered design – Draws power via the host rack/backplane, reducing auxiliary wiring and simplifying replacement.
Firmware-configurable – Parameters can be adapted with ABB engineering tools to match process profiles and protection settings.
Drop‑in serviceability – In most cases a like‑for‑like swap, helping maintenance teams keep critical assets online with minimal tuning.
| Brand / Model | ABB 3BHE004573R0142 / UFC760BE142 |
| Product Type | Digital control board for excitation and converter control |
| Power Requirements | Powered via host system backplane (typical ABB rack supply) |
| Signal I/O Types | Backplane bus; fiber‑optic links to power/field interfaces; front service/diagnostics connectors (variant‑dependent) |
| Communication Interfaces | Proprietary ABB system bus; engineering/commissioning access via service port |
| Operating Temperature | Typically 0…+55 °C inside a conditioned control cabinet |
| Installation Method | Plug‑in module for ABB rack/backplane; secured within a control cabinet |
The UFC760BE142 is commonly found in:
Power generation – generator excitation (UNITROL family) for utilities and IPPs
Oil & gas, petrochem, and pipelines – MV drive cabinets for compressors and pumps
Metals, mining, and cement – high‑power drives in mills, kilns, and hoists
Marine & offshore – excitation/drives in propulsion and auxiliary systems
A maintenance lead at a combined‑cycle plant told us a like‑for‑like UFC760 swap cut their outage from a full shift to under two hours—most of the time went to firmware alignment and a quick loop check.
Reliability under load – Appears to be very tolerant of electrical noise, which is typical around big converters and excitation transformers.
Installed-base compatibility – Matches existing ABB racks and cabling; usually no panel rework, lowering project risk.
Reduced downtime – Predictable commissioning steps help maintenance teams plan tight outage windows.
Lifecycle support – Supported by ABB’s service ecosystem; spares and firmware guidance are readily available in most regions.
Cost control – A direct replacement keeps engineering hours low and avoids large retrofit bundles.
Cabinet & environment – Mount in a clean, dry, well‑ventilated control cabinet. Keep within the cabinet’s rated ambient (typically up to 55 °C) and avoid corrosive atmospheres.
Backplane seating – Inspect connectors for wear; insert the board evenly to avoid bent pins. Secure any front screws or latches to prevent vibration issues.
Wiring & fiber – Route fiber‑optic leads with gentle bend radii; segregate from high‑voltage cabling. Verify link status via LEDs after power‑up.
ESD safety – Use a grounded wrist strap and antistatic mat. Handle by edges; avoid touching components.
Parameter & firmware alignment – Match firmware to the plant’s validated version. Backup parameters before removal; restore and verify final values, especially protection thresholds.
Routine care – Quarterly dust removal with dry, oil‑free air; annual connector inspection; review event logs after trips and update firmware only during planned outages.
CE and UL compliance applies at the system level (UNITROL/excitation or MV drive cabinet). The board is built to align with those system certifications.
RoHS/REACH alignment for electronic assemblies where applicable by region.
Manufactured under ABB quality management (ISO 9001). Lot traceability and revision control are standard.
Warranty: typically 12 months from delivery when supplied as a spare; terms may vary by region and channel.
Typical supporting components include the ABB backplane/rack for the UFC7xx family, fiber‑optic patch cords for gate/field interfaces, and approved commissioning cables for the service port. If you’re consolidating spares, it often makes sense to stock one extra backplane connector set and a known‑good fiber pair alongside this board.
