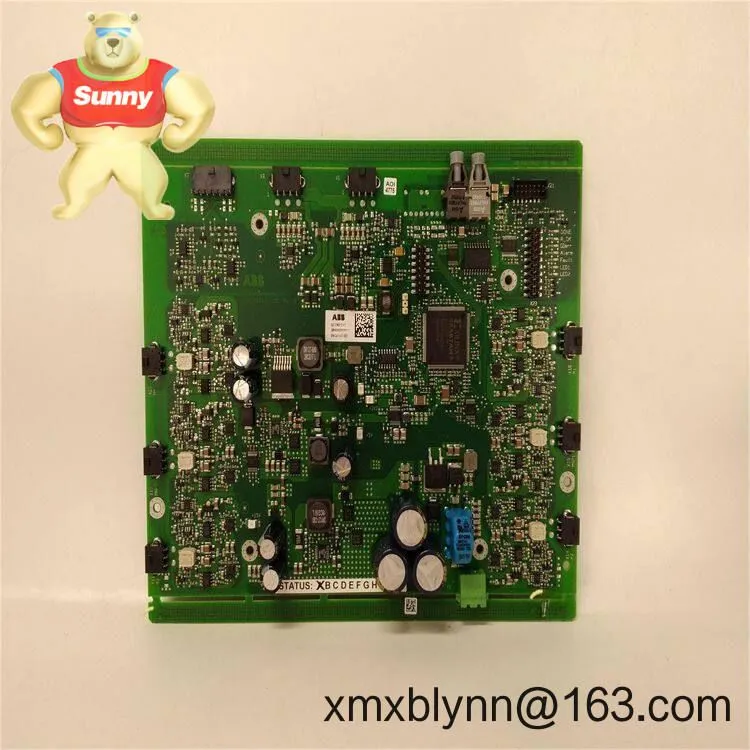

The ABB 3BHE033068P106 is a board-level spare engineered for ABB industrial drive and excitation platforms, used to restore system functionality and keep production running with minimal disruption. From my experience, it’s typically specified as a drop-in replacement in OEM cabinets, helping maintenance teams resolve faults tied to control electronics without reworking the whole cabinet.
You might notice that the “P106” suffix points to a specific hardware revision, which matters when matching firmware and host system compatibility. In many cases, swapping to this exact revision avoids the need for broader requalification, saving both downtime and commissioning effort.
Direct replacement form factor – Designed to fit ABB racks/backplanes used in drive and excitation cabinets, so mechanical changes are rarely required.
Revision-specific build (P106) – Helps align with installed firmware baselines and site standards; typically reduces reconfiguration work.
Backplane-powered integration – Power and signalling are supplied via the host system, streamlining wiring and field installation.
Robust industrial design – Components and coatings are selected for control-room or cabinet use where temperature, vibration, and electrical noise are common concerns.
Service-friendly diagnostics – Status indicators and service headers make fault tracing quicker in most cabinets.
Lifecycle extension – Replacing the board typically restores drive/excitation availability without changing motors, power stacks, or PLC interfaces.
| Brand / Model | ABB 3BHE033068P106 (board assembly, revision P106) |
| Product Type | Control/interface board for ABB drive and excitation systems |
| Power Requirements | Supplied via host backplane (24 VDC nominal is typical on ABB control racks) |
| Operating Temperature | Follows host cabinet rating; commonly 0…55 °C for control sections |
| Signal I/O | Backplane bus and local connectors per system optioning; may include digital/analog channels depending on configuration |
| Communication Interfaces | Backplane communication; some variants support fiber/optical links for power-stage interfaces in ABB drives |
| Installation Method | Plug-in board with guide rails and screw fixings; ESD-safe handling required |
| Dimensions & Weight | Compact PCB module suited for standard ABB control racks; board-level spare |
The 3BHE033068P106 is commonly applied in service and retrofit tasks across ABB-equipped sites. Typical scenarios include:
AC and DC drive cabinets in steel and metals processing lines
Pulp & paper winders, calendars, and sectional drives
Mining hoists, conveyors, and slurry pumps with ABB drives
Marine propulsion and thruster auxiliaries (in cabinet-controlled systems)
Power generation auxiliaries and excitation control panels
One thing I appreciate is how this type of ABB board helps plants standardize spares—maintenance teams keep a known-good revision on the shelf and swap it when diagnostics point to the control card.
Advantages & ValueUptime protection – Rapid replacement limits production losses when a control board fault occurs.
Compatibility – Matching the P106 revision typically avoids surprises with legacy firmware and option sets.
Cost efficiency – Extends life of installed assets without a full drive upgrade.
Serviceability – Clear part identification and predictable mounting reduce technician time on site.
“We replaced the original board during a planned stop. The cabinet booted cleanly with the P106 unit and the line was back within the hour.” — Maintenance Supervisor, metals plant
Installation & MaintenanceCabinet environment – Use in enclosed control cabinets per ABB guidelines; maintain ventilation and keep ambient within the host’s specified range.
ESD and safety – Isolate power, wait for DC link discharge in drives, and use ESD protection when handling the board.
Wiring – Seat the board on guides, fully engage the backplane connector, and tighten fixings to prevent vibration issues.
Firmware/parameters – Load the correct firmware and restore parameters from backups; verify revision compatibility with the host system.
Routine care – Periodically check connectors, remove dust with dry air, and keep cabinet filters clean; firmware updates should follow site change-control.
Manufactured to ABB quality standards and factory test procedures
CE and RoHS compliance for industrial control equipment (typical for this class)
UL alignment depends on the host system; many cabinets are UL-listed as assemblies
Warranty is typically 12 months when supplied through authorized channels
If you’re matching an installed base, sharing the cabinet type, firmware package, and any option codes usually shortens the verification step and ensures the 3BHE033068P106 is the right fit.
