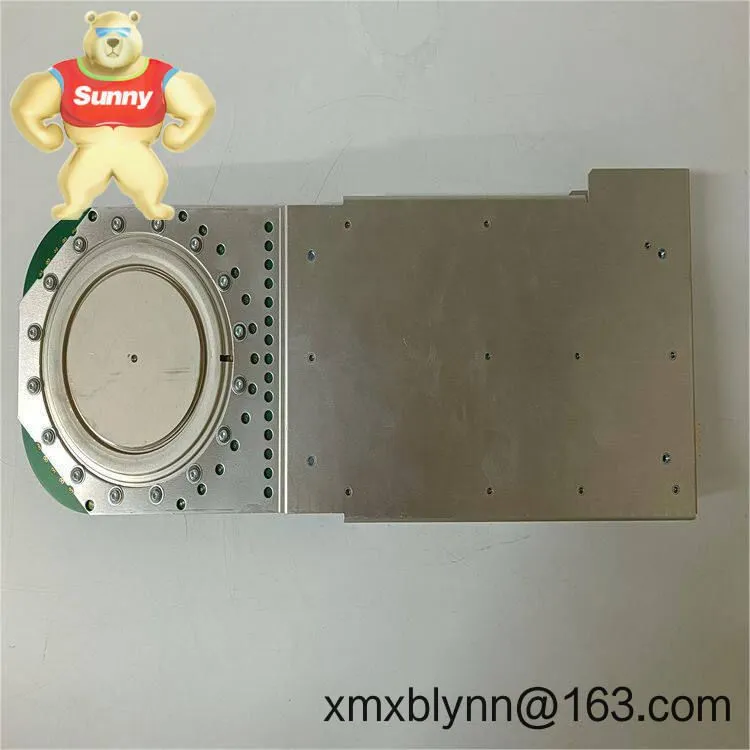

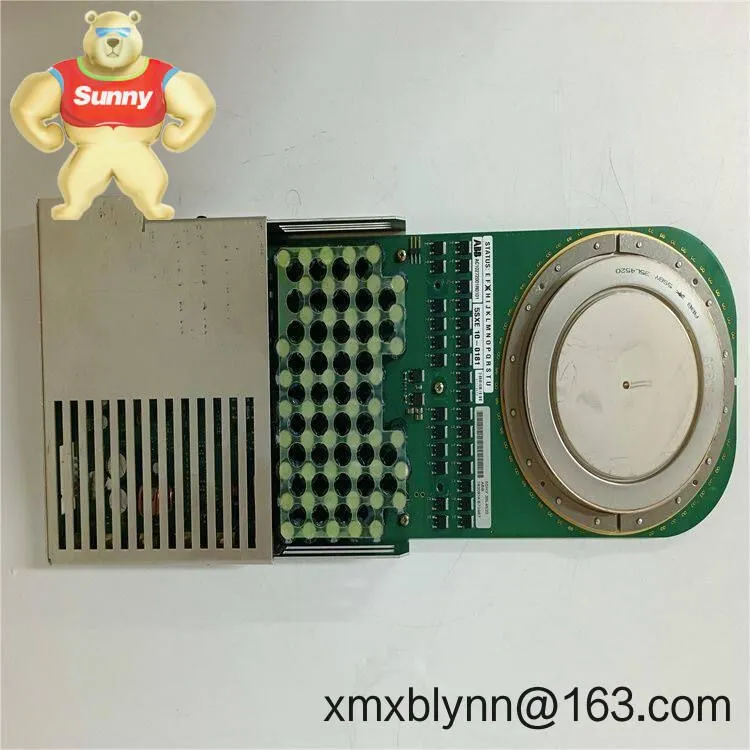

Help CenterABB 3BHL000382P0101 GVC700AE01 – IGCT Gate Unit for Medium-Voltage Drive and Converter Stacks
Related Products
-
ABB 3BHL000384P0101 – Control/Interface Board for ABB Low-Voltage DrivesNegotiableMOQ: 1 Combo -
ABB 3BHL000392P0001 IGCT Module – Press-pack Power Device for Medium-voltage Drive StacksNegotiableMOQ: 1 Combo
-
ABB 3BHL000986P3105 IGCT Thyristors Module – Robust Medium-voltage Switching for Drives and ConvertersNegotiableMOQ: 1 Combo
-
ABB 3BSC980004R784 – 800xA / AC 800M System Spare for Dependable Process UptimeNegotiableMOQ: 1 Combo
-
ABB 3BSE018126R1 – Original ABB Module for 800xA/AC 800M and S800 I/O SystemsNegotiableMOQ: 1 Combo
The ABB 3BHL000382P0101 (GVC700AE01) is an IGCT gate unit engineered for high-power applications where clean switching, robust protection, and consistent timing really matter. It’s typically found in medium-voltage drives and power converters where ABB IGCTs are used, helping extend device life while maintaining reliable commutation under tough load profiles.
Dedicated IGCT Driver – Provides precise turn-on/turn-off control tailored for ABB IGCT devices, keeping switching losses predictable in most cases.
Fiber-Optic Command/Feedback – Noise-immune optical links for fire/enable signals and status, ideal for electrically noisy MV cabinets.
Integrated Protection – From my experience, overcurrent/undervoltage supervision and fast fault signaling help safeguard the power stack.
24 VDC Auxiliary Supply – A common plant standard; easy to power from existing control cabinets or ABB CP-E class supplies.
Rugged, Service-Friendly Design – Conformal coating-style build and clear status indication (LEDs/feedback) makes on-site diagnostics faster.
Compatible With ABB MV Drives – Typically used alongside ABB IGCT stacks in systems like ACS1000/ACS6000 and similar converter platforms.
EMC-Resilient Architecture – Optical links and separated grounds reduce nuisance trips in high dV/dt environments.
| Brand / Model | ABB 3BHL000382P0101 – GVC700AE01 (IGCT Gate Unit) |
| Product Type | Gate unit/driver for IGCT power semiconductors (GVC series) |
| Power Requirements | 24 VDC nominal (typically 18–30 VDC), ripple-limited, fused supply |
| Operating Temperature | Typically 0 to +55 °C inside a ventilated cabinet; non-condensing humidity |
| Signal I/O Types | Optical trigger/enable inputs; optical or electrical status/fault feedback; local status LEDs |
| Communication Interfaces | Fiber-optic links for command and feedback (noise-immune) |
| Installation Method | Panel/stack mounting near the IGCT module; standard cabinet integration |
| Typical Use | Medium-voltage drives, STATCOM/FACTS converters, high-power rectifiers |
| Compliance | CE conformity; RoHS; manufactured under ISO 9001 systems |
You might notice that this gate unit shows up where uptime and predictable switching matter. In many cases it’s selected by maintenance teams trying to standardize a single driver across multiple cabinets.
Medium-voltage AC drives (e.g., ABB ACS1000 / ACS6000 cells)
FACTS/STATCOM installations and grid support converters
High-power test benches and power quality systems
Mining, metals, and cement process lines with IGCT-based stacks
Refining, pulp & paper, and wind converter retrofits using IGCT technology
Reliability Under Stress – Designed for the thermal and electrical realities of MV drive cells; fewer nuisance trips in my experience.
Compatibility – Works with ABB IGCT stacks and control boards using fiber links, easing mixed-fleet maintenance.
Lower Lifecycle Cost – Stable operation and integrated protection help reduce semiconductor stress and unplanned outages.
Spares Strategy – Keeping a GVC700AE01 on the shelf typically shortens MTTR for converter lineups using similar cells.
Technical Backing – Documentation, service tools, and ABB’s global support footprint make commissioning and replacement straightforward.
A maintenance engineer at a cement mill told us their biggest win was “swapping the suspect driver and restoring the line in under an hour, without touching the IGCT stack.”
Installation & MaintenanceCabinet & Mounting – Install in a clean, ventilated, IP-rated MV cabinet near the IGCT module to minimize loop inductance. Maintain clearance around heatsinks/vents.
Power & Grounding – Supply a fused 24 VDC line with proper return. Bond protective earth and respect control/logic ground segregation to limit noise coupling.
Fiber-Optic Handling – Observe bend radius, clean connectors, and verify Tx/Rx orientations. Poor optical links are a common, simple-to-fix root cause.
Wiring Practices – Route power and signal cables separately from high dI/dt busbars. Shield where recommended by ABB wiring notes.
Routine Checks – Inspect connectors and optics quarterly, check status LEDs and fault logs, and verify 24 VDC health under load.
Service Actions – Replace as a module if fault persists after supply and optics are confirmed. Some variants appear to support field firmware updates via a service tool—confirm against your exact build.
Safety – Lockout/tagout the drive, discharge the DC link, and respect ESD handling before touching the gate unit or IGCT stack.
CE compliant and RoHS-conform design
Manufactured under ISO 9001 quality systems
Factory warranty: typically 12 months from shipment (can vary by region or contract)
Traceable labeling and batch control for maintenance records
To round out a service kit or planned shutdown scope, teams often pair the GVC700AE01 with these items:
ABB IGCT Power Devices – 4.5 kV class ABB IGCTs (5SHY series) commonly used in ACS1000/ACS6000 cells.
Optical Links – Industrial-grade fiber-optic patch cords and transceivers rated for control cabinets.
Snubber/Clamp Assemblies – Matching snubber networks sized for the IGCT stack rating.
24 VDC Supplies – Redundant or high-reliability supplies (e.g., ABB CP-E series) to ensure stable gate unit power.
Mounting Hardware & Harnesses – OEM-spec connectors and panel hardware to speed swap-outs.
If you’re planning a like-for-like replacement, sharing the drive type and cell build code typically helps confirm that 3BHL000382P0101 (GVC700AE01) matches your installed IGCT stack and optical interface arrangement.
