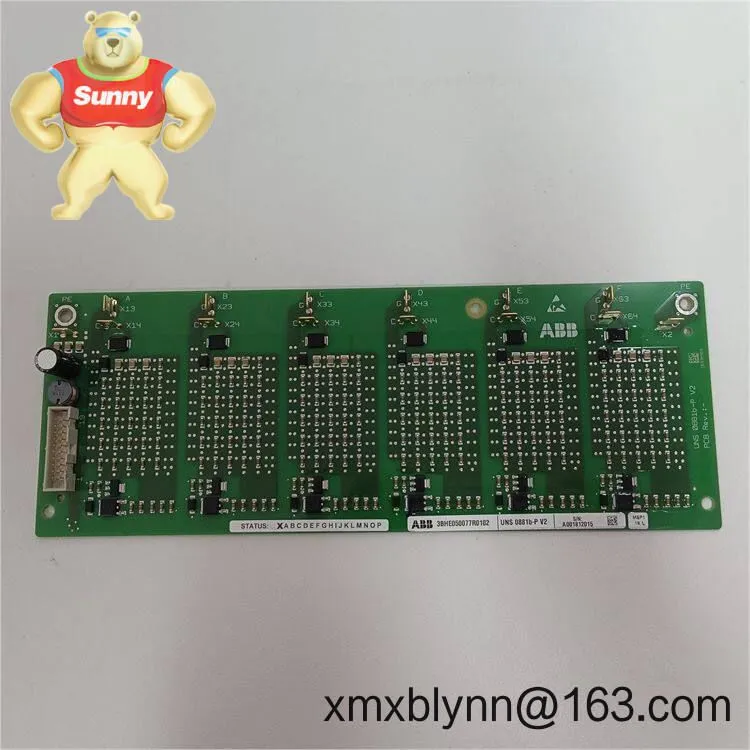

The ABB 3BHE050077R0102 is an OEM control module designed for integration within ABB industrial cabinets, typically found in drive, excitation, and process automation environments. From my experience, modules in the 3BHE family are engineered for stable backplane communication, predictable real-time behavior, and long service life in tough plant conditions.
If you’re maintaining installed ABB assets and need a drop-in board with dependable compatibility, this unit seems to be the kind of part maintenance teams keep on the shelf—because when a line is down, quick swap and predictable startup matters more than anything.
Genuine ABB 3BHE platform – Matches ABB backplane and cabinet standards for reliable fit and function.
Backplane-powered and bus-connected – Typically draws power and communicates via the host rack, reducing wiring complexity.
Real-time control behavior – Designed for deterministic response inside ABB drive and automation systems.
Service-friendly design – You might notice front-edge labeling and status LEDs (common on ABB boards) that make diagnostics faster on-site.
Firmware/parameter alignment – Works best when matched to the host system’s firmware level and configuration set.
Traceability and lifecycle management – Serial tracking and revision codes help with change control and compliance.
| Brand / Model | ABB 3BHE050077R0102 |
| Product Type | Industrial control module (rack/backplane board) |
| Power Requirements | Typically supplied via system backplane (24 VDC class in many ABB racks) |
| Signal I/O Types | I/O and system bus through edge/backplane connectors (no external field wiring on the board itself, in most cases) |
| Communication Interfaces | Proprietary ABB system bus via backplane; exact interface depends on host system generation |
| Installation Method | Slides into ABB rack/cabinet slot; secured by faceplate/retainers |
| Operating Environment | For use in enclosed control cabinets with adequate ventilation; temperature and humidity per system manual |
In many cases you’ll find 3BHE-series boards inside ABB medium-voltage drive cabinets, excitation systems, and process automation racks where deterministic response and high uptime are mandatory. Typical environments include:
Metals, mining, and cement – drive line-ups, kiln fans, conveyors, and mill control
Pulp & paper – sections with coordinated drives and closed-loop tension control
Oil & gas / petrochemical – compressor drives and plant utility systems
Power & utilities – excitation and auxiliary process systems
Marine and HVAC large systems – reliable control within ABS/IEC-compliant panels
“We swapped in 3BHE050077R0102 during a planned shutdown. It booted cleanly with our saved parameters and we were back online in under an hour.” — Maintenance Supervisor, metals plant
Advantages & ValueReliability – One thing I appreciate is the stable behavior of ABB rack modules over long duty cycles.
Compatibility – Designed to integrate with ABB system buses and firmware practices; reduces risk during replacement.
Lifecycle alignment – Helps keep installed bases supported without re-engineering the entire cabinet.
Cost control – Lower downtime and minimal re-commissioning typically translate into measurable OPEX savings.
Traceable sourcing – Clear part code (3BHE050077R0102) simplifies spares planning and audit trails.
Cabinet & rack – Install in the designated ABB slot; maintain free airflow around the module and keep the cabinet within the system’s rated temperature and humidity.
Power & ESD – Fully isolate power before handling. Use ESD protection; avoid touching connector pins and components.
Wiring & connectors – Seat the backplane connector firmly and lock faceplate screws. Inspect for bent pins or debris; a quick clean with approved electronics wipes can prevent intermittent faults.
Parameter & firmware – Align the board revision/firmware with the host system. Back up parameters; restore and verify checksums during commissioning.
Routine care – Quarterly visual checks for dust, loose retainers, or hot spots; annual review of event logs and apply vetted firmware updates when recommended by ABB.
Manufactured under ABB quality systems (ISO 9001-based production controls)
CE conformity for industrial environments; RoHS compliance in most markets
UL/CSA usage typically depends on the complete panel certification rather than the board alone
Warranty: standard ABB terms; many supply channels provide 12-month coverage for new or professionally refurbished units
If you can share the target cabinet type and current firmware level, I can double-check revision compatibility for 3BHE050077R0102 and suggest a matching spares list (connectors, backplane guidance, and recommended tools) so the changeout is quick and uneventful.
