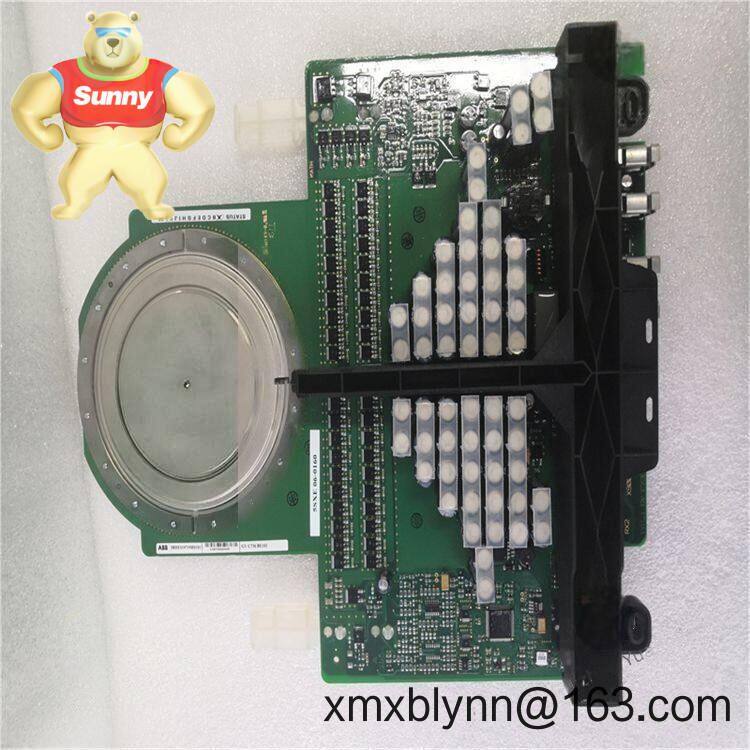

The ABB 3BHL000384P0101 is a factory-grade control/interface board used inside ABB low‑voltage drives, typically for signal conditioning, inter-board communication, and protective coordination with the power section. It’s the kind of board maintenance teams keep on hand to shorten downtime, because it drops straight into the designated slot and pairs with existing firmware and drive frames when installed correctly.
From my experience, this module is chosen when a drive starts throwing intermittent internal faults tied to I/O or communication links. Replacing it generally restores stability without touching the power stack, which saves both time and budget in many cases.
Dedicated ABB drive compatibility – Designed for specific ABB LV drive frames; supports seamless integration with the existing control stack.
24 VDC control power – Typically powered from the drive’s auxiliary supply for reliable operation inside the cabinet.
Isolated signal paths – Opto‑isolated I/O and conditioned analog channels help reduce noise issues in electrically harsh environments.
Diagnostic indicators – On‑board LEDs (where fitted) make it easier to spot status and fault conditions during commissioning.
Ruggedized for cabinet environments – Built for the temperature and vibration profiles commonly found in industrial drive panels.
Service‑friendly form factor – Plug‑in mounting with keyed connectors minimizes wiring mistakes and speeds swap‑outs.
| Brand / Model | ABB 3BHL000384P0101 |
| Product Type | Internal control/interface board for ABB low‑voltage drives (designated frames) |
| Power Requirements | 24 VDC control power (sourced from drive auxiliary supply, typical) |
| Operating Temperature | Cabinet/internal ambient typically 0–55°C, per drive frame guidelines |
| Signal I/O Types | Mixed digital (opto‑isolated), conditioned analog (0–10 V / 4–20 mA), and internal inter‑board links (varies by revision) |
| Communication Interfaces | Internal backplane / ribbon connectors; service access via the drive’s front‑end tool (e.g., ABB DriveWindow or Drive Composer, depending on family) |
| Installation Method | Plug‑in PCB board inside the drive; secured with standoffs and keyed harnesses |
| Dimensions & Weight | Compact PCB; typically |
This board is widely used as a service replacement or configured component in ABB drives deployed in:
Metals and rolling mills – maintaining precise speed/torque regulation on critical lines.
Pulp & paper – stable operation for unwind/rewind sections and process drives.
Mining and aggregates – conveyors, crushers, and hoist auxiliaries where uptime is king.
Marine & offshore – fans, pumps, and winch systems in closed cabinets.
Oil & gas / chemicals – pump trains and mixers in classified panel rooms (within approved drive systems).
Fast recovery – Drop‑in replacement helps cut MTTR when a drive fault isolates to the control layer.
Compatibility – Works with designated ABB frames; you typically won’t need cabinet rewiring.
Stable process control – Clean signal paths reduce nuisance trips and analog drift in most cases.
Lifecycle support – Fits common maintenance strategies: keep one unit on the shelf, swap when needed, then send the faulty board for analysis/repair.
Total cost containment – Avoids full drive replacement when power hardware is healthy.
Cabinet & environment – Install inside a clean, ventilated, closed cabinet that meets the drive’s frame standards. Maintain ambient per the drive manual.
ESD handling – Use wrist straps, antistatic mats, and handle by edges only. Power down and wait for DC bus discharge before work.
Wiring – Verify keyed ribbon/fiber connectors; avoid tight bends and cable stress. Match connector labels to the drive’s slot map.
Firmware & parameters – After replacement, validate parameter sets and IO scaling. Use ABB service tools (e.g., DriveWindow/Drive Composer) to check versions and alarms.
Routine checks – Inspect connectors quarterly, clear dust with dry air, and review drive alarms/trends. Calibrate analog channels if process drift appears.
Designed for use within ABB drives that carry CE and UL/cUL approvals; the board inherits compliance when installed in the specified system.
RoHS-compliant construction, as is typical for modern ABB service parts.
Manufactured under ISO 9001 quality systems (ABB standard practice).
Warranty: typically 12 months from shipment when installed by qualified personnel, subject to ABB terms.
One thing I appreciate is how predictable commissioning goes when the replacement board matches the drive’s frame and revision—most teams are back online after a short parameter check. If you can share the drive family and frame size, I can double‑check compatibility and lead time for 3BHL000384P0101 specifically.
