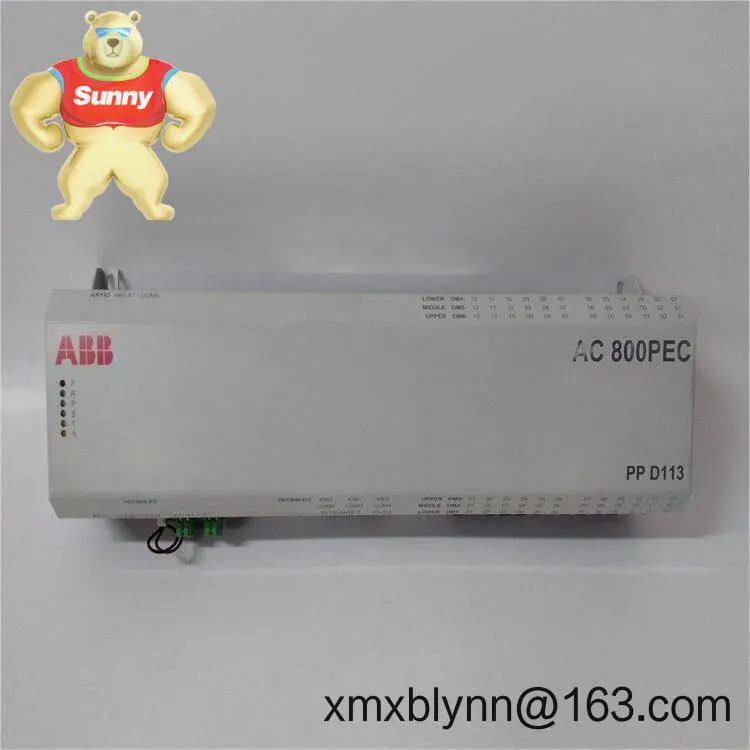

The ABB 3BHE023784R1010 is a factory-grade control board module typically used inside ABB industrial drive and power control cabinets. From my experience, it serves as a core logic/IO interface layer that keeps the controller, power stage, and plant signals talking reliably. It’s a practical, like-for-like spare when you need to restore a down line fast or keep a critical system within spec during a planned outage.
You might notice that the “R1010” suffix indicates a specific hardware revision, which matters for compatibility. In many cases, plants keep this board on the shelf because it slots straight into the existing rack with minimal adjustment.
Key FeaturesOEM-grade replacement – Designed for ABB systems where the 3BHE023784R1010 is specified, helping maintain original performance and diagnostics.
Backplane integration – Typically powered and interfaced through the system backplane, which streamlines wiring and speeds up swaps.
Robust signal handling – Engineered for cabinet environments with stable operation under electrical noise common to drives and excitation systems.
Revision-matched hardware – The R1010 revision helps align with installed firmware and neighboring boards, reducing mismatch risks.
Service-friendly design – Plug-in form factor with clear edge connectors; ESD-safe handling and quick removal/insert during outages.
Traceable part identity – ABB part numbering supports lifecycle tracking and documentation in compliance-driven industries.
| Brand / Model | ABB / 3BHE023784R1010 |
| Product Type | Industrial control board (plug-in module) |
| Power Requirements | Backplane supplied (typically from system 24 VDC rail via onboard regulation) |
| Operating Temperature | Typically 0 to +55 °C in a ventilated control cabinet; non‑condensing humidity |
| Signal I/O | Interfaces via host backplane and edge connectors; digital/analog routing per system design |
| Communication Interfaces | Backplane bus; auxiliary headers as defined by the host controller architecture |
| Installation Method | Plug-in card; secures into the designated rack/slot; observe ESD handling |
Medium- and low-voltage drive cabinets – Coordination of control logic with power modules in process lines, compressors, and fans.
Excitation and power control systems – Stable signal management where generator or motor excitation must remain consistent.
Process automation upgrades – Sustaining legacy ABB platforms during phased modernization without full panel redesign.
Critical spares strategy – Plants that run 24/7 typically keep at least one board for risk mitigation and SLA uptime commitments.
Reduced downtime – Direct drop-in fit means swap times measured in minutes, not hours, in most cases.
Compatibility confidence – Revision R1010 alignment helps avoid firmware/timing mismatches across the rack.
Lifecycle support – Maintains maintainability of installed bases where a full controller changeout isn’t practical this year.
Cost control – Keeps existing wiring, IO, and cabinets intact; no re-qualification of the entire control stack.
Proven reliability – These boards are built for electrical noise environments common to big drives and power rooms.
Cabinet environment – Install in a clean, ventilated control cabinet; keep ambient within the host system’s specified range.
Wiring & grounding – Ensure cabinet grounding is intact; route power and signal cables separately to limit EMI coupling.
Handling – Use ESD protection; avoid touching component surfaces and connector pins.
Seating & fastening – Insert evenly into the slot until fully engaged; secure per the rack’s screw/clip design.
Routine checks – Visually inspect for dust and loose connectors during PM; clean with dry, oil-free air.
Firmware alignment – Where applicable, match firmware/parameters with neighboring modules; back up configs before swap.
Spare strategy – Store in anti-static packaging; keep a labeled, known-good unit after bench test if your process is sensitive.
Manufacturing quality – Produced under ABB’s quality system (ISO 9001 manufacturing practices are typically applied).
Compliance – Designed for CE-marked industrial control environments; RoHS status may depend on production date and series.
Warranty – Standard 12-month coverage is common for new or professionally refurbished units; confirm terms with your procurement channel.
Traceability – Part number and revision labeling support audit requirements in regulated plants.
System backplane/rack – Ensures the correct mechanical fit and power/communication pinout for the 3BHE023784R1010.
Controller CPU module – Hosts the application logic; revision alignment can be important for deterministic timing.
I/O interface boards – Analog/digital IO or fiber/serial interface cards that connect field sensors and power modules.
Shielded interconnects – Ribbon or board-to-board cables rated for the cabinet’s EMI environment.
