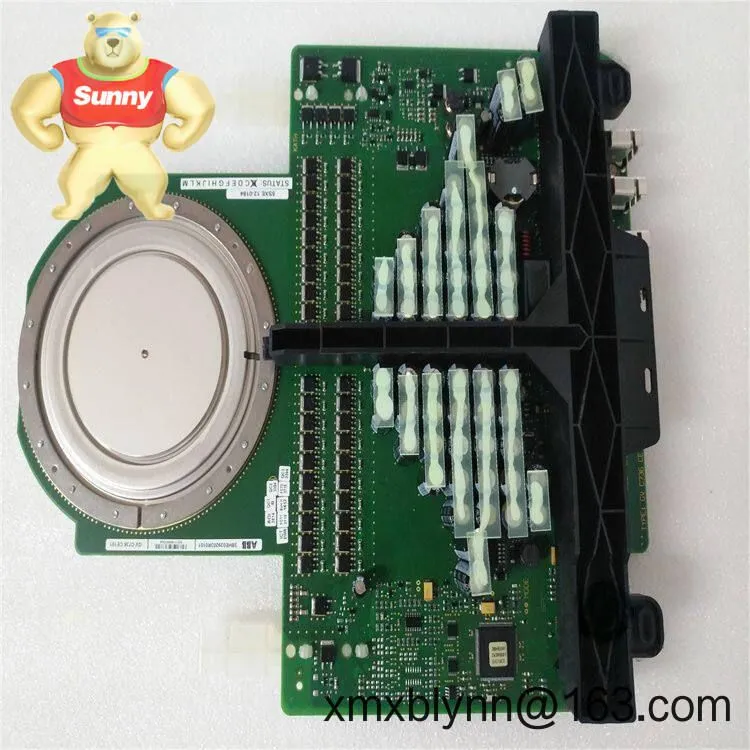

The ABB 3BHL000392P0001 is an IGCT (Integrated Gate-Commutated Thyristor) module used as a main switching element in ABB medium-voltage drive stacks. It’s designed for high current, low-loss operation with rugged turn-off characteristics, which in many cases translates to longer service intervals and predictable performance under heavy loads.
From my experience, this part number appears most often in ACS-series medium-voltage drives. If you manage compressors, mills, or large fans, this is typically the OEM-matched spare that keeps downtime tight and commissioning straightforward.
IGCT topology for high efficiency – Fast turn-off and low conduction loss compared to conventional GTO/thyristor solutions.
Press-pack construction – Solder-free, clamped design for reliable thermal cycling and a predictable short-circuit failure mode.
Medium-voltage drive compatibility – Used in ABB MV inverter stacks, typically 3–6 kV class systems depending on the stack design.
Thermal flexibility – Works with water-cooled or high-capacity air-cooled heat sinks specified in the drive stack.
Service-friendly – Module replacement doesn’t require re-soldering; proper clamp force and clean interfaces get you back online fast.
Proven reliability – Wide safe operating area and high surge capability for cyclical industrial loads.
Traceability – ABB part coding and batch tracking support quality control and maintenance records.
| Brand / Model | ABB 3BHL000392P0001 |
| Device Type | IGCT power semiconductor module (press-pack) |
| Power Requirements | Driven by a dedicated IGCT gate unit; no standalone power input on the module |
| Operating Temperature | Ambient range defined by the drive cabinet (typically -25 to +55 °C); junction limits per ABB IGCT datasheet |
| Signal I/O | Gate interface via matching gate unit; no user communications on the device |
| Communication Interfaces | None (communication resides in the drive control and gate unit) |
| Installation Method | Press-pack clamping between heat sinks/busbars; clamp force per ABB drive service manual |
| Dimensions & Weight | ABB press-pack footprint; provided in the drive’s stack documentation |
This module is usually specified for medium-voltage variable speed drives where efficiency and reliability matter more than switching frequency. Typical uses:
Cement mill drives and kiln fans
Mining conveyors, hoists, and crushers
Oil & gas compressors and injection pumps
Power plant ID/FD fans and boiler feed pumps
Large process blowers and test stands
OEM match – Part code aligns with ABB MV drive spares, so fitment and electrical behavior are as expected.
Lower lifecycle cost – High efficiency and press-pack serviceability typically reduce heat stress and downtime.
Supply chain confidence – Authentic part labeling and traceability support audits and long-term maintenance plans.
Compatibility – Works within existing gate unit, snubber, and cooling designs of the ABB stack.
“We swapped the IGCT on a clinker line drive during a planned stop. Clamp, clean, torque, test—back in service in under two hours.” — Maintenance Supervisor, cement plant (reported experience)
Recommended Supporting ComponentsIGCT Gate Unit (ABB drive-matched) – Provides the high-current gate pulse and protection functions; typically fiber-optic commanded from the drive controller.
Snubber network (RC/Capacitor bank) – Limits dv/dt and balances series devices in MV stacks.
Press-pack clamp set – Calibrated hardware to achieve specified clamping force and uniform pressure distribution.
Heat sink assembly (air or water-cooled) – Sized for the application’s thermal load; keep surfaces clean and flat for low thermal resistance.
Fiber-optic trigger interface (drive control) – Ensures noise-immune command signals to the gate unit in high-EMI environments.
Cabinet and environment – Install in a clean, dry drive cabinet with adequate ventilation or cooling; maintain ambient within the drive’s specified range.
Clamping procedure – Use the specified torque/force and a calibrated tool; clean and inspect mating surfaces, replace any pitted busbars or degraded thermal pads as directed by ABB.
Electrical checks – Verify snubber integrity, gate unit health, and fiber links before re-energizing; insulation resistance and contact resistance should be within the service manual limits.
Cooling system – For water-cooled stacks, keep coolant within conductivity and flow specs; check for leaks, scaling, or filter clogs on routine intervals.
Periodic maintenance – Inspect clamp force annually (or per duty cycle), clean dust/debris, and apply firmware updates to the drive controller and gate drivers where applicable.
Safety – Lockout/tagout, discharge DC link capacitors, and follow ESD precautions; IGCTs can retain charge in associated circuitry.
Manufactured under ISO 9001/14001 quality systems (factory-level quality management).
RoHS/REACH: Typically compliant or covered under industrial exemptions for high-reliability power semiconductors.
CE/UL: Not generally applicable to standalone semiconductor devices; compliance is addressed at the complete drive system level.
Warranty: Standard manufacturer warranty terms for ABB MV drive spare parts apply.
