Help CenterABB 3BHB026114R0001 IGCT – High‑power Press‑pack Device for Medium‑voltage Drives and Converters
Related Products
-
ABB 3BHD000892R0461 IGCT – High‑reliability Press‑pack IGCT for Medium‑voltage Drive and Converter StacksNegotiableMOQ: 1 Combo -
ABB 3BHE004573R0142 (UFC760BE142) – Digital Control Board for UNITROL Excitation and MV Drive ControlNegotiableMOQ: 1 Combo
-
ABB UFC789AE101 (3BHE014023R0101) – Reliable Rack-mounted Controller Board for ABB Industrial Automation SystemsNegotiableMOQ: 1 Combo
-
ABB 3BHE017628R0102 PPD115A102 – Pulse Pattern Driver Board for Medium-Voltage Drive ControlNegotiableMOQ: 1 Combo
-
ABB 3BHE014105R0001 + 5SHY3545L0020 5SHX26L4510 – Gate Unit and IGCT Pair for Medium-voltage Drives and ConvertersNegotiableMOQ: 1 Combo

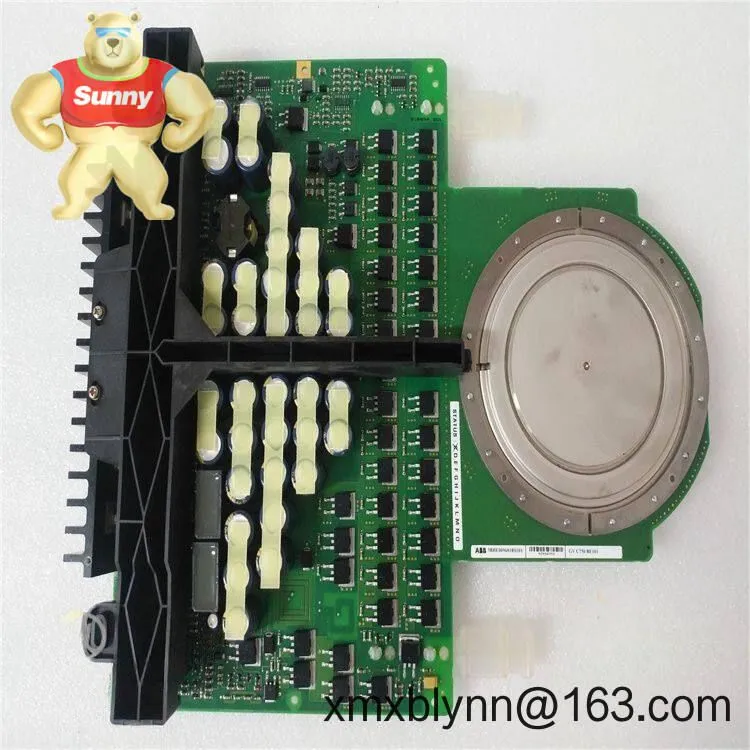

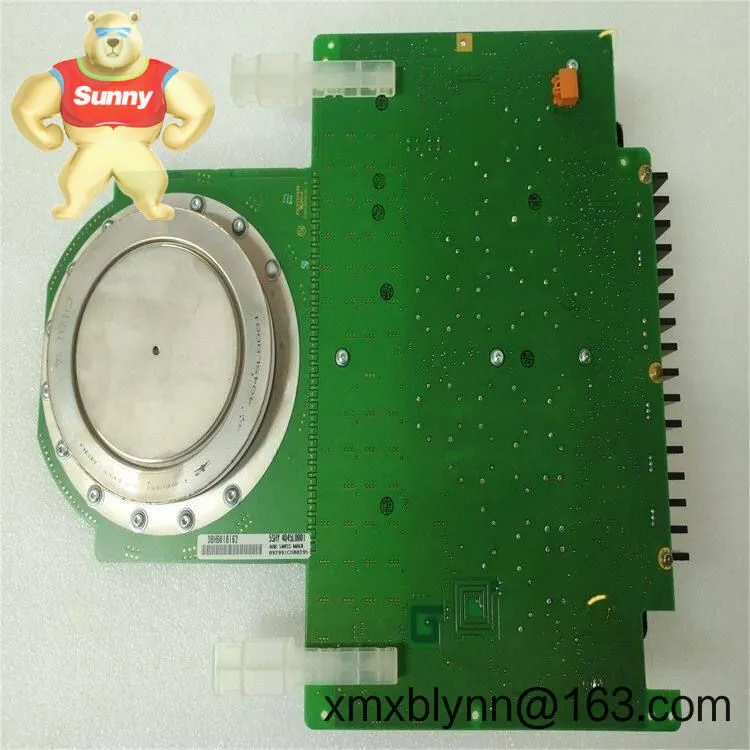

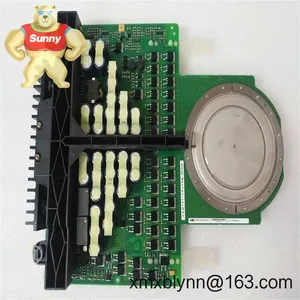

The ABB 3BHB026114R0001 IGCT is a genuine OEM press‑pack IGCT module designed for demanding medium‑voltage power conversion—typically seen in ABB MV drive power stacks and high‑power rectifier/inverter sections. From my experience, it’s chosen when you need fast turn‑off capability, low conduction losses, and rock‑solid robustness under high di/dt and thermal cycling.
You might notice that engineers often specify this part as a form‑fit‑function replacement during scheduled maintenance or emergency repairs to shorten downtime. It pairs with an ABB gate unit and standard snubber hardware commonly used in MV drive cabinets.
Press-pack IGCT construction – Metal–ceramic, clamped package for uniform current sharing and high reliability under surge and cycling.
High turn-off capability – Fast, clean commutation when driven by the matched ABB gate unit; reduces switching stress in MV stacks.
Low conduction losses – Typical IGCT conduction characteristics help improve system efficiency versus older GTO solutions.
Rugged in harsh environments – Suits heavy-duty applications (compressors, pumps, mining conveyors) where thermal and electrical stresses are routine.
Service-friendly replacement – Form‑fit‑function spare for ABB MV drive power cells; minimizes re‑engineering during field swaps.
Driver & snubber compatible – Works with ABB gate units and standard snubber/crowbar assemblies used in MV converters.
| Brand / Model | ABB 3BHB026114R0001 (IGCT, press‑pack) |
| Device Type | Integrated Gate‑Commutated Thyristor (IGCT), clamped package |
| Power Requirements | N/A for the device; driven by an ABB gate unit (gate-unit supply typically 24 VDC) |
| Signal I/O | Gate–cathode interface via matching ABB gate unit; optical control is handled by the gate unit in most systems |
| Cooling Method | External heatsink stack; air‑ or water‑cooled assemblies depending on the drive design |
| Operating Temperature | Per ABB datasheet; junction limits are device‑dependent (typically wide industrial range) |
| Dimensions & Weight | Press‑pack form factor; verify diameter and stack fit before ordering |
| Installation Method | Clamped between heat sinks with specified force; follow ABB clamping and cleanliness procedures |
| Typical Pairing | ABB gate unit + snubber network + fiber‑optic control (at gate unit) |
Medium‑voltage drives for compressors, fans, blowers, pumps, and rolling mills.
High‑power rectifiers/inverters in marine propulsion and mining conveyors.
Industrial utility systems and power‑quality converters where fast turn‑off and reliability matter.
A maintenance supervisor at a steel plant shared that swapping to a new ABB IGCT during a planned outage cut restart risks—“the gate unit commissioning was straightforward, and thermal balance across the stack looked better than before.”
Advantages & ValueReliability first – Press‑pack design eliminates bond‑wire failure modes and typically handles cycling better than plastic modules.
Compatibility – Fits established ABB MV drive architectures with matching gate units and snubbers; no re‑qualification headache in most cases.
Reduced downtime – Direct replacement behavior helps maintenance teams complete swaps within tight outage windows.
Life‑cycle cost – Lower conduction/switching losses can translate into measurable energy savings over long duty cycles.
Technical backing – Access to ABB documentation and field‑proven installation practices.
Cabinet & environment – Install in an MV drive cabinet meeting IEC/UL panel standards, with clean, dry air and adequate ventilation or water‑cooling as designed.
Handling – Keep contact faces pristine; avoid fingerprints and particles. Use ESD‑safe practices and handle by the rim, not the active surfaces.
Clamping – Use a calibrated clamping tool to the ABB‑specified force and sequence. Uneven force can impact lifetime and current sharing.
Wiring – Connect the gate unit per ABB wiring diagrams. Secure gate and cathode paths; confirm isolation and creepage clearances.
Commissioning – Verify gate unit health, fiber‑optic integrity (where used), and snubber components. Run a controlled ramp‑up and thermal check.
Routine care – Periodically inspect stack torque/clamp, clean airflow channels or heat‑exchanger surfaces, and keep gate unit firmware/config up to date when applicable.
Replacement practice – In many cases, teams replace devices per arm or phase set to preserve current sharing characteristics.
Manufactured within ABB’s ISO 9001 quality system.
RoHS compliance in most regions for the component level.
CE/UL typically apply at the end‑equipment level (MV drive/converter), not to the discrete IGCT itself.
Warranty per ABB terms; for spare parts it’s commonly 12 months from shipment (confirm per order).
ABB Gate Unit for the corresponding IGCT voltage/current class (with fiber‑optic control from the drive controller).
Snubber capacitor/resistor assemblies sized for the MV stack.
Calibrated clamping system and matched heat‑sink set (air‑ or water‑cooled).
Fiber‑optic transmitter/receiver boards in the power cell, where applicable.
If you’re replacing an existing device, a quick check of stack diameter class, clamping force spec, and gate unit compatibility usually streamlines the job. Send the drive family and cell ID, and I’ll help validate fitment before you schedule the outage.
