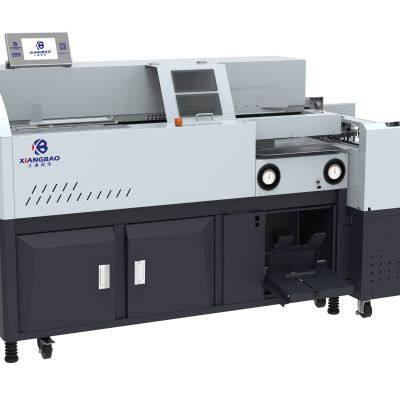

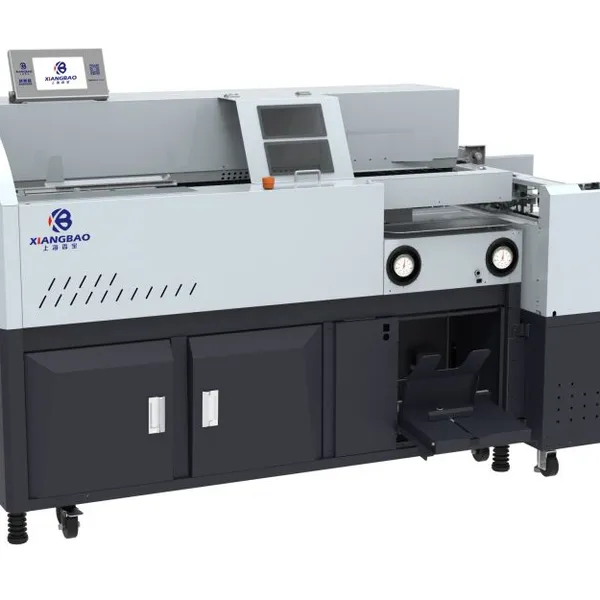

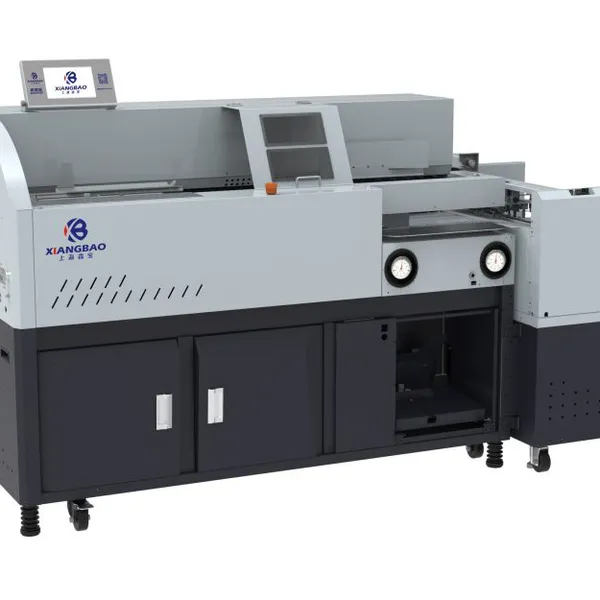

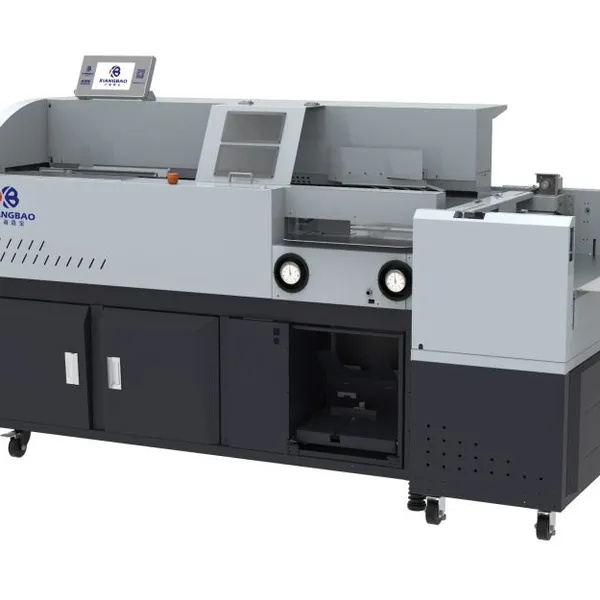

Shanghai Horizon XB-AR10000H Flagship Edition Automatic Book Binding Machine

Product Description:

Machine Features:

1. Trolley part

The trolley clamps and drives, and adopts 8 guide rails and 3 screw rods to ensure smooth operation and no shaking when binding books. The trolley splint adopts a reinforced 1 cm aluminum plate, so there will be no deformation.

2. Guide rail part The double linear guide rail design is adopted, which has the characteristics of high precision, high strength and low noise. The aluminum profile guide rail supports to ensure the flatness of the guide rail and the trolley runs smoothly. The binding effect of books is good and the gluing is more uniform.

3. Milling cutter part The enlarged sun knife has a 24-blade cutter head to ensure that every sheet of paper in the book will be roughened, and there will be no missed milling, so that the gluing effect is better. The triple paper scraps suction design: the middle of the milling cutter sucks paper, the milling cutter wind wheel sucks paper structure, and the rear dust suction device (the only one in the world) sucks paper more effectively.

4. Glue slot part The enlarged glue slot double rubber wheel design with side glue. According to the BQ270 glue slot design, the first rubber wheel is used as the milling cutter slot for gluing to ensure that the glue has strong permeability. The second glue wheel glues the book back, and the gluing effect is better. The side glue is located in the middle of the glue groove and uses the same glue groove glue as the back glue, which avoids the side glue from burning yellow and frequent gluing. It has strong applicability and avoids the cooling of the book side glue during gluing, giving full play to the fastness of the glue. Multiple heating layers are heated evenly. Independent gluing positions can achieve non-stop gluing and save time. It effectively reflects the characteristics of the processing type glue binding machine. 8 heating tubes are used for heating, and 4-way control heating is intelligently switched, which has a better effect. The extended temperature measuring rod directly contacts the glue and has a large temperature measurement area and accurate temperature.

5. Control method 10-inch color touch screen is more convenient to operate. The temperature setting can be directly input, and the built-in help function can directly understand the requirements of each parameter setting, which is convenient to operate.

6. Smoke exhaust function can effectively remove the smell of glue and make it safer outdoors.

7. Square and round corner adjustment It can be adjusted according to the thickness of the book. The square and round corners are easy to switch to ensure that the assembled books can be guaranteed to be straight regardless of thickness. Clear edges and corners.

8. Clamping surface structure The clamping surface adopts 4 guide rails to run up and down, so there will be no more glue on one side and less glue on the other side, uneven bottom glue, and stable binding effect. The motor is directly connected to the clamping surface table structure, which is full of power.

Introduction to the machine features:

 1. Servo frequency conversion technology: According to the different thickness characteristics of the book, during work, the rubber wheel rotates (frequency conversion), automatic speed adjustment helps the glue to be fuller, and the cover of the wall walking is more accurate and stable.

2. Design of the book clipping disk device: quick clamping with one click, automatic detection of books with different thicknesses, and automatic distance change of indentation.

3. Quick adjustment design for front and back position of the book core: When binding the book, you can quickly adjust the front and back position according to your needs (not only: the book core is on the inside of the cover or flush with the cover).

4. Book unilateral pouring design: Avoid one-side rolling when binding a book. It's easier to pick up a book.

5.  Redundant glue break design: effectively reduces glue dripping and cutting convenience of the clamping table, and improves work efficiency. In addition, the distance between the glue breaking can be adjusted according to the thickness of the binding book (the head of the book does not overflow glue) .

6. Alloy steel cutter plate + tungsten steel groove cutter design: Ensure that every piece of the book will be woven and grooved, and there will be no leakage and milling, so that the glueing effect will be better. The middle of the cutter plate is equipped with wind wheel blades and an external confetti collection device makes cleaning the confetti easier. The system is equipped with a reminder function for regular cleaning of confetti.

7.  Back ridge adjustment technology; rapid adjustment of groove depth (requires for firm binding of different milling back noise, paper dust and different papers).

8.  Integrated glue groove design: The integrated aluminum glue groove is larger, the heat is evenly affected, and the glue capacity is relatively large, which reduces the frequency of glue addition during work. Improved work efficiency.

9.  Independent glue box design: improve work efficiency, add glue while installing (the glue does not stop the machine).

10. The fine-tuning design of grinding wheel: independent temperature control, making the glue control easier, and the height can be adjusted.

11. Automatic side glue design: The glue is equipped with different thicknesses of books to automatically adapt to the application of glue measurement, without adjustment and parameters.

12. Square spine adjusting design: The angle can be fine-tuned according to the thickness of the book in the binding book, which is simple and convenient.

13. Intelligent smoke exhausting design: control smoke exhaust (on or close) according to real-time glue temperature changes (on or close) is more environmentally friendly and safer to use, and the glue can be directly discharged to the outdoors.

14. Shelving desk design: no need to assist the desk to place the book core, cover, finished product, does not take up space, and is ergonomic.

15. Vacuum CNC paper feeding design: choose a vacuum air pump to save costs instead of external air pumps. Multiple suction nozzles firmly absorb the paper and enter the cover stably.

16.  Anti-double-feeding design: Use electronic control technology to shake multiple times to avoid the occurrence of double-shot situation.

17. Cover size CNC technology: simple operation and only need to design within the screen to complete positioning.

18.  Front blowing design: Blow the cover away before entering the cover effectively prevent double sheets.

19.  Forward and reverse indentation design: Two spine indentation lines and two leaf turning indentation lines, making sure the glue binding effect is more beautiful and square.

20. Automatic book collection design: lifting book collection, spine does not deform. Large-capacity book collection tray, convenient to take out books, improve work efficiency.

Technical parameters:

Binding length (mm) 110-320 books/manual A3

Binding thickness (mm) 1-55

Book block height (mm) 135-210 books/manual 135+

Manual maximum cover (mm) L660xW460

Automatic maximum cover (mm) L660xW450

Binding minimum cover (mm) L270xW135

Cover thickness (g) 120g-300g

Cover stacking height 88mm

Cover method Lifting and suction

Cover creasing CNC rolling

Cover side gauge CNC adjustment

Binding speed 300-420 (books/hour)

Melting time (min) About 45 minutes

Automatic speed change according to book thickness ✔

Heating power 1.1KW

Gluing method 4 glue wheels

Glue adding groove/glue filling ✔

Glue roller height adjustment ✔

Self-resetting side glue wheels ✔

Milling method 20-tooth alloy steel cutter disc + tungsten steel slotting knife

Front book sorting platform ✔

Automatic book thickness measurement ✔

Book shelf platform (behind the screen) ✔

Clamping surface height adjustment

Adaptive (handwheel) Automatic book thickness measurement ✔

Voltage/power 220V / 3.4KW

CNC fast book clamping ✔

Quick book retrieval mode ✔

Milling cutter motor power 1.3KW

CNC left and right secondary positioning ✔

Built-in control console ✔

Display mode 7-inch touch screen (resistive screen)

Net weight (kg) About 484.5KG

Gross weight (kg) About 588.5KG (the weight converted by volume when shipping is about 700 kg)

Machine size (mm) About 2335*1070*1385

Outer box size (mm) About 2410*1080*1543
