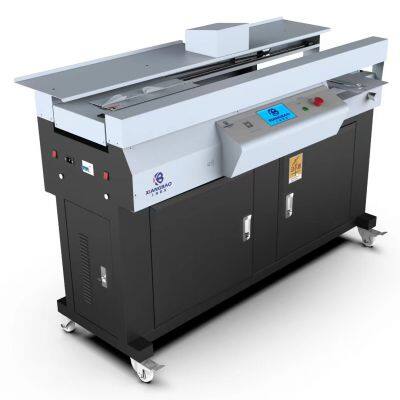

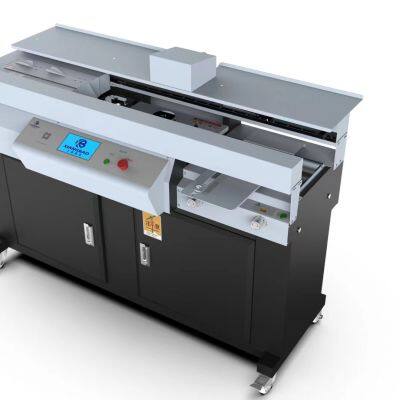

Shanghai Horizon XB-AR9000H Flagship Edition Binding Machine

Product Description:

This machine adopts guide rail design: The guide rail adopts double linear guide rail (industrial guide rail) with high accuracy and low sound. It is fixed with 4 points with a small car. It operates stably and has a stable binding effect. The thickness and thickness book binding effect is consistent.

Milling cutter part: Use the sun knife plus small milling cutter mode, and adds a large sun knife with 24-edged cutter heads to ensure that every piece of paper in the book will be woven and there will be no leakage of milling, making the glueing effect better. The V-shaped small milling cutter is made of tungsten steel, which is not easy to wear, has a high glue affinity, and has a better glue penetration effect. High rotation number of high-power milling cutter motor: The power of the milling cutter motor is 1000W, which ensures that the milling cutter motor will not be blocked. The milling cutter motor has a rotation number of 2800 revolutions. The effect of milling a book in this machine is twice that of other machines, and ensures that the milling cutter effect is very good regardless of one piece of paper or 500 pieces of paper.

Triple paper absorbing design: rear paper absorbing device, middle paper absorbing device of milling cutter, wind wheel paper absorbing milling cutter, glue groove design: double adhesive wheel with side glue.

According to the design of BQ270 glue groove, the first glue wheel is used as a milling cutter groove to ensure that the glue is more permeable. The second glue wheel book is glued on the back of the back, and the glue effect is better. The side glue is located in the middle of the glue groove and the same glue as the back glue, which avoids the side glue from yellowing and frequent glue addition, which prevents the side glue from cooling down when applying glue, and fully exerts the fastness of the glue.

Multiple heating mountain layers are heated evenly. Independent glue adding position, the glue adding can be achieved without stopping, saving time. It effectively reflects the characteristics of processing glue installation machine. 8 heating pipes are heated, and 4 controlled heating is intelligently switched, which has better results. Extended temperature measuring rod, directly contact the glue to measure the temperature area with a large temperature measurement area, and accurate temperature.

Smoke exhaust function: It can effectively eliminate the odor of glue outdoors. Voice broadcast: When operating errors and temperature reaches, it will be read aloud in voice, which is more timely and convenient. The volume can be set according to your needs.

Circuit part: designed by Japanese engineers, with clear high and low voltage, reasonable design, and not easy to damage. The super-large circuit board (larger than A4 paper) has better heat dissipation effect, and the motherboard chip uses imported chips from the UK, which is very stable.

The high-voltage control part is controlled by thyristor, and there is no blackening or ignition of the contacts of the relay.

Quick load mode: Open the quick load mode in a book with the same thickness to 10.8 seconds per book. The clamp table adopts a vertical parallel rising design, and there will be no more glue on one side, less glue on the other side, uneven base glue and stable binding effect.

The motor is directly connected to the clamp table structure, which is full of power.

The independent square and round corner adjustment can be adjusted according to the thickness of the book to ensure that the loaded book can be direct regardless of the thickness. Clear edges and corners. In addition, the square and round corner mediation has a mechanical digital display. The square and round corner adjustment can be adjusted with the adjustment reference table, which is very convenient.

The main motor operates with a brake motor configuration, and when it runs to the right end, it will perform secondary brakes to effectively ensure the accuracy of positioning before and after the book.

This machine is equipped with a placement platform, which can directly place the inner page and cover that need to be bound on the placement platform, and can be used as soon as possible, which is quick and convenient.

The smoke exhaust device uses a safe voltage for power transmission, and can be opened according to customer needs to directly discharge the glue gas out of the outdoors.

Technical parameters:

Machine model: XB-9000H Ultimate

Display method 7-inch color touch screen

Binding length 420mm

Binding thickness 60mm

Binding speed 330books/hour

Milling cutter method Small milling cutter + alloy steel sun cutter

Voltage/power 220v/2000W

Net machine weight 215kg

Machine size 1563mm*752mm*1187mm

Heating time ≥35 minutes

Packaging size 1670*760*1130

Weight with wooden box 298 KG
