Shanghai Xiangbao XB-AT651-09EP dual hydraulic ultra-quiet paper cutter

Operation function introduction:

1. Manual mode: 1. Counting of this shift: You can see the number of cutting times since the start of the machine. Click the count of this shift to see the total number of cuttings; 2. Time and date: You can directly watch in working state; 3. Fixed distance subtraction, fixed distance addition: After entering the size on the input interface, press "Fixed distance addition" or "Fixed distance subtraction" to add or subtract the original size of the machine; 4. Push paper forward: You can use "Push Push Paper Forward" to move the cut paper forward without knowing the cut size, and press "Push Push Paper Forward" to move it again. When moving it, you can use "Push Push Paper Forward" to move it again. When moving it, you can use "Push Push Paper Forward" to move the cut paper forward. When moving it, you can press "Push Push Paper Back" to move it again or "Stop"; 6. Stop key: Press the "Stop key" when the paper pusher moves again and stop it. Pre-input the size: When you need to enter the size, you can see the size you set in this status bar (before confirmation); 7. Dividing function: When entering the size (before confirmation), pressing the "Dialing function" will directly display half of the input size and press the "OK" key to determine. The machine size will automatically move to this value.

2. Automatic mode 1. Programming: The machine can program data in the machine, and the size can be set arbitrarily within the range of 520m and the minimum 30mm; 2. Group: After the data is programmed, the data process can be stored in groups of 0-99; 3. First row size: you can directly return to the top to set the size; 4. Downline size: you can directly move to the next size during cropping; 5. Segment mode: 1. Section 1: Set the total length size; 2. Section 2: Set the size subtracted by the first cut; 3. Section 3: Set the size subtracted by the second cut. Function/parameters; 1. Book push function: When selecting to open, automatically push the finished book to the cutting 10cm in front of the knife; 2. Tool change switch: Select this switch to turn on when the tool needs to be changed; 3. Dimension fine adjustment: Modify the data here when there is a deviation in size and make corrections; 4. Paper cutting depth: When the paper is cut continuously, increase the data here; 5. Paper pressing time: above 55, and when cutting special paper, you can increase this time.

3. Machine features 1. Paper feeding table: It uses hard alumina profile, the platform thickness reaches 10mm, the hardness reaches 420, the surface is flat and smooth, rust-proof, not easy to deform, not easy to scratch, good toughness , Higher wear resistance and high-end and atmospheric. Thickened aluminum alloy gauges (8mm) on both sides, thickened aluminum alloy backing (8mm) are not easy to deform and are more stable. 2. Paper push design: Using Taiwan TOP ONE paper cutter design: The paper push guide uses a double guide rail and a ball screw, which is located on the upper part of the paper pusher, which is not easy to fall dust and reduce wear. The spacing between the guide rails is reasonably calculated and the stability is ensured with extended linear bearings; ball screw: precise positioning under high-speed operation, small running resistance, not easy to wear, high positioning accuracy. In addition, the screw rod and the motor are conveyed by synchronous belts, with relatively small rotation circumference and high accuracy, which can avoid the error caused by the two guide rails not parallel during the front and rear operation of the paper pusher, ensuring that the cutting and left and right are consistent. The paper pusher adopts an inverted trapezoidal design to prevent the paper pusher from deforming under long-term impact. 3. Dual-mode paper pressing method: mechanical foot pedal + electronic paper pressing switch, mechanical foot pedal is convenient for cutting uneven paper, horse nail booklet, printing tilt, and high-precision products. Electronic paper press switch: It can be continuously pressed without having to step on it all the time. Especially when cutting horse nails, you can first use mechanical foot pedals to position the text of the horse nails and then use the electronic paper press switch to continuously press the paper. 4. This machine uses a 10-inch smart color touch screen and a button operation: the 10-inch touch screen can be selected according to your habits to view and operate easily, and has quick buttons; 5 data can be stored according to your needs, and the size positioning of the paper pusher can be moved with one click when needed; the paper pusher can be: fast and slow fine-tuned to complete the paper pusher movement, which is convenient to operate; 15-channel grating protection is used, which is the only absolute safety in China; the motherboard chip is stable by the American Microchip Company (microchip Company) program; and the depth of the cutter is adjusted with one-click. 5. The paper pressing method of dual hydraulic power system (multi-channel oil sealing for oil cylinder) ensures the pressure of paper pressing from top to bottom, and does not deviate; the paper cutting uses a direct linkage of the oil cylinder to reduce pressure waste, and is full of power; multiple oil seals will not contaminate the office space due to oil leakage. 6. Ultra-silent design: The sound is small when cutting, avoiding disturbing the public; Serpentine blade: According to the heavy machine design, the blade has high accuracy and is not easy to run. Replacement tool bar device: When replacing tool bar, you do not need to use tools to replace it. 7. Reminder tool change maintenance function: In order to improve the service life of the machine, when the cutting reaches 3,000 dollars, the display automatically changes to remind tool change maintenance. able.

4. Triple protection design: 1. Adopt 15-channel grating protection, higher detection density, and all-round protection. The motherboard and optical control chips are technology of the American Microchip Company, and the program is stable. 2. Integrated relay board protection device to increase safety factor and stabilize machine performance. 3. Dual-cut switch mode. Triple protection has higher safety and stronger stability, and there will never be any situations such as falling knife. Passed the ISO14001 environmental management system certification certificate and the ISO9001 quality management system certification certificate.

Technical parameters:

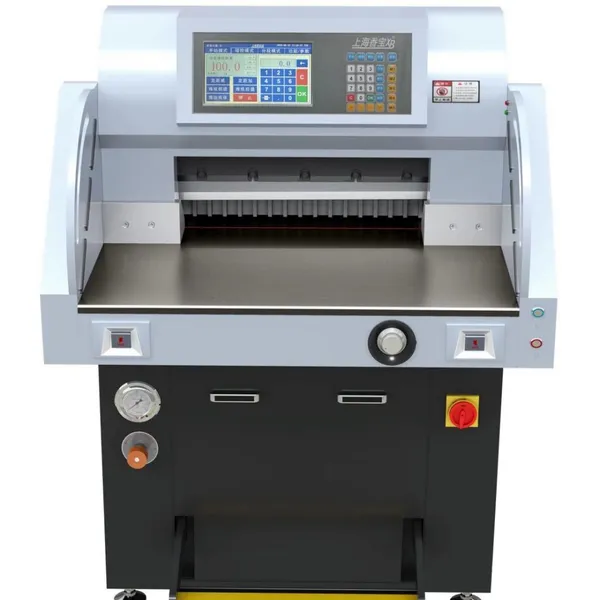

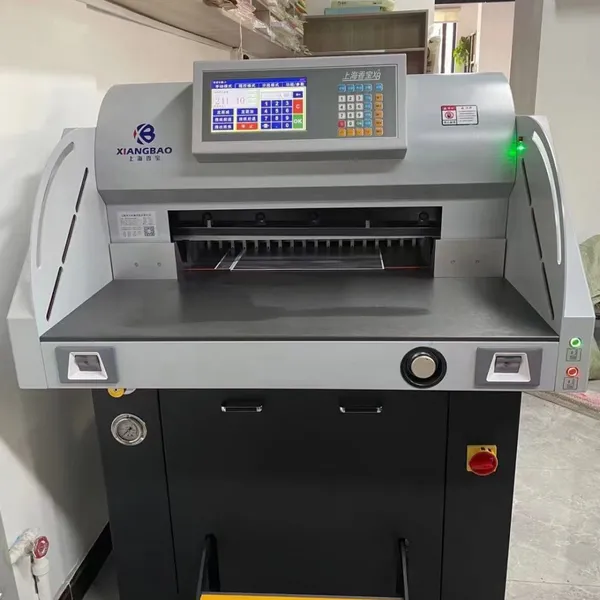

Product model: Shanghai Xiangbao XB-AT651-09EP dual hydraulic ultra-quiet paper cutter

Display mode 10-inch touch color screen + button

Cutting size 30mm-670 mm

Paper feed width 670mm

Paper cutting thickness 80mm

Cutting accuracy ±0.3mm

Control mode Program control + CNC + segmentation

Paper cutting method Hydraulic system/2.2kw

Paper pressing method Hydraulic + mechanical foot pedal + electronic paper pressing switch

Paper pushing method Double guide rail + ball screw

Photoelectric protection 15-way grating all-round protection

Power supply parameters AC220V/total 2.2kw

Weight 440kg

Gross weight 530kg (volume conversion weight is about 570 kg)

Machine size: 1450*1160*1500mm

Packing size: 1610*1310*1620mm
