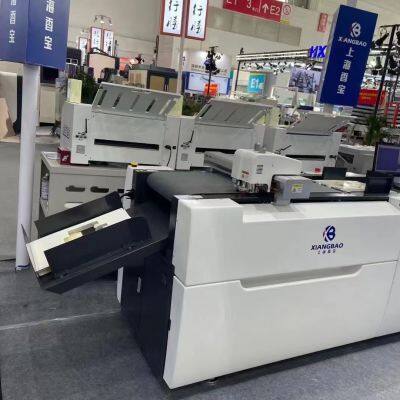

Shanghai Horizon 6040 Fully Automatic Digital Proofing Die Cutting Machine

Product Description: Description:

The fully automatic digital proofing die-cutting machine adopts fully automatic paper loading suction cup and fully automatic lifting feeding platform.

With various types of cutting tools, it can complete full cutting, half cutting, crease, marking and other production processes at high speed and precision.

It is suitable for proofing and small-batch personalized customization in the graphic and text quick printing, advertising logo, printing and packaging industries.

It is a cost-effective intelligent equipment that can meet all your creative processing needs. Features:

01 High-frequency electric knife: cuts more materials and cuts thicker thickness to meet the needs of different customers

02 Integrates intelligent cutting/crease/drawing functions to meet all your creative processing journeys: cut labels of any shape, cut and crease cardboard boxes of any box type

03 Accurate automatic positioning system: with high-definition CCD camera, it can realize automatic and precise positioning of various materials, automatic cutting, solve problems such as inaccurate manual positioning and print deformation, so as to achieve simple and precise cutting purposes

04 QR code management system: Scan the QR code to quickly read the cutting task 05 Self-lifting loading system: fully automatic loading system to make production more efficientModel: 600-400

Cutting area (length * width) 600MM*400MM

Floor space (length * width * height) 2350MM*900MM*1150MM

Cutting tool Creasing knife, half cutting knife

Cutting material Car sticker, self-adhesive paper, cardboard, PP paper, reflective material

Cutting thickness ≤2MM

Feeding system Vacuum suction cup

Maximum cutting speed 1000MM/S

Repeat accuracy ±0.1MM

Computer configuration: Computer configuration i5, 10400

File format PLT, DXF, HPGL, PDF, EPS

Voltage 200V±10%50HZ

Machine power 3.5KW

Dimensions: 2170*1100*1480MM

Machine net weight: 300 kg

Shipping volume converted weight: 600 kg (volume 1280*1000*560)
