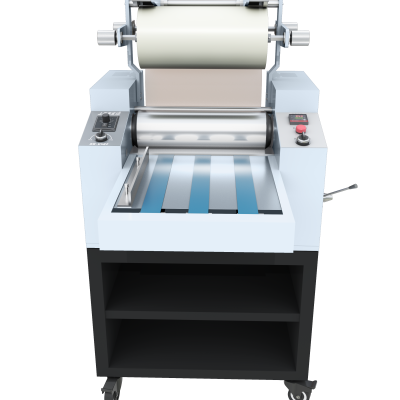

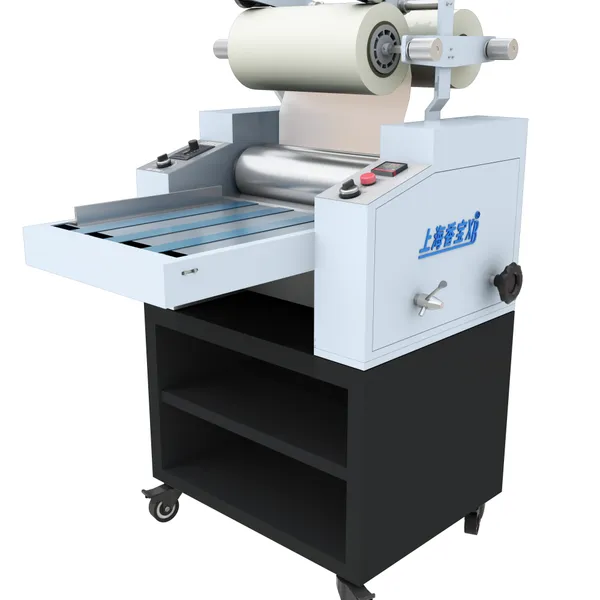

Shanghai Xiangbao XB-V58T Heavy Duty Laminating Machine

Product Description: Machine Features

1. Function: Professional multi-functional laminating machine, can do a variety of work such as thermoplastic cold lamination, low temperature cold lamination and hot lamination, suitable for graphics, printing, photo studios, etc. High-precision 10cm hard chrome-plated steel rollers provide rapid and even heating for optimal lamination performance. 1. Speed: Low-speed paper feeding facilitates film threading, and 9-speed electronic speed adjustment accommodates operators of varying skill levels, with speeds reaching up to 5 meters per minute (m/min) to meet the demands of batch production.

2. Anti-curl: Gravity-driven anti-curl design with multiple adjustment levels effectively resolves curling issues on single-sided lamination of materials of varying thicknesses.

3. Slitter: Pre-laminated film slitting design allows for quick slitting of excess pre-laminated film during the lamination process.

4. Perforating knife: Dotted lines on the pre-laminated film allow for rapid slitting after lamination. This dual-function feature enables the machine to meet finished product requirements in one go. The dual-film mounting system allows for the installation of two rolls of film at once, allowing for easy switching between glossy and matte films. This machine can accept either one-inch or three-inch core film, ensuring a wide range of applications.

5. Rewinding: The finished product can be reverse-wound during lamination, enabling single-operator lamination, increasing efficiency and saving costs.

6. Thickened aluminum backing: Utilizing a thickened integral casting, the backing is vertically angled at 90 degrees to prevent deformation and allow for easy adjustment and movement.

7. Belt conveyor: Addressing the shortcomings of traditional processes, the use of belt conveyor ensures stronger adhesion between the material and the belt, reducing friction during double-sided printing and ensuring a better finished product.


   Technical parameters:

   Paper feed speed 0.5-5mm

   Film thickness 0.1-4mm

   Paper feed width 350mm

   Steel rod diameter 100mm

   Power supply parameters 220V/900w

   Weight 100KG

   Machine size 980*780*1390mm

   Packing size 950*760*1200mm
