Product Description:

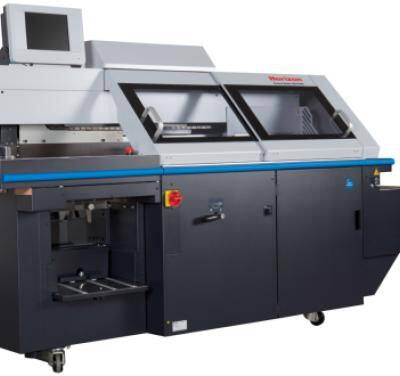

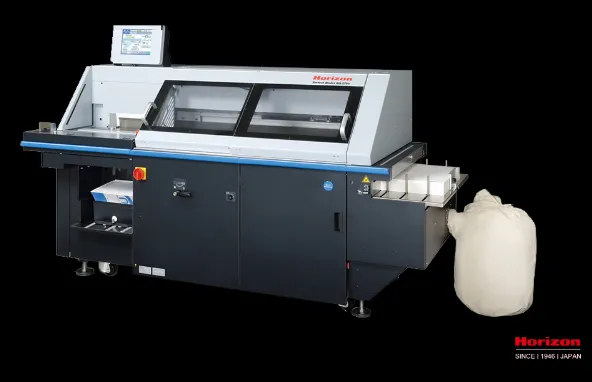

The Horizon, a simple-user interface, high-precision perfect binder, combines professional perfect binding technology with advanced automation, enabling even inexperienced operators to produce high-quality books.
Its simple user interface and precise automation enable short or no setup times.
Quick setup: All settings are completed by entering book block and cover information into the 10.4-inch color touchscreen. Changing from A4 to A5 format is completed in under 10 seconds.
High-speed perfect binding: At a maximum speed of 500 books per hour, books up to 50 mm (2.0") thick can be produced. The powerful pressing and cover creasing parts of the precise binding are comparable to those of large industrial perfect binders, thus achieving precise and strong binding results. A device for measuring the thickness of various perfect binding books is standard equipment. After one book is run, another book of different specifications can be measured and the data is transmitted to the perfect binder, and the system begins to convert. This allows true on-demand production, and the thickness of each book produced can be different. The BQ-270VC reduces the production cycle time (per book) by 30% compared to traditional models, and provides various perfect binding and higher production efficiency.
Technical parameters:
Machine model BQ-270VC
Applicable book core size (135×105) - (320×320) mm
Book thickness 1-50mm
Cover size (135×230) (the front part of the bookcase can reach 120mm, the back part of the bookcase can reach 110mm) - (320×660) mm (the front part of the bookcase can reach 350mm, the back part of the bookcase can reach 310mm)
Machine operation speed is up to 500 times/hour
glue book temperature 120 degrees to 180 degrees (when the glue temperature of BQ-270VC is 170 degrees or lower, service technicians need to make necessary settings.)
Milling cutter method Milling back binding, no milling back/padless binding triple-layer milling cutter
machine consumes 3 phases 200/220/400V, 50/60Hz
Cover weight range 82-302g
Cover paper maximum height 70mm
Preheating time about 60 minutes
Machine size 2.5*1.3*1.6mm
Machine net weight 850KG
Machine with packaging weight 1030KG
Transformer weight 100KG
