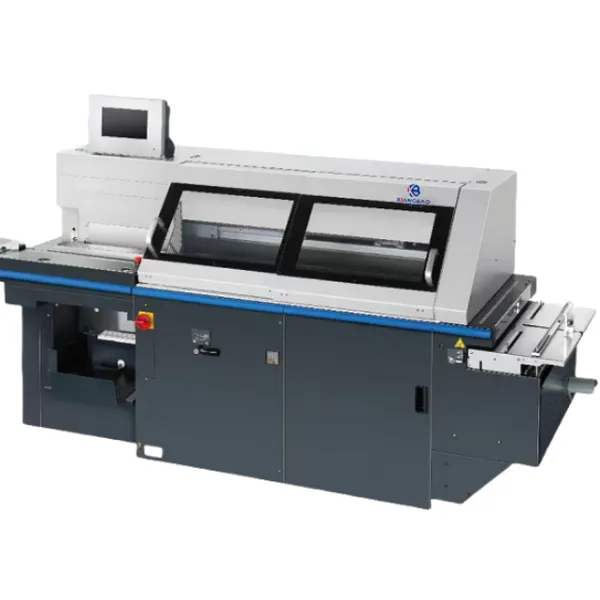

Shanghai Xiangbao XB-AR280A Fully Automatic Intelligent Binding Machine

Product Description:

Machine Features:

Fully automatic single-head gluer, easy to operate, simple and clear, automatic cover on the right side, reduce changes in manual operation book size, and automatic adjustment of equipment positioning and adjustment of equipment does not require manual adjustment.

Fast speed, positioning is completed within one minute, A4-A5 size switch can be completed within 10 seconds, glue thickness can reach 50mm (2.0 inches) and is suitable for 1~1000 small batch operations in this variety, up to 500 volumes/hour, actual measurement exceeds 400 volumes/hour, automatic indentation on the cover with side glue glue, the glue quality is firm and exquisite, comparable to the humanized operation of large-scale glue installation machines, high-precision automatic adjustment, energy-saving and environmentally friendly, short-version quick printing glue installation tool SI-270C thickness electronic ruler (standard equipped) automatic thickness measurement, very convenient.

The Horizon i2i system can be connected to the JDF data flow system.

Technical parameters:

Binding mode: Milling back binding, no milling back/no liner binding

Number of book clips: 1

Book core size: Maximum 320x320mm

Minimum 135x105mm A4/A5/A6/B5/B6

Book thickness: 1-50mm

Cover size (unfolded): Maximum 320 x660mm Minimum 135 x230mm

Cover weight range: 82-302gsm

Cover stacking height: Maximum 70mm

Main machine speed: Maximum 500 times/hour

Voltage/frequency: 3-phase 380V50HZ, 3-phase 220V60HZ

Total power: 9KW

Machine size (approximately): 2435*910*1545mm

Machine weight (approximately): 900kg
