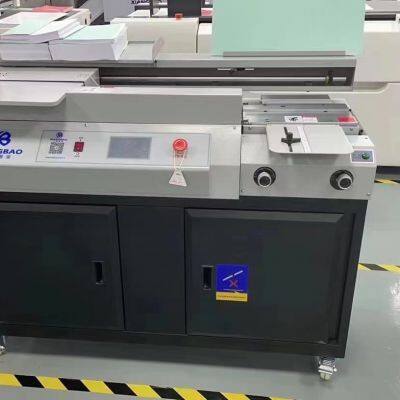

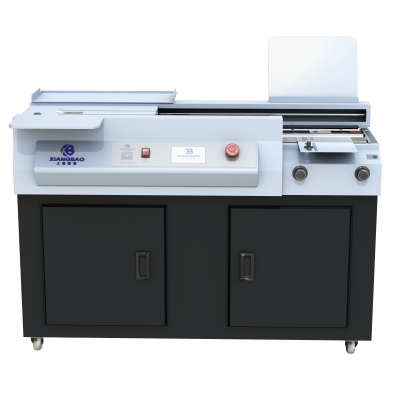

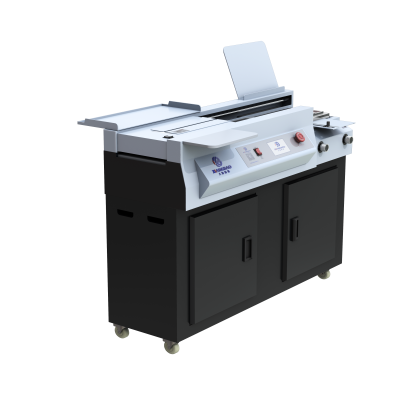

Shanghai Xiangbao XB-AR900H (Economy Edition 2.0) Binding Machine

Product Description:

Introduction to the characteristics of the machine.

Humanized design: an integrated bookkeeping desk, which is more convenient to put paper and improveing work efficiency.

Flip-type book shelving space-saving guide rail design: This machine adopts an open rail design, which is more convenient to put into the cover.

The guide rails are supported by multiple points and run relatively smooth. The diameter of the guide rail is up to 20mm, durable and not easy to deform.

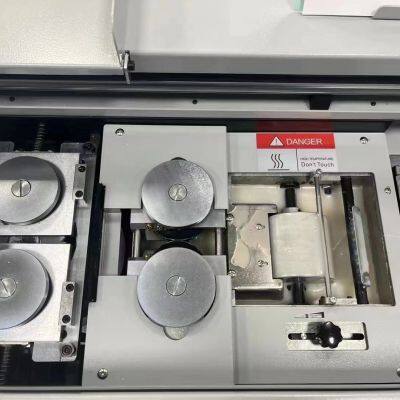

Milling cutter : Use 24 round cutter plus small milling blade cutter mode to ensure that every piece of paper in the book will be woven without missing milling, making the glue effect better. The V-shaped small milling cutter is made of tungsten steel, which is not easy to wear, has a high glue affinity, and has a better glue penetration effect.

Glue groove area: The integrated glue groove is larger, and the glue capacity is relatively large, which reduces the frequency of glue addition during work，Improves working efficiency

color touch screen: more convenient to operate, set the temperature and can be input directly. The multi-key screen is centrally controlled, making it more convenient

clamping table: it adopts a vertical parallel rising design, and there will be no more glue on one side and less glue on the other side and uneven base glue on the bottom, and the binding effect will be stable. The motor is directly connected to the clamp table structure, which is full of power. The knife plate clamping adopts a full tooth structure to be uniformly subjected to a uniform force, and the 2 sides and 4 corner molding effect is good.

The independent square and round corner adjustment can be adjusted according to the thickness of the book to ensure that the packed book can be bound to a right angle regardless of its thickness. Clear edges and corners.

Technical parameters:

Display method 5-inch color touch screen

Binding length 320mm

Binding thickness 55mm

Binding speed 320book/hour

milling cutter method 24-blade round cutter  plus small milling cutter

voltage/power 220V/1200W

Heating time ≥25 minutes

Net volume 190KG

Gross weight 220KG

Machine size 1215*705*1240mm
