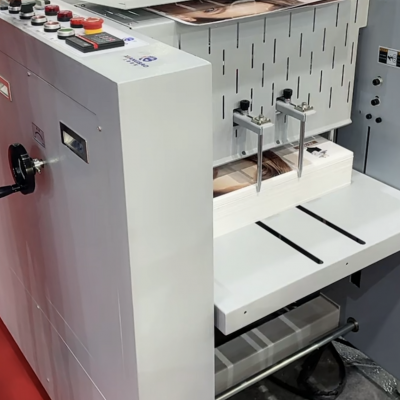

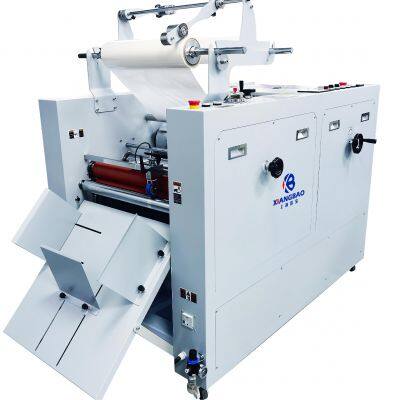

Shanghai Horizon XB-Z60TF Fully Automatic Hydraulic Laminating Machine

Product Description:

Machine Features: This machine is an automatic coating machine developed according to market demand. The operating system integrating PLC, frequency conversion and pneumatic multi-functions can realize automatic paper feeding, automatic edge laying, automatic slitting and other functions. It is multi-energy for one machine, easy to operate, and can be operated by one person, effectively reducing costs and improving work efficiency. It is suitable for small and medium-sized printing factories, graphics, enterprises, institutions, governments, etc.

 Functions and configurations:

1. The paper feed adopts a six-sucking nozzle Feida paper feed design, and the paper feed runs stably. Release hands to save labor 2. The pressure method is adopted: automatic hydraulic system, one-button pressurization. 3. The stick adopts hard ferry process, mirror polishing, and has a diameter of 200mm, which is suitable for high-demand peritoneum. The rubber roller is made of silicone imported from the United States, with a diameter of 135mm and a higher flatness. 4. Automatic edge-to-end: It is best to tie edges 1-5mm according to the set edge-to-end length to prevent the film from sticking to the rubber roller, making it more convenient to cut. 5. Film hanging bracket: Two rolls of film can be hung at the same time, and the optical and sub-sub-flexible switching can be saved to save replacement frequency. Applicable to 1-3 inch core hanging film specifications. 6. Photoelectric positioner: It can automatically control the length of paper edges, automatically detect whether there is paper, automatically stop running without paper, and position the paper slitting position function. 7. Heating method: Infrared internal heating is used to heat conduction, the heating is uniform, the surface temperature is measured, the temperature is more accurate, and the temperature is adjusted according to the needs of the peritoneal body. 8. Rice Noodles. Slitting Knife: Place one end of the rice Noodles knife to drill holes, which makes it easier to cut when covering the finished paper. Slitting knife: You can cut the excess long film according to the adjustment position of the slitting knife, and the excess film is left on the film release roller. 9. Anti-bending device: The coated paper is not easily deformed after being shaped and sliced by the anti-curling device, and has a high flatness of 10. Pneumatic slitting system: Users only need to enter the paper size on the touch screen to achieve automatic slitting of the coated paper. 11. Paper collection table: The cut paper will be sent to the paper collection table. Easy to collect paper and saves labor. 12. The integrated structural design makes the equipment run smoother and extends the service life of the equipment. 13. Schneider frequency converter realizes infinite speed. Users can change the device's operating speed instantly and ensure the device's running smoothly. 14. Adopt PLC programming control system, with accurate control and high stability.

Technical parameters:

laminating width 520mm,

laminating thickness 157g-400g

laminating speed 12m/min

steel rod diameter 200mm

paper loading capacity 400mm

laminating length 500mm,

maximum temperature 0-140°c,

display LCD color touch screen

heating power 3900w,

motor AC motor (three-phase 400w)

Power supply AC220/50,60hz

Machine size (approximately) 1870X980X1501mm

Packaging size (approximately) 1650*1060*1450mm

Weight (net weight) 700kg
