Shanghai Donsun Brand AC DC Mos Tube Igbt Tube Industrial Grade GTAW TIG Welding Machine WSE-250, WSME-350/500

Shanghai Donsun Brand AC DC Mos Tube Igbt Tube Industrial Grade GTAW TIG Welding Machine WSE-250, WSME-350/500 thumbnail-1
Shanghai Donsun Brand AC DC Mos Tube Igbt Tube Industrial Grade GTAW TIG Welding Machine WSE-250, WSME-350/500 thumbnail-2
Shanghai Donsun Brand AC DC Mos Tube Igbt Tube Industrial Grade GTAW TIG Welding Machine WSE-250, WSME-350/500 photo-1
Shanghai Donsun Brand AC DC Mos Tube Igbt Tube Industrial Grade GTAW TIG Welding Machine WSE-250, WSME-350/500 photo-2
US$ 1000 1 Set
US$ 200 ≥2 Set
Key Specifications
Get Latest Price
Type:
TIG Welder
Style:
Vertical
Electric Current:
DC
Contact Supplier Request Quote Chat Now
Shanghai Donsun Welding Group Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type TIG Welder
Style Vertical
Electric Current DC
Cooling Way Air Cooling
Work Form Other
Frequency Range High Frequency
Transport Package carton
Specification customize
Trademark donsun
Origin China

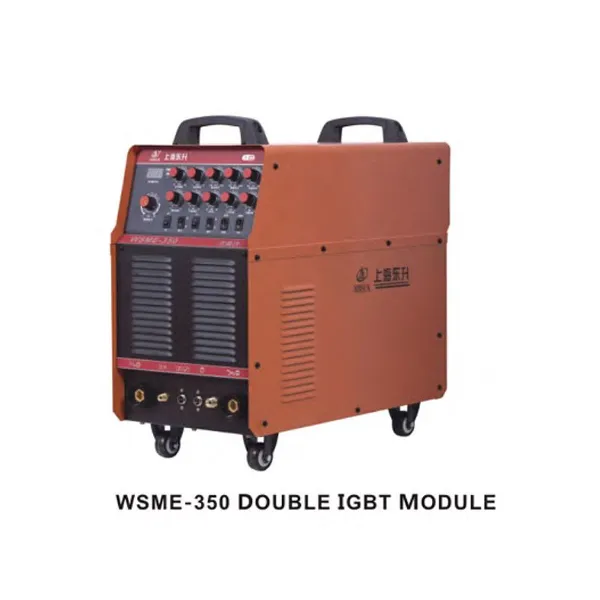

WSE-250, WSME-350/500



TIG AC/DC



WSE-250 MOSFET

WSME-350/500 IGBT MODULE

AC/DC, suitable for aluminum, carbon steel

Stainless steel etc.



Inverter IGBT technology

Over heat/over current protection

HF ARC

Intelligent air cooling



Model

TIG-350AC/DC

TIG-500AC/DC

Rated   input voltage (v)

3P   380V±15%

3P   380V±15%

Input   frequency (HZ)

50/60

50/60

Rated   input capacity (KVA)

10.3

23

Rated   input current (A)

13.6

35

Duty   cycle (%)

45

60

Current   range (A)

15-310

20-500

No-load   voltage(V)

67

72

Pulse   Frequency (HZ)

0.2-500(DC)/0.2-20(AC)

0.2-500(DC)/0.2-20(AC)

Pulse   duty cycle(%)

1-99

1-99

Ac   frequency(HZ)

20-150

20-150

AC   width

-40-＋40

-40-＋40

AC amplitude

-20-＋20

-20-＋20

Current   slope up time(S)

0-15

0-15

Current   slope down time (S)

0-15

0-15

Pre/post   flow time(S)

0-60

0-60

Efficiency   (%)

85

85

Power   factor

0.90

0.90

Weight   (KG)

29

49

Dimension(mm)

610*310*620

620*380*690





Model

TIG-250 AC/DC

Rated input voltage (V)

1P 220V±15%

Input Frequency (HZ)

50/60

Rated input capacity （KVA）

6.2

Duty cycle(%)

40

Current range (A)

20-185

No-load voltage (V)

56

Working voltage (V)

18

Pre-gas time (s)

0-2

Pulse duty cycle(%)

20-80

Loss time(S)

0-5

Pre/Post flow time(S)

2-10

ARC-initiating

HF

Efficiency (%)

85

Power factor

90

Weight (KG)

23

Dimension (mm)

498*328*302
