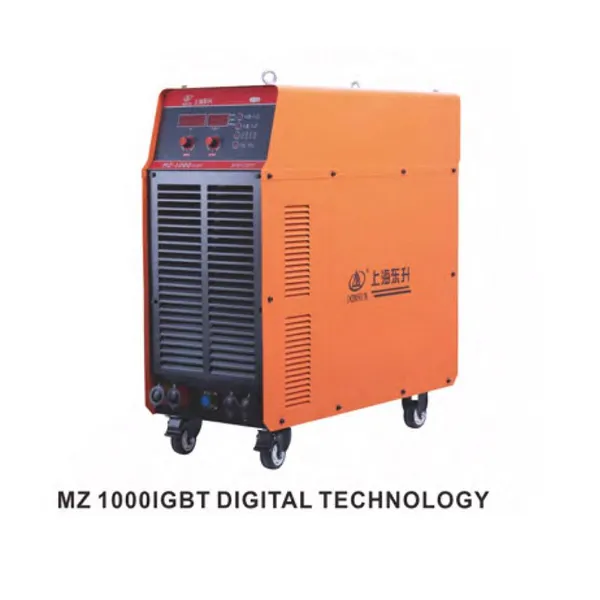

MZ-630IGBT/1000IGBT/1250IGBT series
Multi-function, high efficiency
Multi-function, high efficiency
Three phase, IGBT control DC SAW power, on wheels, fan cooled
· The circuit adopts PWM feedback control technology, stable arc,
quick arc pilot, high arc penetration, deep melting pool and smooth
welding line.
· The machine can work as STICK,MIG, SAW, gauging power source
·Very smooth DC output, PLC control, energy saving, it can save 30%
energy compared with traditional equipment
The welding cart has its own control system
·The spool SAW wire can be used in this equipment.
· The automatic wire feeding attributes high speed wire feeding.
Perfect with thermal overload protection.
· The machine can do different sorts of welding, like flat welding, fillet
welding, bevel welding and etc
Inverter technology
Intelligent air cooling
Over voltage/Over current/Over heat protection
ARC/SAW/ARC GOUGINGG
Model |
MZ-630IGBT |
MZ-800 IGBT |
MG-1000IGBT |
MA-1250IGBT |
Rated input voltage(V) |
3p 380V±15% |
3p 380V±15% |
3p 380V±15% |
3p 380V±15% |
Input Frequency(HZ) |
50/60 |
50/60 |
50/60 |
50/60 |
Rated input capacity （KVA） |
27 |
44 |
55 |
81 |
Rated input current (A) |
52 |
83 |
105 |
123 |
Duty cycle(%) |
100 |
100 |
100 |
100 |
No-load voltage(V) |
90 |
90 |
90 |
90 |
Current range (A) |
60-630 |
60-800 |
60-1000 |
60-1250 |
Voltage range(V) |
20-50 |
20-50 |
20-50 |
20-50 |
Efficiency (%) |
92 |
92 |
92 |
92 |
Power factor |
0.87 |
0.87 |
0.87 |
0.87 |
Rod diameter(mm) |
Ø1.6- Ø3.2 |
Ø1.6- Ø6.0 |
Ø1.6- Ø6.0 |
Ø1.6- Ø6.0 |
Weight 9KG) |
47.2 |
77.2 |
87.5 |
105 |
Dimension (mm) |
670*365*680 |
850*380*940 |
850*380*940 |
850*410*960 |
