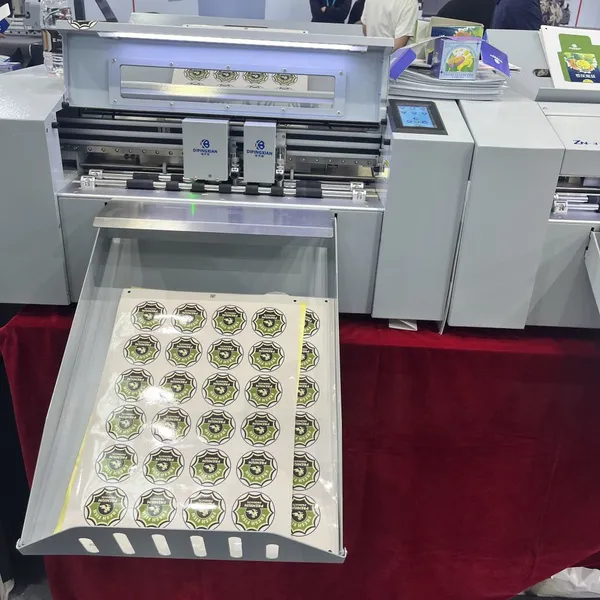

Shanghai Horizon XB-ZN-370plus Double-heads Simultaneously Cutting Ultra-high-speed Die-cutting Machine
- Shanghai,Ningbo,and others
- 5 days
You May Like
-
Shanghai Horizon XB-AR10000H Heavy Duty Glue Binding Machine
-
Shanghai Xiangbao XB-AT551-09 Dual Hydraulic Ultra-quiet Paper Cutter
-
Shanghai Horizon XB-Z60TF Fully Automatic Hydraulic Laminating Machine
-
Shanghai Xiangbao Intelligent Die-cutting Machine
-
Shanghai Horizon XB-AR10000H Flagship Edition Automatic Book Binding Machine
-
Shanghai Horizon XB-AT552-09EP Dual Hydraulic Heavy Duty Paper Cutting Machine (with Blowing Beads)
Product Details
| Warranty | one year | Application | Paper Packaging Materials, Stickers Products | |
| Automatic Grade | Automatic | After-sales Service | service include | |
| Species | Die Cutting and Creasing Machine | Imprinting Type | Other | |
| Placing Form of Template | Other | Die Cutting Tool | Steel Blade | |
| Computerized | Computerized | Transport Package | carton box | |
| Specification | 350*800mm | Trademark | Shanghai Horzion | |
| Origin | Shanghai |
Product Description
Product Description:
Product Features:

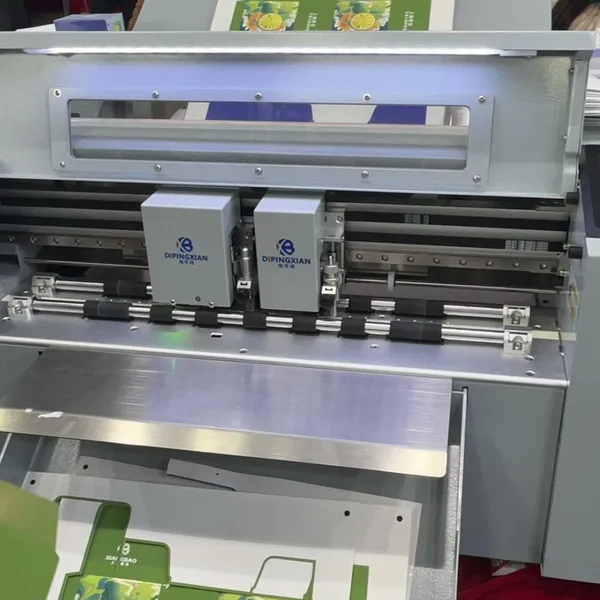

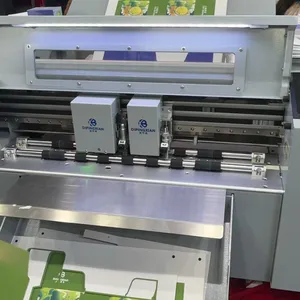

Double Blade Design:
Adopt a new double Blade Design, double Blades can cut at the same time, and the efficiency is doubled. At the same time, half-cut, full-cut , perforation , indentation, etc. can be completed in one go without secondary paper removal. At the same time, both blades are controlled by independent voice coil motor, and the cutting and indentation are independently controlled, so that the cutting and indentation force is controlled more accurately and the cutting and indentation effect is more stable. The double knife uses independent voice coil motor, which has a longer service life, improves the indentation cutting effect while effectively reducing the failure rate.
High-precision linear guide:
It adopts high-precision linear guide design to ensure the accuracy and stability of the machine's long-term operation. Reduce friction loss, reduce friction during operation, and improve the operating efficiency of the machine.: High-strength materials and optimized design can withstand large loads. Ensure the stability of the machine operation process. It adopts high-quality materials, which has high wear resistance and fatigue resistance, can withstand long-term high-strength operation, greatly increasing service life.
High-performance servo motors:
X and Y are controlled by high-precision overspeed servo motors, which are faster, have higher accuracy, smaller sound, and have better control and more accurate stability. The overspeed servo motor realizes closed-loop control of position, speed and torque: avoids the problem of stepping motor losing steps for a long time. It is suitable for occasions where high-speed response requirements are required. High-precision trolley The cutting of the cutting material is controlled by a voice coil motor (voice coil motor). The voice coil motor has high precision and high speed, and is faster, durable, wear-resistant and long service life. In this way, the cutting material's cutting strength is controlled more accurately and more stable, and it is not easy to have inconsistent depth and shallow, ensuring the pass rate of the finished product, effectively eliminating the waste of materials, and realizing unattended.
High-resolution CCD camera:
This machine uses a high-resolution CCD high-definition camera, which is used to accurately detect marking points (corner lines are compatible with dots), and can accurately detect marking points on color and reflective materials. It can be typesetted according to customer needs, thereby saving materials and reducing production costs. It can also support lighting brightness adjustment. The light brightness can be adjusted freely according to different materials to increase the accuracy of recognition. The camera can scan 4 marking points in less than 3 seconds, saving production time, improving work efficiency, and reducing costs.
The QR code system can automatically read the QR code printed on the material. You only need to add the QR code when making the file and print out the QR code file. The machine will automatically read the QR code file and accurately cut it. This function can effectively reduce the time to find the file and improve work efficiency. ZN-350 can also support network QR code reading. When making QR code files, save the QR code file to the specified computer folder. Select QR code to read in the plug-in. The machine will automatically read the specified QR code folder and automatically find the QR code for accurate cutting. This will improve work efficiency.
Intelligent software:
The operation software adopts CDR, AI+ plug-in mode, generates corner lines and dot marking points with one click, and double marking points are recognized. The plug-in automatically generates marking points based on the size and content of the paper, typed in one click, and generates outlines with one click. The software automatically optimizes the cutting path to facilitate user operation. Simple and fast, improving user work efficiency. At the same time, the machine optimizes the paper pickup method. When the paper pickup fails, the paper will be automatically returned. Repeat the paper feed three times again to ensure the smoothness of the paper feed.
Multiple transmissions:
The operation software adopts remote control of network cable, WIFI, USB disk, and USB data cable. It can support a computer to connect multiple machines to synchronously send operations. Up to 100 machines can be connected at the same time. One machine can also use multiple computers to send remotely. Each computer can send and operate the machine separately without a special computer operation. For graphic advertising stores, the machine location can be placed at will, and remotely sent by network ports and WIFI, and does not use traditional USB data cables to connect the machine, making it more convenient to use. You can also use a USB drive to operate offline without using a network or USB cable. Through the printer, marking points and patterns are printed out, and the machine automatically feeds paper, automatically positions, automatically cuts, and automatically outputs paper, realizing automatic operation.
Humanized function design:
It has a count skip recording function. When the user puts more materials into the machine for cutting, the user does not need to watch the machine cutting and the machine will count the quantity itself . If there is a material that fails to scan , the machine will automatically spit out the material, and the scanning failure will be recorded in the settings. The user only needs to check the number of skipped parts after the machine is cut, which can determine whether there is any problem with the cutting, which saves customers time and realizes unmanned duty of the machine. Improve work efficiency and high-quality materials: The mainboard chip uses ST imported chip, which has high performance, low power consumption, durability and very good stability.
The X and Y running belts are made of imported Pioneer belts, which have good transmission stability, higher accuracy, durability and very strong stability. The Sharp sensor is used to have high sensing sensitivity, long life and the sensor status can be observed in the machine settings. When problems arise, it is convenient for users to discover problems and repair them in time. The paper feeding system adopts a thickened barrier gauge with a thickness of 9 mm. In the case of large batches of paper removal, the barrier is not easy to loosen, and the paper is not easy to skew and makes sure the paper feeding is totally smooth.
Technical parameters:
Model ZN-370plus
Display mode 4-inch color capacitive touch screen
Material cutting range Width: 200-350mm.200-800mm (increased length requires self-extension of the paper tray)
Number of cutter heads Double cutter heads Tool Engraving knife, indentation
Mechanical precision 0.01254mm
Fastest cutting speed 1600mm/s (double cutter heads cut at the same time, double the efficiency)
Maximum pressure 1000g
Minimum cutting pattern 5mm diameter circle
Thickest material that can be cut 350g
Feeding time 2 seconds
Transmission method Network cable, WiFi, U disk, USB data cable
Paper loading capacity 180 sheets (0.2 thickness)
Language Chinese, English, Spanish, Danish, Turkish, Hungarian
Voltage Support 110V/220V (automatic voltage conversion)
Operating software AI (CS6-2023), coreidraw (x4-x8.2017-2023) (continuously updated)
Operating environment Temperature: 10° to 35°
Humidity: 35 to 75% RH
