Automatic Motor Stator Winding Machine

Stator High Precision Wire Winding Machine

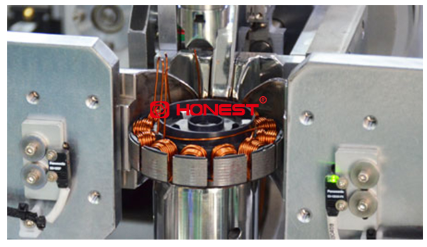

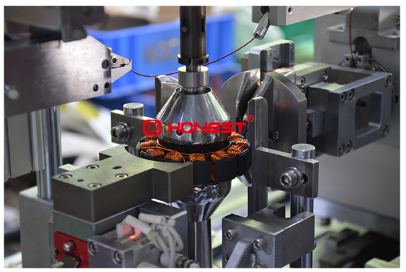

High-precision stator winding machines, flying fork outer winding equipment, double-station design, compact structure, small size, fast running speed, wide range of applicable wire diameters, neat wire arrangement without damage. The equipment process includes loading, hanging, winding, arranging, pulling, trimming, discharging, etc.

Product Details

Advantages

01 Double-station winding, improving efficiency.

02 Achieve precision wiring, no wire damage, and can reserve wire ends and tails.

03 Adopts flexible and modular design, with clean appearance and versatile structure, offering broader compatibility.

04 Achieves wire head and tail insertion into the insulation frame slots and straightens the wire ends, with fully automatic wire cutting.

05 Upper and lower wire routing can operate independently, meeting various wire arrangement requirements, and better accommodating product diversity.

06 Dual-station design allows for independent operation of left and right stations, as well as synchronized operation, for convenient maintenance.

Equipment Parameters
