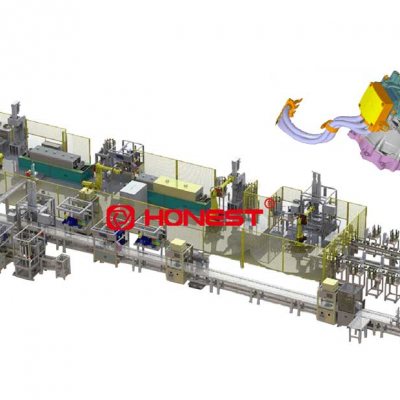

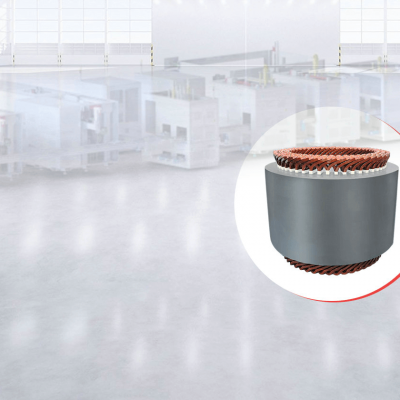

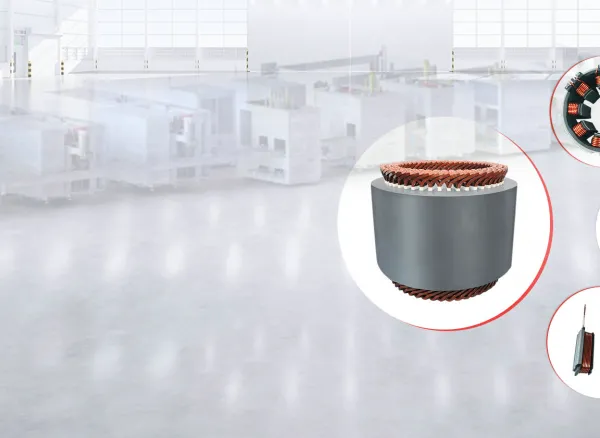

Drive Motor Stator Production Line
The main processes of the new energy drive motor stator assembly production line are: insulation paper inserting, loading, laser marking, wire making machine: straightening, insulation removal, 2D/3D forming, coils inserting and wire cup molding assembly: wire cup inserting, wire expanding, stator wire twisting, end cutting, stator welding, BUSBAR inserting, welding, performance testing, wire cup insertion mechanism and ground rail, etc.
Product Details
Advantages
01 Suitable for stators with up to 6 wires and 12 layers.
02 Modular design allows matching the number of equipment to different production capacities, enabling quick expansion with low investment.
03 Flexible wire making, equipped with wire making molds >36 types, and the fixture library can be automatically switched.
04 Key components are all processed independently by precision equipment, and life management is implemented.
05 Real-time traceability of production data, upload and download, interfacing with MES; equipped with facial recognition system.
06 Standard parts are all international brands.
Equipment Parameters
| Production efficiency | 45S/PCS (6 layers and 48 slots) |
| Voltage | AC three-phase 380V |
| Air Pressure | 0.4-0.6MPa |
| Yield rate | over 99% |
| Power | 30KW |
| Utilization Rate | over 95% |
| Control Method | PLC bus control |
| Dimensions | 35000(L)*15000(W)*2500(H) mm |
If you are interested in automotive drive motor stator and rotor assembly lines, please contact us for expert advice and customized solutions.
