Tcore Integrated Inductor Winding Machine

Name: Tcore Integrated Inductor Winding Machine
Brand: HONEST
SKU: 172825946
Availability: InStock

US$ 100 - 10000 MOQ: 1 Piece

Key Specifications

Brand Name:

HONEST

Place of Origin:

China

Shenzhen HONEST Intelligent Equipments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

15 days

Brand Name HONEST

Place of Origin China

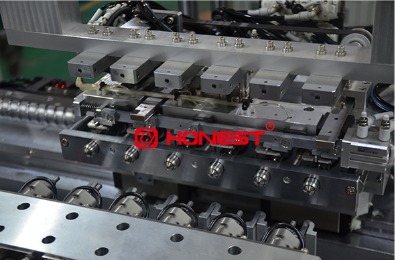

Tcore Integrated Inductor Winding Machine

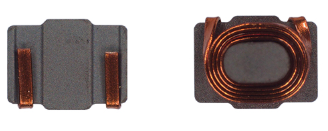

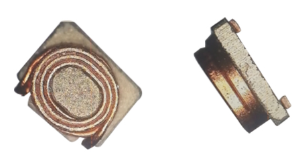

The process flow of the Tcore Integrated Inductor Winding Machine includes:

Magnetic core loading: Magnetic core Tcore vibration plate loading,

Winding: Flat wire is wound onto the magnetic core, using a bifilar winding technique, with hot air applied for self-adhesion as winding proceeds;

Wire Management: Arrange the wire neatly, trim any excess tail wire, and then solder it securely to the magnetic core.

Unloading: Discharge the product according to customer requirements.

Product Details

Advantages

01 Its servo motor uses bus control, and key components are manufactured in-house using precision equipment.

02 Standard parts are all sourced from international brands, with life-cycle management for key components.

03 Only 0.5 operator is required for operation.

04 The production capacity can reach up to 9000 pieces per hour.

05 The yield rate can reach above 99%.

06 Multi-axis simultaneous winding is possible.

Equipment Parameters

Production Efficiency	0.4 seconds/pcs
Yield Rate	More than 99%
Operating Rate	More than 95%
Required Number of Operators	0.5 Operators Required
Voltage	AC three-phase 380V
Air Pressure	0.4~0.6MPa
Power	4KW
Control Method	PLC bus control
Dimension	2500(L)1500(W)1900(H)mm
Application field	Smartphones, smart wearables, cars
